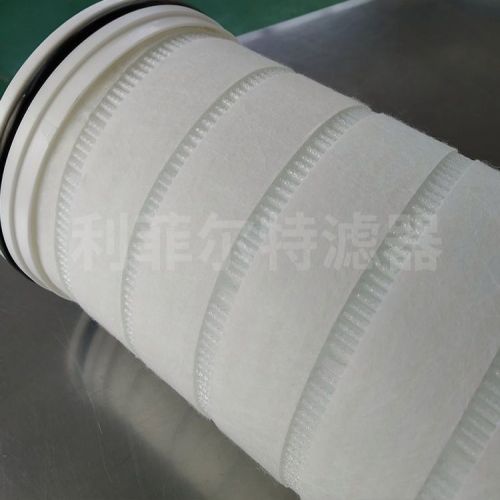

This filter has a large diameter of 6.5 inches /165 mm, and there is no central support skeleton, one end is open, the filter fluid flow mode is from outside to inside, the large diameter design of the filter element coupled with an increase in the effective filter area can greatly reduce the number of filters and reduce the shell size. PP microporous folding filter element adopts ultrafine polypropylene fiber membrane, ultrafine fiber has stable filtration accuracy, can effectively intercept small particles and colloidal debris, filtration efficiency up to 99.8%; The multi-layer structure design provides high contaminant space and filtration area, and has the characteristics of large contaminant amount and long service time. Due to its large flow rate and long filter life, it can reduce investment and labor costs in many applications.
Product performance characteristics
1. Allow high flow of media through the filter material, with the advantages of high efficiency, low pressure loss and long life.
2. The outside in inside out structure of the large flow filter element makes it easy to replace the filter element, while keeping pollutants blocked outside the filter element.
3. There is a pp support skeleton inside the filter element, which can withstand a pressure difference of 0.245MPa.
4. The β value of the filter element is more than 1000.
5. Multiple filter elements can be installed in the filter shell, which can use a wide flow range, whether it is started or continuous operation.
6. The filter element is durable and can also be configured with less and more economical filters.
Technical parameter
1. Technical parameters related to the replacement of 40 inch Lifeldt large flow water filter element
2. Filter material: polypropylene (PP), glass fiber;
3. Support/guide layer: polypropylene
4. End cover material: glass fiber reinforced polypropylene
5. Sealing ring material: ethylene propylene rubber
6. Filtration accuracy: 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
7. Maximum operating temperature: 82℃;
8. Maximum pressure drop: 3.4Bar at 82℃
9. Recommended maximum filtered water flow: 1300LPM
10. Caliber: 95/110MM
11. Outer diameter: 152MM
12. Total length: 1055/1060/1100MM
Application field
1. Replace 40 inch Lifeldt large flow water filter applications
2. Widely used in sewage treatment plants, power plants, RO security filtration, seawater desalination pretreatment, and pharmaceutical industry, biopharmaceutical industry API, solvent, water filtration;
3. Food and beverage industry: wine, mineral water, drinking water filtration;
4. Petroleum industry: oilfield water injection filtration;
5. Electronics industry: high purity water pre-filtration;
6. Chemical industry: filtration of various organic solvents, acids and lye,
7. Large reverse osmosis pretreatment filtration, effectively protect the reverse osmosis system.
