Automatic Brush Type Backwash Pipeline Filter Carbon Steel with 304 Screen, Municipal Sewage & Building Circulating Water Filter

Brush type self-cleaning filter

Product Introduction

The fully automatic self-cleaning filter is a precision equipment that uses a filter screen to directly intercept impurities in water, purify water quality, and protect other equipment in the system from normal operation. Water enters the self-cleaning filter body through the inlet, and due to intelligent (PLC, PAC) design, the system can automatically identify the degree of impurity deposition and send a signal to the discharge valve for automatic discharge. The fully automatic self-cleaning filter overcomes many disadvantages of traditional filtration products, such as small pollutant holding capacity, susceptibility to blockage by pollutants, the need to disassemble and clean the filtering part, and the inability to monitor the filter status. It has the function of filtering raw water and automatically cleaning and discharging the filter element. During cleaning and discharging, the system provides uninterrupted water supply, which can monitor the working status of the filter and has a high degree of automation. Covering various filtration precision requirements from 50 μ m to 3000 μ m, we provide customers with various water filtration equipment.

Working principle

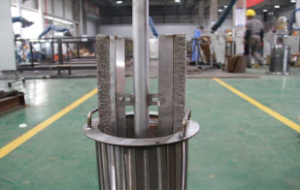

The water to be treated enters the body through the inlet, and impurities in the water deposit on the stainless steel wedge mesh, resulting in a pressure difference. By monitoring the pressure difference between the inlet and outlet through a differential pressure switch, when the pressure difference reaches the set value, the electronic controller sends a signal to the control valve and the driving motor, triggering the following actions: the motor drives the brush to rotate, cleaning the filter element, and at the same time, the control valve opens for drainage. The entire cleaning process only lasts for a few tens of seconds. When the cleaning is completed, the control valve is closed, the motor stops rotating, and the system returns to its initial state, starting the next filtering process.

Technical parameters:

Service pressure: 0.2 ~ 2.5MPa   Filter element material: 304, 316L, 2205

Service temperature: 80 C       Cleaning brush material: 304, 316L

Service voltage: 380V 50Hz       Cleaning method: brush type

Backwashing water consumption:W 2%  Cleaning time: 60s adjustable

Filtration accuracy: 50 ~ 5000 microns

Control mode: manual, automatic (differential pressure, time)

Tank material: Q235B, 304, 316L, carbon steel rubber lining

Customized according to different working conditions

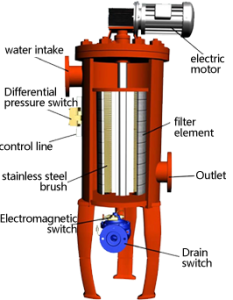

Self-cleaning filter structure diagram

Product Features:

1. Simple design structure:
2. Short backwashing time, high flow rate, and low pressure loss (<0.018MPa);
3. Self cleaning control methods are divided into differential pressure, time, and manual;
4. The equipment can be connected to the DCS system;
5. High precision filtration, stable effluent quality, and less than 1% sewage consumption;
6. The filter screen is for lifelong use and does not need to be replaced;
7. Long service life;
8. Can be applied to different raw water quality and water requirements;
9. Less vulnerable parts, no consumables, low operating costs, and simple operation and management
10. Automatic backwashing without interruption.

Application fields:

Gold treatment: continuous casting water, high-pressure phosphorus removal water, clean circulating water, cooling water full filtration, side filtration, nozzle protection, etc;

Electricity: turbine cooling water filtration, wet electrostatic precipitator circulating ash water filtration, dust reduction nozzle protection, cooling tower water full filtration and side filtration;

Agriculture: sprinkler irrigation, drip irrigation water treatment;

Others: steel, petroleum, chemical, electronics, textile, paper, food, pharmaceutical, automotive industries, etc.
