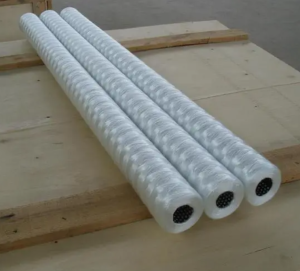

Economical PP Wound Filter Cartridge for Groundwater Iron and Manganese Removal and Surface Water Pretreatment
Product Introduction
This economical PP wound filter cartridge is a cost-effective industrial filtration component specially engineered for groundwater iron and manganese removal systems and surface water pretreatment processes, tailored to the practical filtration demands of water supply engineering, rural water improvement and industrial raw water pretreatment with the core advantages of low cost, high adaptability and efficient impurity removal. Crafted from high-quality industrial-grade polypropylene (PP) resin via an optimized precision spiral winding process on a sturdy rigid PP inner support core, it features an adhesive-free integral forming structure and a graded porous filtration layer designed for the characteristic impurities of groundwater and surface water. Its core function is to efficiently remove insoluble particulate impurities such as iron and manganese oxide flocs, sediment, silt, clay particles, suspended solids and organic debris from groundwater (after chemical oxidation for iron and manganese removal) and raw surface water, reducing the turbidity of the water body, preventing the blockage of subsequent iron and manganese removal filter media (e.g., quartz sand, manganese sand) and precision treatment equipment, and improving the overall efficiency of water treatment systems. Compatible with standard 10/20/30/40-inch single/multi-core filter housings (PP plastic/304 stainless steel) commonly used in water treatment, it complies with industrial water treatment material standards, has excellent structural stability and causes no secondary pollution to the water body. As an economical front-end filtration core, it is an indispensable filtration product for optimizing groundwater utilization, improving surface water pretreatment efficiency and reducing the overall operating cost of water treatment systems in small and medium-sized water plants, rural water supply projects and industrial raw water treatment scenarios.
Filtration Precision
This economical PP wound filter cartridge is designed with fixed nominal filtration precisions of 20μm and 30μm (the most suitable specifications for groundwater iron and manganese removal and surface water pretreatment), scientifically calibrated for the impurity removal characteristics of these two types of raw water. The 20μm specification achieves over 95% interception of solid particulate impurities with a particle size of 20μm and above, targeting fine iron and manganese oxide flocs, fine suspended solids and colloidal particulates in groundwater after oxidation, as well as low-turbidity surface water raw water, ensuring the fine filtration effect before iron and manganese removal filter media; the 30μm specification realizes over 90% interception of 30μm and above impurities, focusing on removing coarse sediment, silt, clay lumps and bulky organic debris in high-turbidity groundwater and surface water (e.g., river water, lake water after rain), playing a key role in coarse filtration pretreatment to reduce the load of subsequent water treatment links. Through an optimized winding process and uniform pore size distribution, both specifications ensure stable and consistent filtration precision under long-term continuous operation, without precision deviation caused by water pressure fluctuation and impurity scouring. The dual-precision fixed design abandons complex high-precision customization, further reducing the production cost while meeting the actual filtration demands of groundwater iron and manganese removal and surface water pretreatment, perfectly balancing filtration efficiency and economic applicability.
Flux
Under the standard water treatment operating conditions of 25℃ ambient temperature and 0.2MPa inlet pressure (matching the working pressure of small and medium-sized water treatment systems), the nominal flux of this economical PP wound filter cartridge is calibrated by physical specification, with the 30μm specification having a slightly higher flux due to its coarser precision, fully adapting to the large-flow water supply demand of groundwater and surface water treatment: the 10-inch model (20μm: 15-20 L/min; 30μm: 20-25 L/min), 20-inch model (20μm: 30-40 L/min; 30μm: 40-50 L/min), 30-inch model (20μm: 50-60 L/min; 30μm: 60-70 L/min), 40-inch model (20μm: 70-80 L/min; 30μm: 80-95 L/min). The large-flux design is specially optimized for the continuous water supply characteristics of groundwater and surface water treatment systems, supporting 24-hour uninterrupted operation and multi-core parallel use (the total flux can be linearly scaled up by increasing the number of cartridges) to meet the water treatment demand of small and medium-sized water plants, rural water supply networks and industrial raw water lines. The optimized internal flow channel structure with low winding density minimizes water flow resistance for both specifications, ensuring stable flux during the service life and avoiding insufficient water supply of the treatment system caused by flux attenuation, while the large flux also reduces the number of cartridges used in parallel, further saving the initial investment and installation space for users.
Salt Rejection Rate
As an economical physical filtration component dedicated to insoluble impurity removal in groundwater iron and manganese removal and surface water pretreatment, both 20μm and 30μm specifications of this PP wound filter cartridge are designed only for particle size-based interception of solid contaminants (iron and manganese oxide flocs, sediment, suspended solids, organic debris) and have no ion separation, desalination or salt rejection functional design. Therefore, this product has no salt rejection rate index for either precision. All dissolved inorganic salts, metal ions (including soluble iron and manganese ions to be removed by subsequent chemical processes), small molecule soluble substances, water treatment agent residuals (e.g., oxidants for iron and manganese removal) and dissolved solids (TDS) in groundwater and surface water can pass through the cartridge body smoothly. This functional positioning is highly consistent with the core demand of groundwater iron and manganese removal and surface water pretreatment—focusing on removing physical particulate impurities that block filter media and affect subsequent treatment efficiency, without changing the soluble ion composition of the water body, and avoiding unnecessary interference with the subsequent chemical oxidation and filtration removal of iron and manganese ions, as well as the subsequent purification process of surface water.
Pressure Drop
The initial pressure drop of new 20μm and 30μm filter cartridges under standard nominal flux and 25℃ operating temperature is optimized for economical large-flow filtration, with the 30μm specification having a lower initial pressure drop due to its coarser precision and looser filtration layer: 20μm (≤0.03MPa for all specifications), 30μm (≤0.025MPa for all specifications). Both values are far lower than the pressure drop limit of small and medium-sized groundwater and surface water treatment systems, ensuring minimal pressure loss of the raw water in the front-end filtration link, reducing the energy consumption of water pumps and booster equipment in water treatment plants, and avoiding excessive pressure load on water treatment pipelines and filter media tanks. With continuous operation of the water treatment system, iron and manganese oxide flocs, sediment and other impurities are intercepted and accumulated on the filtration layer surface and inside, leading to a gradual rise in pressure drop for both specifications. The recommended maximum operating pressure drop is 0.2MPa for all models and precisions—a higher limit designed for economical application scenarios, which effectively extends the service life of the cartridge and reduces the replacement frequency. When the pressure drop reaches this value, the cartridge can be cleaned or replaced in time; delayed replacement within a short period will not cause significant impact on the normal operation of the water treatment system, fully adapting to the actual operation and maintenance habits of small and medium-sized water treatment projects with strict cost control.
Molecular Weight Cutoff (MWCO)
Both 20μm and 30μm specifications of this economical PP wound filter cartridge adopt a pure physical filtration mechanism based on particle size interception, whose core working principle is to capture insoluble solid particulate impurities in groundwater and surface water according to their actual physical size, rather than separating substances based on molecular weight or molecular size—this is fundamentally different from ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO) membrane components with specific Molecular Weight Cutoff (MWCO) indexes used in advanced water treatment. Therefore, this product has no specific MWCO index for either precision. The interception effect is only targeted at solid particulates with particle sizes of 20μm/30μm and above; macromolecular organic substances, soluble colloids, dissolved humic acid and other dissolved substances in groundwater and surface water can pass through the cartridge body smoothly as long as their actual particle size is smaller than the filtration precision, and then enter subsequent treatment links (iron and manganese removal filter media, coagulation and sedimentation, filtration) for further purification. This design fully meets the functional requirements of front-end coarse/fine filtration in groundwater iron and manganese removal and surface water pretreatment, which only needs to remove physical particulate impurities without participating in the molecular level purification of the water body, and the abandonment of MWCO-related design further simplifies the production process and reduces the product cost.
Membrane Thickness
The effective PP filtration layer thickness of this economical filter cartridge is optimized according to filtration precision and physical specification with the core principle of economic applicability and sufficient impurity holding capacity, with the 20μm specification having a slightly thicker filtration layer for fine impurity interception, and the 30μm specification with a moderate thickness for large-flux coarse filtration, both matching the internal size of standard water treatment filter housings and controlling the production cost within a reasonable range:
- 20μm precision: 10-inch (6-8mm), 20-inch (8-10mm), 30-inch (10-12mm), 40-inch (12-14mm)
- 30μm precision: 10-inch (5-7mm), 20-inch (7-9mm), 30-inch (9-11mm), 40-inch (11-13mm)
The total outer diameter of all specifications and precisions is the industry standard 63mm/70mm for water treatment filter cartridges, ensuring perfect fit with standard 10/20/30/40-inch filter housings, no water short-circuit during installation and convenient replacement. The moderately thickened filtration layer of the 20μm model forms a compact multi-layer graded interception structure to ensure the interception efficiency of fine iron and manganese oxide flocs and sufficient impurity holding capacity, avoiding rapid blockage of the filtration layer; the moderate thickness of the 30μm model optimizes the internal flow channel space while ensuring the interception of coarse sediment and silt, achieving a perfect balance between large flux, low pressure drop and impurity storage. The inner support core for all models is made of rigid PP material with a unified thickness of 4mm (a standardized design for cost reduction), with excellent pressure resistance and structural stability, able to withstand 0.6MPa operating pressure without deformation or rupture, ensuring no filtration layer damage and precision loss under the pressure fluctuation of groundwater and surface water treatment systems.
Replacement Cycle
The recommended standard replacement cycle of this 20μm/30μm economical filter cartridge is determined by filtration precision, physical specification and the actual water quality of groundwater/surface water, with the 30μm coarse filtration model having a slightly longer cycle due to lower impurity interception density and higher flux, fully adapting to the cost control requirements of economical water treatment scenarios:
- 20μm precision: 10/20-inch models (small-scale water treatment systems, turbidity ≤20 NTU) → 3-4 months; 30/40-inch models (medium-scale water treatment systems, turbidity ≤25 NTU) → 4-5 months
- 30μm precision: 10/20-inch models (small-scale water treatment systems, turbidity ≤30 NTU) → 4-5 months; 30/40-inch models (medium-scale water treatment systems, turbidity ≤35 NTU) → 5-6 months
The actual replacement cycle is closely related to the raw water impurity content and seasonal water quality changes: for high-turbidity raw water (groundwater with serious sediment, surface water after rain, turbidity ＞35 NTU), the cycle is shortened by 1 month for both precisions; for low-turbidity raw water (well water with good quality, surface water in dry season, turbidity ＜15 NTU), the cycle can be appropriately extended by 1-2 months. Regular simple physical backwashing (clean water rinsing under low pressure) can remove most surface accumulated iron and manganese oxide flocs and sediment, extending the replacement cycle by 1 month for both precisions under the premise of ensuring filtration efficiency—this simple maintenance method does not require professional equipment, fully adapting to the limited maintenance conditions of rural water supply projects and small water plants. In actual operation, the replacement cycle can also be flexibly adjusted according to the operating cost budget of the water treatment system; when the pressure drop is close to 0.2MPa or the water output of the system is significantly reduced, the cartridge is replaced uniformly, which effectively reduces the frequency of maintenance and replacement and saves labor costs.
Features
This economical PP wound filter cartridge has a number of professional performance features adapted to groundwater iron and manganese removal and surface water pretreatment, with the core advantage of excellent cost performance and high adaptability to raw water quality:
- Fixed dual precision for targeted filtration: 20μm for fine filtration of groundwater iron and manganese oxide flocs and low-turbidity surface water, 30μm for coarse filtration of high-turbidity raw water with heavy sediment, perfectly meeting the actual filtration demands of two typical water treatment scenarios with no redundant precision design.
- Economical standardized production: Abandon complex customization, adopt fixed precision, unified inner support core thickness and standardized structural design, greatly reducing production and processing costs while ensuring filtration performance, realizing high-quality and low-price product characteristics.
- High-quality PP raw material with low cost: Use high-quality industrial-grade PP resin with stable performance and moderate price, with excellent chemical stability and structural firmness, no harmful substance dissolution, ensuring no secondary pollution to raw water and complying with water treatment material standards.
- Adhesive-free integral winding forming: All specifications adopt an adhesive-free precision winding process, avoiding the dissolution of organic solvents into the water body, and ensuring the structural firmness of the cartridge—no delamination, cracking or filtration layer shedding under long-term water flow scouring and pressure fluctuation.
- Large flux with ultra-low initial pressure drop: Optimized flow channel and low-density winding design for both precisions, realizing large-flow filtration with ultra-low initial pressure drop, reducing the energy consumption of water treatment system pumps and the number of parallel cartridges, saving initial investment and operating costs.
- Sufficient impurity holding capacity: Moderately thickened graded filtration layer forms a three-dimensional porous interception structure, with large impurity storage space for both precisions, effectively delaying pressure drop rise and extending the replacement cycle, reducing the frequency of cartridge replacement and maintenance costs.
- Simple backwashable design: The rigid and dense winding structure supports simple physical backwashing (clean water rinsing), no need for professional backwashing equipment, easy to operate for rural water supply projects and small water plants with limited maintenance conditions, further improving cost performance.
- Universal water treatment compatibility: Matches all standard 10/20/30/40-inch single/multi-core filter housings (PP/304 stainless steel) commonly used in water treatment, unified installation specifications, easy disassembly and replacement without professional tools, suitable for large-scale promotion and application in small and medium-sized water treatment projects.
- Strong adaptability to raw water quality: Resistant to slight pH fluctuations (pH 4-10) of groundwater and surface water, corrosion resistant to common oxidants (e.g., chlorine, potassium permanganate) used in iron and manganese removal, with stable performance in complex raw water quality environments.
Application Fields
This economical PP wound filter cartridge is a dedicated front-end filtration component for groundwater iron and manganese removal and surface water pretreatment, and its core application fields cover all small and medium-sized water treatment scenarios with strict cost control, including rural water supply, small water plants and industrial raw water treatment with groundwater or surface water as the water source:
- Rural groundwater supply projects: Applied to the front-end filtration of groundwater iron and manganese removal systems in rural villages and towns, removing iron and manganese oxide flocs and sediment in well water after oxidation, protecting manganese sand/quartz sand filter media, improving iron and manganese removal efficiency and ensuring the safety of rural drinking water.
- Small urban/rural water plants: Used in the surface water pretreatment coarse/fine filtration link of small water plants (supplying water for less than 10,000 people) with river water, lake water or reservoir water as the water source, removing sediment and suspended solids, reducing the turbidity of raw water and lightening the load of subsequent coagulation, sedimentation and filtration processes.
- Industrial raw water pretreatment: Applied to the front-end filtration of industrial raw water treatment systems in small and medium-sized enterprises (e.g., food processing, light industry manufacturing, agricultural product processing) with groundwater or surface water as the water source, removing particulate impurities, protecting subsequent water treatment equipment and ensuring the quality of industrial production water.
- Community self-built water supply systems: Used in the groundwater iron and manganese removal and surface water pretreatment of self-built water supply systems in residential communities, industrial parks and schools with no municipal water supply coverage, realizing economical and efficient raw water purification and ensuring the normal water supply of the community.
- Agricultural irrigation water pretreatment: Applied to the front-end filtration of groundwater/surface water pretreatment systems for large-scale agricultural irrigation and greenhouse planting, removing sediment and bulky impurities, preventing the blockage of irrigation pipelines and drip irrigation nozzles and improving the utilization efficiency of irrigation water.
- Scenic spot water supply systems: Used in the groundwater iron and manganese removal and surface water pretreatment of self-built water supply systems in scenic spots, forest parks and tourist resorts with natural water sources as the water source, with the advantages of low cost and easy maintenance, adapting to the actual operation conditions of scenic spot water supply systems.
- Construction site temporary water supply: Applied to the front-end filtration of temporary groundwater/surface water treatment systems on construction sites, removing sediment and suspended solids, improving the cleanliness of temporary water supply and meeting the water demand of construction site construction and living.
- Aquaculture water pretreatment: Used in the front-end filtration of groundwater/surface water pretreatment systems for freshwater aquaculture (fish, shrimp, crab breeding), removing sediment and organic debris, improving the clarity of aquaculture water and creating a good living environment for aquatic organisms.
Conclusion
In summary, this economical PP wound filter cartridge is a high-cost-performance, dedicated front-end filtration component specially developed for groundwater iron and manganese removal and surface water pretreatment, and is an indispensable core filtration product for optimizing the utilization of groundwater resources, improving the efficiency of surface water pretreatment and reducing the overall operating cost of small and medium-sized water treatment systems. Its fixed dual-precision design (20μm/30μm) is scientifically tailored to the impurity removal characteristics of groundwater and surface water, realizing targeted filtration of iron and manganese oxide flocs, sediment and suspended solids without redundant precision design, and the standardized production process abandons complex customization, greatly reducing the product cost while ensuring filtration performance—perfectly balancing filtration efficiency and economic applicability, which is highly suitable for rural water supply projects, small water plants and small and medium-sized enterprises with strict cost control. Crafted from high-quality industrial-grade PP resin with an adhesive-free integral winding process, it has excellent chemical stability and structural firmness, is resistant to slight pH fluctuations of raw water and common iron and manganese removal oxidants, and causes no secondary pollution to the water body, ensuring stable and reliable performance in the complex raw water quality environment of groundwater and surface water. With the advantages of large flux, ultra-low initial pressure drop, sufficient impurity holding capacity, simple backwashable design and universal water treatment compatibility, it fully adapts to the operating characteristics of small and medium-sized water treatment systems, reducing the energy consumption of water pumps, the number of parallel cartridges and the frequency of maintenance and replacement, and further saving the initial investment and operating costs of water treatment. Widely applicable to rural groundwater supply, small water plants, industrial raw water pretreatment and agricultural irrigation water treatment, this economical PP wound filter cartridge provides an efficient and low-cost front-end filtration solution for various water treatment scenarios with groundwater or surface water as the water source, and is the first choice for economical front-end filtration in groundwater iron and manganese removal and surface water pretreatment with strict cost control requirements.
Related products
The matching related products of this economical PP wound filter cartridge are all core components, supporting equipment and auxiliary materials of groundwater iron and manganese removal and surface water pretreatment systems, forming a complete economical water treatment product system adapted to small and medium-sized water treatment scenarios:
- Manganese sand/quartz sand filter media: Graded manganese sand (for iron and manganese removal) and quartz sand filter media of various specifications, the core subsequent treatment materials for groundwater iron and manganese removal, matched with this filter cartridge to form a complete iron and manganese removal filtration system.
- Standard water treatment filter housings: 10/20/30/40-inch single/multi-core (2/4/6 core) filter housings made of anti-corrosion PP plastic and 304 stainless steel, the special supporting equipment for this cartridge, with pressure gauge interfaces and drain valves for real-time operating status monitoring, low cost and easy installation.
- Water treatment chemicals for iron and manganese removal: Common and economical oxidants and coagulants for groundwater iron and manganese removal (e.g., sodium hypochlorite, potassium permanganate, polyaluminum chloride), matched with this cartridge to optimize the iron and manganese removal effect and reduce the impurity content of raw water.
- Simple backwashing equipment: Low-pressure clean water pumps and backwash pipelines for small and medium-sized water treatment systems, matching the backwashable design of this cartridge, easy to operate and suitable for rural water supply projects with limited maintenance conditions.
- Basic water quality testing instruments: Portable turbidity meters, pH meters and iron/manganese ion rapid test kits, providing simple water quality testing for groundwater and surface water, facilitating the selection of filter cartridge precision and the monitoring of water treatment effect.
- Water supply and booster equipment: Economical frequency conversion booster pumps and pressure stabilizing tanks for small and medium-sized water treatment systems, matched with this cartridge to ensure stable water pressure and flux for groundwater and surface water treatment systems.
- Standard melt-blown PP filter cartridges: 10μm/50μm economical melt-blown PP filter cartridges of the same specifications, matching this wound cartridge to form a multi-precision filtration system for water treatment scenarios with different raw water turbidity.
- Water treatment pipeline accessories: Economical acid and alkali resistant silicone gaskets, plastic quick connectors, ball valves and Y-type coarse filters, used for the installation, sealing and primary coarse filtration of this cartridge and filter housings, low cost and easy replacement.
- Coagulation and sedimentation equipment: Small integrated coagulation and sedimentation tanks for surface water pretreatment, matched with this cartridge to form a complete pretreatment system for high-turbidity surface water, improving the purification effect of raw water.
- Filter media regeneration equipment: Simple manganese sand filter media regeneration tanks and dosing devices for groundwater iron and manganese removal systems, matched with this cartridge to extend the service life of filter media and further reduce the operating cost of the water treatment system.
