Product Introduction

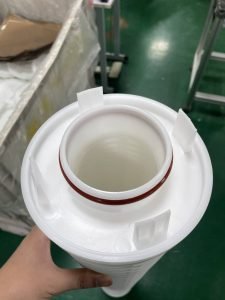

HFU620CAS010JUW is a compact, high-efficiency pleated filter cartridge specifically engineered for medium-flow industrial water treatment and precision fluid purification applications. It adopts cellulose acetate (CA) as the core filter medium, paired with a lightweight polypropylene (PP) inner support frame and a high-seal EPDM gasket to ensure reliable structural integrity during continuous operation. With a standard outer diameter of 2.5 inches (63.5mm) and optional lengths of 10”, 20”, and 30”, the cartridge features a symmetric pleat design that maximizes effective filtration area while maintaining a compact footprint for space-constrained systems. Manufactured via a low-temperature hot-melt bonding process, it eliminates adhesive residue risks and complies with FDA food contact safety standards and ISO 9001 quality management requirements. This product is dedicated to removing fine suspended solids, colloidal particles, and microbial contaminants from water, providing dependable protection for downstream precision equipment such as ultrafiltration modules, ion exchange resins, and small-scale reverse osmosis (RO) systems.
Filtration Precision
The standard filtration precision of HFU620CAS010JUW is 10μm, which can achieve 99.9% interception efficiency for particles of 10μm and above under rated operating conditions. For customized application needs, it can be tailored to precision levels ranging from 1μm to 25μm, covering ultra-fine filtration demands for pharmaceutical purified water and coarse filtration requirements for industrial process water pretreatment. This precise grading capability ensures consistent filtrate clarity across diverse water treatment systems, preventing fine particulate abrasion and clogging of core downstream components.
Flux
Flux is a key performance indicator of HFU620CAS010JUW. Under standard test conditions (25°C, clean water, 1.0 bar operating pressure), the 20-inch length model delivers a stable flux of 12–16 m³/h; the 10-inch model achieves a flux of 6–8 m³/h; and the 30-inch model provides a flux of 18–22 m³/h. This high-flux performance stems from its hydrophilic CA membrane and optimized pleat density (90 pleats per linear foot), which reduces flow resistance and improves water permeability. Compared with conventional 10μm filter cartridges of the same size, it can increase water throughput by 20% while maintaining filtration efficiency, thus reducing the number of parallel cartridges required in medium-flow systems.
Salt Rejection Rate
As a particulate microfiltration cartridge, HFU620CAS010JUW is not designed for desalination functions, so its salt rejection rate is negligible, generally below 1.5%. Its core function is to remove physical impurities rather than dissolved ionic substances in water. In integrated water treatment systems, it serves as a critical pre-treatment component, preventing fine colloidal particles and microbial contaminants from adhering to the surface of RO or nanofiltration membranes, thereby ensuring the stable high salt rejection rate (98–99.5%) of downstream desalination equipment.
Pressure Drop
The initial pressure drop of HFU620CAS010JUW at rated flow and 20°C is only 0.035–0.055 bar, which is significantly lower than that of traditional cellulose filter cartridges of the same specification. As the filtration process proceeds and impurities accumulate on the membrane surface, the pressure drop will gradually rise. The recommended maximum allowable pressure drop for replacement is 1.9 bar. Maintaining a low pressure drop minimizes the energy consumption of system water pumps, reduces pipeline operating pressure, and extends the service life of the entire water treatment system.
Molecular Weight Cutoff (MWCO)
Since HFU620CAS010JUW relies on particle size-based filtration rather than molecular separation, its molecular weight cutoff (MWCO) is not a core technical parameter and lacks precise calibration. In practical applications, it can roughly intercept macromolecular substances with a molecular weight of 120,000–220,000 Daltons, such as large proteins, colloidal organic matter, and microbial flocs in water. However, it has no interception effect on small-molecular substances including inorganic salts, monosaccharides, and small-molecular organic acids.
Membrane Thickness
The cellulose acetate filter membrane thickness of HFU620CAS010JUW is precisely controlled at 0.09–0.13 mm, a balanced design that takes into account filtration efficiency, dirt-holding capacity, and water permeability. The thin membrane structure reduces flow resistance and ensures high flux, while the reinforced membrane matrix provides sufficient mechanical strength to resist water flow impact and mild backwashing pressure without deformation or rupture. Additionally, the hydrophilic surface of the CA membrane reduces the adhesion of hydrophobic impurities, improving dirt-holding capacity and maintaining stable flux during long-term operation.
Replacement Cycle
The replacement cycle of HFU620CAS010JUW is determined by raw water turbidity, operating flow rate, and system pressure drop, with significant variability across different application scenarios. In ultra-clean industrial process water with turbidity below 1.5 NTU, the replacement cycle can reach 3.5–5.5 months; in medium-turbidity water environments such as small-scale pharmaceutical purified water pretreatment or electronics factory process water treatment with turbidity above 12 NTU, the cycle needs to be shortened to 0.6–1.1 months. In addition, once the system pressure drop reaches the recommended replacement threshold of 1.9 bar, the cartridge should be replaced immediately, regardless of the service time, to avoid system efficiency degradation or equipment damage caused by excessive pressure.
Features
- Excellent biocompatibility: The cellulose acetate filter medium has superior biocompatibility, making it suitable for pharmaceutical, food, and beverage industry applications where product safety is critical.
- Low pressure drop & high flux: The optimized pleat design and hydrophilic CA membrane minimize flow resistance, reducing system energy consumption while maintaining high water throughput.
- Enhanced chemical compatibility: The CA filter medium is resistant to most weak acids, weak alkalis, and organic solvents, with a pH tolerance range from 3 to 8, adapting to diverse medium-flow water treatment needs.
- Compact & space-saving: The 2.5-inch outer diameter design is ideal for small-to-medium flow water treatment systems with limited installation space, without compromising filtration performance.
- Easy installation & maintenance: The standardized interface design is compatible with most compact industrial filter housings, requiring no special tools for installation and replacement, thus saving labor costs and reducing system downtime.
- Environmentally friendly: The CA filter medium is biodegradable under specific conditions, and the PP support frame can be recycled, aligning with green manufacturing and environmental protection requirements.
Application Fields
- Pharmaceutical industry pre-filtration: Used in the pre-filtration of pharmaceutical purified water, oral liquid formulations, and cosmetic production water, complying with GMP certification standards and ensuring product safety.
- Electronics manufacturing high-purity water treatment: Pre-filters ultra-pure water for printed circuit board (PCB) cleaning and semiconductor chip processing, removing fine particles to prevent device defects and short circuits.
- Food and beverage industry fluid purification: Filters beverage raw water, fruit juice, and dairy products, removing suspended solids and microbial contaminants to improve product clarity and extend shelf life.
- Laboratory water purification systems: Serves as a pre-filtration component for laboratory ultra-pure water machines, protecting RO and ultrafiltration membranes from particulate contamination and ensuring water quality meets experimental standards.
- Small-scale industrial process water pretreatment: Pre-filters cooling water and cleaning water for precision instrument manufacturing, reducing particulate abrasion and extending equipment service life.
- Residential and commercial water purification: Used in large-scale commercial water purifiers and community water supply systems, improving tap water quality by removing sediment and colloidal impurities.
Conclusion
In conclusion, HFU620CAS010JUW is a high-precision, space-saving medium-flow water treatment filter cartridge that integrates the advantages of low pressure drop, high flux, and excellent biocompatibility. Its cellulose acetate membrane and compact design address the pain points of traditional filter cartridges, such as large footprint and poor biocompatibility, making it suitable for medium-demand high-purity water treatment scenarios with limited installation space. Whether applied to pharmaceutical purified water pre-filtration, electronics manufacturing ultra-pure water treatment, or food and beverage fluid purification, HFU620CAS010JUW can provide efficient, stable, and cost-effective filtration solutions. It is an ideal choice for upgrading compact water treatment systems and improving product quality in precision manufacturing, pharmaceutical, and food industries.
Related products
- HFU620CAS005JUW: A 5μm high-precision model, suitable for ultra-fine filtration scenarios in pharmaceutical injection water pre-treatment and semiconductor chip manufacturing.
- HFU620CAS020JUW: A 20μm coarse filtration model, designed for medium-turbidity industrial process water pretreatment and municipal tap water pre-filtration.
- HFU640CAS010JUW: A 4.5-inch outer diameter large-flow counterpart model, suitable for high-flow industrial water treatment systems and wastewater pretreatment.
- HFU620CAS010JUWGF: A glass fiber-reinforced CA membrane model with enhanced dirt-holding capacity, extending the service cycle by 30% in high-colloid water quality environments.
- HFU620UY010JUW: A polypropylene (PP) filter medium model with broader chemical compatibility, suitable for harsh chemical fluid filtration scenarios where CA membranes are not applicable.
