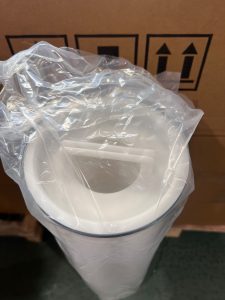

HFU660GF100H13 Water Treatment Filter Element Product Specification

Product Introduction

The HFU660GF100H13 is a high-performance pleated filter cartridge engineered for high-precision, large-flow industrial water treatment scenarios. Constructed with premium glass fiber filter media and advanced pleating technology, this product is designed to balance high filtration accuracy and large water throughput. It effectively captures fine particulate impurities, colloids and suspended solids in water, providing reliable pretreatment protection for downstream precision equipment and membrane separation systems. With its robust structural design, the HFU660GF100H13 exhibits excellent stability and durability, making it a preferred choice for various industrial water purification projects.

Filtration Precision

The HFU660GF100H13 features a nominal filtration precision of 10 microns, with a filtration efficiency of up to 99.5% for particles of 10 microns and above. This high-precision filtration capability ensures that even fine suspended solids in water can be effectively intercepted, meeting the strict water quality requirements of precision industrial production and advanced water treatment processes.

Flux

Under standard operating conditions of 25℃ and 0.2MPa inlet pressure, the HFU660GF100H13 delivers a stable water flux of 120–150 L/min. Its optimized large-diameter pleated structure maximizes the effective filtration area, which is 3–5 times that of traditional filter cartridges, enabling it to handle large-volume water flow while maintaining high filtration precision, suitable for medium-to-large-scale industrial water treatment systems.

Salt Rejection Rate

As a physical particulate filtration cartridge, the HFU660GF100H13 is not designed for desalination purposes. Its salt rejection rate is less than 5%, which means it cannot remove dissolved inorganic salts, ions or small-molecule organic compounds from water. The core function of this product focuses on the separation of physical contaminants rather than chemical purification.

Pressure Drop

The initial pressure drop of the HFU660GF100H13 is ≤0.02MPa under rated flux conditions. During long-term operation, as impurities accumulate on the filter surface, the pressure drop will gradually increase. When the pressure drop reaches 0.1MPa, it is recommended to replace the filter cartridge in a timely manner to avoid system efficiency degradation and energy consumption increase caused by excessive flow resistance.

Molecular Weight Cutoff (MWCO)

The molecular weight cutoff of the HFU660GF100H13 is 100,000 Dalton. This parameter means that the filter cartridge can effectively retain substances with a molecular weight of 100,000 Dalton and above, such as macromolecular colloids, organic polymers and large-particle organic matter in water, while allowing small-molecule substances to pass through smoothly, ensuring the water quality meets the process requirements.

Membrane Thickness

The glass fiber filter membrane of the HFU660GF100H13 has a thickness of 0.35–0.45 mm. This moderate thickness design ensures the membrane has both sufficient mechanical strength and high dirt-holding capacity. It can resist the impact of high-pressure water flow without deformation or rupture, and can accumulate more impurities to extend the service life of the filter cartridge.

Replacement Cycle

The recommended replacement cycle of the HFU660GF100H13 is 3–7 months, which is affected by the actual water quality and operating load of the application site. In water systems with high turbidity (suspended solids content >60mg/L), the replacement cycle should be shortened to 1–2 months to prevent filter clogging and secondary pollution caused by excessive impurity accumulation. In low-turbidity water systems (suspended solids content <10mg/L), the cycle can be appropriately extended to 6–8 months under regular maintenance.

Features

High-precision & Large-flow Dual Advantage: 10-micron high filtration precision combined with 120–150 L/min flux, meeting the needs of high-precision and large-volume water treatment scenarios.
Superior Dirt-holding Capacity: Advanced pleated structure expands the effective filtration area, significantly improving dirt-holding capacity and reducing the frequency of filter replacement.
Excellent Chemical Compatibility: The glass fiber media is resistant to weak acids, weak alkalis and most organic solvents, adapting to complex industrial water quality environments such as chemical processing and electronic manufacturing.
Strong Structural Stability: The filter cartridge is reinforced with a high-strength inner and outer support frame, which can resist high pressure and water flow impact, avoiding membrane collapse during operation.
Easy Installation & Maintenance: Standard interface design is compatible with most industrial filter housings, requiring no additional modifications during installation and replacement, reducing system downtime.
Environmentally Friendly & Safe: The filter material complies with international environmental and food safety standards, is non-toxic and odorless, and can be recycled after professional treatment, minimizing environmental impact.

Application Fields

Electronic Manufacturing Water Treatment: Applied in the pretreatment of ultra-pure water for semiconductor production, LCD panel manufacturing and electronic component cleaning, ensuring water quality meets strict precision production standards.
Pharmaceutical and Biotechnology Industry: Used in the pretreatment of purified water and water for injection in pharmaceutical production, complying with GMP and FDA standards, and ensuring the safety and purity of pharmaceutical products.
Food and Beverage Processing: Suitable for high-precision filtration of raw water in beverage production, dairy processing and wine brewing, removing fine suspended solids and colloids to improve product quality and shelf life.
Reverse Osmosis (RO) and Ultrafiltration (UF) Pretreatment: Serves as a key pre-filter for medium-to-large-scale RO/UF systems, removing fine particulates to prevent membrane fouling and scaling, extending the service life of core separation membranes.
Chemical and Petrochemical Industry: Applied in the filtration of process water and circulating cooling water in chemical production, protecting precision equipment such as heat exchangers and pumps from particulate wear and blockage.
Automotive Manufacturing: Used in the treatment of painting workshop water and cooling water for engine testing, ensuring the cleanliness of water and improving the quality of automotive parts processing.

Conclusion

The HFU660GF100H13 water treatment filter cartridge is a high-performance product that integrates 10-micron high precision and large flow capacity. Its optimized structural design and premium filter media enable it to provide stable and reliable filtration effects in various complex industrial water treatment scenarios. Whether used in high-precision fields such as electronics and pharmaceuticals, or in large-flow industrial process systems, this filter cartridge can effectively remove fine particulate impurities, protect downstream equipment, reduce system operation and maintenance costs, and ensure the stable and efficient operation of the entire water treatment system. It is an ideal filtration solution for enterprises pursuing high water quality and low operating costs.

HFU660GF100H13 10 Micron High-Flow Glass Fiber Pleated Filter Cartridge for Industrial Water Treatment Systems
