Product Introduction
The HFU660UY045H4 is a high-flow, depth-type pleated filter cartridge designed for large-scale industrial water treatment systems. It serves as a critical pre-filtration or “guard” filter, typically installed upstream of precision membrane systems like Ultrafiltration (UF) or Reverse Osmosis (RO). Its core function is to efficiently remove suspended solids, sediments, colloids, and rust from feed water. By capturing these particulates, it protects sensitive downstream equipment from fouling and abrasion, reduces the overall system pressure drop, and minimizes cleaning frequency. The design, featuring a large diameter and extensive pleated media, allows a single cartridge to handle very high flow rates, making it a space-saving and cost-effective solution for centralized filtration in applications such as power generation, chemical processing, and municipal water pretreatment.
Filtration Precision
This cartridge is designed for precise particulate filtration. The “045” in the model number typically indicates a nominal filtration rating of 4.5 microns (µm). It is commonly constructed from graded-density, pleated polypropylene (PP) melt-blown media. This depth filtration structure allows for progressive capture of particles throughout the thickness of the media, providing high dirt-holding capacity. The absolute filtration rating is often 5 µm or finer, with a filtration ratio (Beta ratio) of ≥1000 at its rated size, ensuring the removal of 99.9% of particles at or above that specific size.

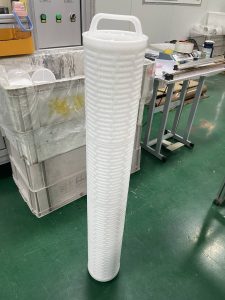

HFU660UY045H4 Ultra-High-Flow Ultrafiltration (UF) Membrane Cartridge for Water Treatment
Flux
A key advantage of the HFU660UY045H4 is its exceptionally high flow rate capability. Thanks to its large diameter (typically 6 inches/152mm) and extensive pleated surface area, a single cartridge can replace multiple standard-sized cartridges. For reference, a 40-inch long version can deliver a flow rate of approximately 70-90 cubic meters per hour (m³/h), while a 60-inch version can handle around 110 m³/h. This high-flux design simplifies system architecture, reduces vessel size, and lowers the total cost of ownership by decreasing the number of cartridges and housing ports required.
Salt Rejection Rate
The HFU660UY045H4 is a particulate pre-filter and is not designed to remove dissolved salts or ions. Its separation mechanism is based on the physical retention of suspended particles. The removal of dissolved salts is the function of downstream membrane processes like Reverse Osmosis (RO) or ion exchange. Therefore, this cartridge does not have a salt rejection rate, and its performance is measured solely by its efficiency in removing solid contaminants.
Pressure Drop
A significant benefit of its large filtration area is a low initial pressure drop under rated flow conditions. This design minimizes energy consumption for pumping. The cartridge is operated on a differential pressure basis, meaning it should be replaced when the pressure drop across it increases to a predetermined setpoint, which is typically in the range of 2.0 to 2.4 bar (29 to 35 psi). Monitoring this differential pressure is the standard method for determining the replacement cycle.
Molecular Weight Cutoff (MWCO)
As a depth filter designed for particulate removal, the HFU660UY045H4 does not have a defined Molecular Weight Cutoff (MWCO) in the same way that ultrafiltration (UF) membranes do. MWCO is a specification for membranes that separate dissolved species based on molecular size. This cartridge operates via mechanical sieving and adsorption within a fibrous matrix. However, its effective removal range can be referenced for colloidal materials, typically intercepting organics and colloids in the range corresponding to 50,000 to 100,000 Daltons or larger, depending on the particle’s physical size and shape.
Membrane Thickness
The HFU660UY045H4 is not a thin-film membrane. It utilizes a depth filtration media, which is a thick, porous matrix of polypropylene fibers. This media has a substantial thickness (often several millimeters) that allows contaminants to be captured throughout its entire depth, rather than just on the surface. This structure is key to its high dirt-holding capacity. The term “membrane thickness” is therefore not applicable; the relevant geometric specification is the cartridge length (e.g., 40 inches or 60 inches).
Replacement Cycle
The replacement cycle is not defined by a fixed time interval but by the differential pressure and the total throughput under specific water quality conditions. The cartridge must be replaced when the pressure drop reaches the manufacturer’s recommended maximum limit (e.g., 2.4 bar) to maintain system efficiency and protect downstream components. The service life can vary widely—from weeks to several months—depending entirely on the concentration and nature of the suspended solids in the feed water.
Features
High Flow Rate: Single-cartridge design supports very high flow, reducing system footprint and complexity.
High Dirt-Holding Capacity: Deep pleats and graded-density media maximize contaminant loading, extending service life.
Cost-Effective: Reduces the number of cartridges and housing ports needed, lowering initial investment and long-term replacement costs.
Robust Construction: Typically made with a polypropylene core, cage, and end caps, compatible with a wide range of chemicals and temperatures.
Standard Connections: Designed to fit industry-standard large-diameter filter housings.
Application Fields
Pre-filtration for RO/UF/NF Systems: Protects membranes in seawater desalination, boiler feed water, and process water production.
Industrial Process Water: Clarification of water for power plants, chemical plants, and manufacturing facilities.
Municipal Water Treatment: Pretreatment in drinking water plants.
Cooling Water Filtration: Removal of solids from recirculating cooling water systems.
Wastewater Treatment/Reuse: Pre-treatment for tertiary filtration systems.
Conclusion
The HFU660UY045H4 is an engineered solution for high-flow, coarse to fine particulate removal in demanding industrial water treatment applications. Its value lies in its ability to provide reliable pre-filtration with high throughput and large contaminant capacity, thereby optimizing the performance and protecting the capital investment of downstream precision treatment systems. Selecting the correct micron rating and monitoring its operational pressure drop are essential for achieving optimal system performance and cost efficiency.
Related Products
Higher Precision Cartridges: For applications requiring final particulate polishing down to 1 micron or less.
String-Wound or Melt-Blown Cartridges: Alternative, often lower-cost, depth filters for similar applications but typically with lower flow rates per cartridge.
Bag Filters: An alternative pre-filtration method suitable for slightly higher micron ratings and different housing systems.
Automatic Self-Cleaning Filters: For applications with very high solid loads where continuous operation without cartridge replacement is desired.
