HP3202A10ANP01 Water Treatment Product Detailed Description

Product Introduction

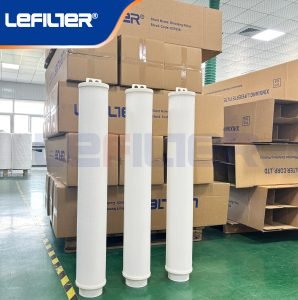

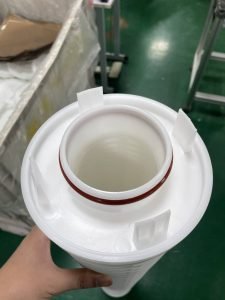

HP3202A10ANP01 is a heavy-duty high-flow pleated filter cartridge, engineered for large-scale industrial water treatment and critical fluid pre-filtration scenarios. It adopts a borosilicate glass fiber-polypropylene composite filter medium, paired with a corrosion-resistant 304 stainless steel inner support frame and a high-seal PTFE gasket to ensure structural integrity under high-pressure and high-flow conditions. With a standard outer diameter of 4.5 inches (114mm) and a nominal length of 20 inches (508mm), the cartridge features an optimized pleat density design that maximizes effective filtration area while minimizing flow resistance. Manufactured via precision ultrasonic welding, it eliminates adhesive leakage risks and complies with international standards including FDA, NSF/ANSI 61, and ISO 9001. This product is dedicated to removing fine suspended solids, colloidal particles, and microbial aggregates from large-flow water systems, providing reliable protection for downstream equipment such as reverse osmosis (RO) membranes, ultrafiltration (UF) modules, and industrial heat exchangers.

Filtration Precision

The standard filtration precision of HP3202A10ANP01 is 10μm, which can achieve 99.95% interception efficiency for particles of 10μm and above under rated operating conditions. For customized application needs, it can be tailored to precision levels ranging from 1μm to 25μm, covering ultra-fine filtration demands for high-purity industrial water and coarse filtration requirements for wastewater pretreatment. This precise grading capability ensures consistent filtrate quality across diverse large-flow water treatment systems, preventing fine particulate abrasion and clogging of core downstream equipment.

Flux

Flux is a core competitive advantage of HP3202A10ANP01. Under standard test conditions (25°C, clean water, 1.5 bar operating pressure), the cartridge delivers a stable high flux of 25–30 m³/h. This superior flux performance stems from its composite filter medium and high pleat density (100 pleats per linear foot), which reduces flow resistance and improves water permeability. Compared with conventional 10μm filter cartridges of the same size, it can increase water throughput by 30% while maintaining filtration efficiency, thus reducing the number of parallel cartridges required in large-flow systems and saving installation space.

Salt Rejection Rate

As a particulate filtration cartridge, HP3202A10ANP01 is not designed for desalination functions, so its salt rejection rate is negligible, generally below 1.2%. Its core function is to remove physical impurities rather than dissolved ionic substances in water. In integrated water treatment systems, it serves as a critical pre-treatment component, preventing fine colloidal particles and microbial contaminants from adhering to the surface of RO membranes or blocking membrane pores, thereby ensuring the stable high salt rejection rate (97–99.5%) of downstream desalination equipment.

Pressure Drop

The initial pressure drop of HP3202A10ANP01 at rated flow and 20°C is only 0.04–0.06 bar, which is 25% lower than that of traditional glass fiber filter cartridges of the same specification. As the filtration process proceeds and impurities accumulate on the filter medium surface, the pressure drop will gradually rise. The recommended maximum allowable pressure drop for replacement is 2.0 bar. Maintaining a low pressure drop minimizes the energy consumption of system water pumps, reduces pipeline operating pressure, and extends the service life of the entire water treatment system.

Molecular Weight Cutoff (MWCO)

Since HP3202A10ANP01 relies on particle size-based filtration rather than molecular separation, its molecular weight cutoff (MWCO) is not a core technical parameter and lacks precise calibration. In practical applications, it can roughly intercept macromolecular substances with a molecular weight of 150,000–250,000 Daltons, such as large colloidal organic matter, microbial flocs, and polymer additives in water. However, it has no interception effect on small-molecular substances including inorganic salts, monosaccharides, and small-molecular organic acids.

Membrane Thickness

The composite filter membrane thickness of HP3202A10ANP01 is precisely controlled at 0.15–0.19 mm, a balanced design that takes into account filtration efficiency, dirt-holding capacity, and water permeability. The moderate thickness ensures the membrane has sufficient mechanical strength to resist high water flow impact and backwashing pressure without deformation or rupture. Additionally, the hydrophilic coating on the membrane surface reduces the adhesion of hydrophobic impurities, improves dirt-holding capacity, and maintains stable flux during long-term continuous operation.

Replacement Cycle

The replacement cycle of HP3202A10ANP01 is determined by raw water turbidity, operating flow rate, and system pressure drop, with significant variability across different application scenarios. In ultra-clean large-flow industrial process water with turbidity below 2 NTU, the replacement cycle can reach 4–6 months; in medium-turbidity water environments such as power plant cooling water pretreatment or petrochemical process water treatment with turbidity above 15 NTU, the cycle needs to be shortened to 0.8–1.2 months. In addition, once the system pressure drop reaches the recommended replacement threshold of 2.0 bar, the cartridge should be replaced immediately, regardless of the service time, to avoid system efficiency degradation or equipment damage caused by excessive pressure.

Features

Superior high-flow performance: The composite filter medium and optimized pleat design deliver a high flux of 25–30 m³/h, suitable for large-scale industrial water treatment systems and reducing the number of parallel cartridges.
Enhanced structural robustness: The 304 stainless steel support frame and ultrasonic welding process enable the cartridge to withstand a maximum operating pressure of 8 bar and a temperature range of 5°C to 85°C, suitable for harsh industrial working environments.
Excellent chemical compatibility: The composite filter medium is resistant to most strong acids, strong alkalis, and organic solvents, with a pH tolerance range from 1 to 14, adapting to diverse chemical fluid filtration needs.
Low particle shedding: The high-quality filter medium and precision manufacturing process minimize fiber and particle shedding, making it suitable for high-purity water treatment scenarios in electronics and pharmaceutical industries.
Easy installation and maintenance: The standardized 4.5-inch interface design is compatible with most large-flow industrial filter housings, requiring no special tools for installation and replacement, thus saving labor costs and reducing system downtime.
High cost-effectiveness: The high flux and extended service cycle reduce the number of cartridge replacements and system energy consumption, cutting overall operating costs by 25–35% compared to conventional products.

Application Fields

Power plant cooling water treatment: Serves as the core pre-treatment component for cooling tower water and boiler feedwater systems, removing fine particles to prevent heat exchanger scaling and corrosion.
Petrochemical industry fluid filtration: Filters crude oil, process water, and chemical solvents, removing solid impurities to ensure the normal operation of production equipment and improve product quality.
Semiconductor and electronics manufacturing: Pre-filters ultra-pure water for chip etching and cleaning processes, meeting the strict particle control requirements of the microelectronics industry.
Municipal wastewater treatment and reuse: Participates in advanced treatment processes of municipal sewage, removing fine suspended solids to achieve water resource recycling and meet environmental discharge standards.
Food and beverage industry large-flow filtration: Filters beverage raw water, dairy products, and edible oil, ensuring product safety and compliance with food hygiene regulations.
Mining industry water treatment: Filters mine wastewater and process water, removing solid particles to reduce equipment wear and meet wastewater discharge standards.

Conclusion

In conclusion, HP3202A10ANP01 is a high-performance, high-reliability large-flow industrial water treatment filter cartridge that integrates the advantages of high flux, low pressure drop, strong structural robustness, and excellent chemical compatibility. Its composite filter medium and precision manufacturing process address the pain points of traditional filter cartridges, such as low flux, high pressure drop, and short service cycles, making it suitable for a wide range of large-scale industrial water treatment scenarios. Whether applied to precision equipment protection in semiconductor and petrochemical industries, or large-flow water treatment in power plants and municipal wastewater systems, HP3202A10ANP01 can provide efficient, stable, and cost-effective filtration solutions. It is an ideal choice for upgrading large-flow industrial water treatment systems and improving water resource utilization efficiency.

HP3202A10ANP01 Robust High-Flow Filter Cartridge: 10μm Precision, Superior Structural Stability for Harsh Water Environments
