Product Introduction

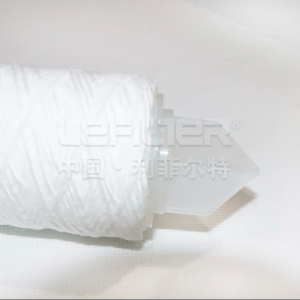

This industrial grade PP wire-wound filter cartridge is a professionally engineered water treatment component tailored for the water pretreatment process in electronic component production, a field with stringent requirements for water quality purity. Crafted from high-quality, industrial-grade polypropylene (PP) raw materials and manufactured via advanced precision spiral winding technology, the cartridge features a porous PP inner core and a uniformly wound PP wire filter layer. It is designed to efficiently remove suspended solids, particulate impurities, colloids and other insoluble contaminants from raw water, process water and cooling water in electronic component production lines, laying a solid foundation for subsequent advanced water treatment processes such as reverse osmosis, ultrafiltration and ion exchange. With excellent chemical stability, high dirt-holding capacity and adaptable structural design, this filter cartridge meets the industrial-scale continuous operation demands of electronic manufacturing plants, and ensures no secondary pollution to water bodies during filtration, complying with the strict water quality pretreatment standards for electronic component production.
Filtration Precision
Calibrated specifically for the water pretreatment needs of electronic component production, the filtration precision of this industrial grade PP wire-wound filter cartridge covers a customizable range of 5 μm to 100 μm, with the most commonly used specifications being 10 μm, 20 μm and 50 μm. The 10 μm and 20 μm precision options are ideal for fine pretreatment of water used in the production of high-precision electronic components such as microchips, printed circuit boards (PCBs) and semiconductor devices, effectively intercepting micro suspended solids and fine colloidal particles that may affect subsequent advanced filtration and component manufacturing quality. The 50 μm and 100 μm specifications are suitable for coarse pretreatment of raw water and cooling water, removing large particulate impurities to reduce the load of subsequent water treatment systems and protect core precision filtration equipment. All precision grades maintain consistent interception efficiency and stable filtration performance under industrial continuous operation conditions.
Flux
Under the standard operating conditions of 25℃ ambient temperature and 0.2MPa inlet pressure, the initial pure water flux of this industrial grade PP wire-wound filter cartridge is 15-35 L/min per 10 inches of cartridge length. For actual industrial water in electronic component production (with a viscosity of 1.0-1.2 mPa·s and low turbidity), the stable operating flux is 10-28 L/min per 10 inches, which is perfectly matched with the medium-to-large flow water pretreatment demand of industrial production lines in electronic manufacturing plants. The flux attenuation rate is low in the normal service cycle; even with the gradual accumulation of impurities, the flux remains stable within a reasonable range, avoiding the reduction of water supply efficiency caused by excessive flux drop and ensuring the continuous and stable operation of electronic component production water systems. The flux performance can be further optimized by adjusting the number of parallel filter cartridges according to the actual water consumption of the production line.
Salt Rejection Rate
As a physical deep filtration component relying on the principle of pore size interception, this industrial grade PP wire-wound filter cartridge is not designed for desalination, ion removal or dissolved solid separation, and its salt rejection rate is 0%. It only targets and intercepts insoluble solid impurities such as suspended solids, particulates and colloids in the pretreatment water for electronic component production, and will not retain beneficial dissolved ions or affect the ion balance of the water body within the normal process range. This characteristic is crucial for the subsequent water treatment processes in electronic component production, as it ensures that the advanced treatment systems such as reverse osmosis can focus on desalination and high-purity purification without being interfered by the interception of dissolved substances, and also meets the water quality requirements of different electronic component production processes for dissolved ion components.
Pressure Drop
The initial pressure drop of this filter cartridge under standard working conditions is strictly controlled within 0.01-0.04 MPa, which means low energy consumption in the initial stage of operation and no additional pressure load on the water supply pump and pipeline system of the electronic component production line. With the progress of filtration work and the gradual accumulation of intercepted impurities in the filter layer, the pressure drop of the cartridge will increase steadily. The recommended maximum allowable pressure drop is 0.20 MPa; when the pressure drop reaches this value, the filter cartridge needs to be cleaned or replaced in a timely manner. This pressure drop setting balances the dirt-holding capacity and operating energy consumption of the cartridge, avoiding excessive energy consumption caused by overly high pressure drop, and also preventing the damage of the filter layer structure due to ultra-high pressure, thus ensuring the safe and economical operation of the entire water pretreatment system.
Molecular Weight Cutoff (MWCO)
Combined with the filtration precision range, structural characteristics and actual application demands of water pretreatment for electronic component production, the molecular weight cutoff (MWCO) of this industrial grade PP wire-wound filter cartridge is set at 200,000 – 800,000 Da. This MWCO range is precisely matched with the colloidal impurities and macromolecular particulate matter in the industrial water for electronic manufacturing, which can effectively intercept colloidal particles and macromolecular insoluble substances with corresponding molecular weights in the water body. At the same time, it allows small molecular weight water molecules, dissolved ions and small molecular organic substances (within the process allowable range) to pass through smoothly. This precise MWCO control ensures the efficient removal of harmful macromolecular impurities in the pretreatment stage, and avoids the unnecessary interception of small molecular substances, which is conducive to the smooth progress of subsequent advanced water treatment and the improvement of the overall treatment efficiency of the water system.
Membrane Thickness
The filter layer (wound PP wire layer) thickness of this industrial grade PP wire-wound filter cartridge is 5-12 mm, and the total wall thickness of the cartridge (including the porous PP inner core and the outer protective layer) is 12-20 mm. The thickened filter layer design is specially optimized for the industrial continuous operation characteristics of electronic component production, which not only provides a larger dirt-holding space to intercept more impurities and extend the service cycle of the cartridge, but also ensures the structural strength of the filter layer, making it resistant to the impact of water flow in large-flow industrial water supply systems and not easy to deform or damage. The porous PP inner core with reasonable thickness ensures sufficient water permeability while providing a stable supporting structure for the outer filter layer, avoiding the blockage of the inner core affecting the overall filtration efficiency. The moderate total wall thickness also ensures the cartridge is compatible with most standard industrial filter housings, without affecting the installation density and flow rate of parallel cartridges.
Replacement Cycle
The recommended replacement cycle of this industrial grade PP wire-wound filter cartridge is 2-4 months under the conventional working conditions of electronic component production water pretreatment (24-hour continuous operation, raw water turbidity <10 NTU, standard operating pressure and flux). If the raw water turbidity is relatively high (>10 NTU) or the production line has a higher water flow demand and the cartridge is under high-load operation, the replacement cycle will be shortened to 3-6 weeks. In addition, the replacement cycle needs to be adjusted according to the actual operating parameters of the water treatment system: if the pressure drop of the cartridge reaches the recommended maximum value of 0.20 MPa in advance, or the filtration effect is significantly reduced (the turbidity of the filtered water exceeds the pretreatment process standard), the cartridge should be replaced immediately regardless of the operating time. For the fine pretreatment link of high-precision electronic component production (such as PCB electroplating water, semiconductor production water), it is recommended to shorten the replacement cycle by 10-20% to ensure the stability of water quality and avoid the impact of excessive impurity accumulation on subsequent advanced treatment processes. Regular maintenance and replacement can effectively protect the subsequent high-value water treatment equipment and ensure the consistent quality of the pretreatment water.
Features
- High-quality industrial PP raw material: Adopting food-grade and industrial-grade composite high-purity PP raw materials, with excellent chemical stability, acid and alkali resistance, corrosion resistance and oxidation resistance, no dissolution, no precipitation and no heavy metal ions, avoiding secondary pollution to the pretreatment water for electronic component production and complying with the environmental and water quality standards of the electronic manufacturing industry.
- Precision spiral winding process: The multi-layer PP wire is wound on the porous PP inner core in a high-precision spiral way, with uniform filtration gaps and consistent pore size distribution, ensuring stable filtration precision and high interception efficiency for impurities, and no channeling phenomenon under large-flow water flow impact.
- Excellent structural strength: The thickened filter layer and reinforced inner core design provide high structural strength and pressure resistance, which can adapt to the 24-hour continuous operation of industrial large-flow water supply systems, resist water flow impact and hydraulic shock, and is not easy to deform, break or block, with long-term stable operation performance.
- Large dirt-holding capacity: The three-dimensional porous filtration structure formed by spiral winding has a large specific surface area and abundant dirt-holding space, which can intercept a large amount of suspended solids, particulates and colloidal impurities, reduce the frequency of replacement and maintenance, and lower the comprehensive use cost.
- Wide precision and specification range: The filtration precision covers 5 μm-100 μm with multiple customizable specifications, and the cartridge length includes standard 10″, 20″, 30″, 40″ and other options, which can be flexibly matched with the different water pretreatment requirements of various electronic component production processes and production line scales.
- Strong compatibility: Adopting standard industrial interface designs (222, 226, flat mouth, thread mouth, etc.), which is fully compatible with most standard PP, UPVC and stainless steel industrial filter housings on the market, easy to install and replace, and can be directly retrofitted into the existing water pretreatment system of electronic manufacturing plants without additional pipeline transformation.
- Environmentally friendly and recyclable: The whole cartridge is made of homogeneous PP material, which is non-toxic, tasteless, easy to recycle and dispose of, in line with the green production and environmental protection requirements of the electronic manufacturing industry, and no harmful substances are generated during the production and use process.
- Cost-effective: Mature production process, stable product quality, long service cycle under conventional working conditions, low replacement and maintenance costs, and the comprehensive use cost is far lower than that of metal filter cartridges with the same performance, suitable for large-scale application in industrial production lines of electronic component manufacturing plants.
Application Fields
This industrial grade PP wire-wound filter cartridge is mainly dedicated to the water pretreatment link in the electronic component manufacturing industry, and its application fields cover the whole process of electronic component production with strict water quality requirements, including but not limited to: the pretreatment of process water for the production of printed circuit boards (PCBs), including inner layer etching, electroplating, solder mask and other processes; the pretreatment of high-purity water for semiconductor device and microchip production, providing high-quality raw water for subsequent advanced purification processes; the pretreatment of cooling water and circulating water for electronic component production equipment, removing particulate impurities to prevent pipeline and equipment blockage and scaling; the pretreatment of cleaning water for electronic components such as connectors, sensors and capacitors, ensuring the cleaning effect and product quality; the pretreatment of water for the production of optoelectronic components and LED devices, complying with the high-purity water quality requirements of optoelectronic manufacturing processes. In addition, it can also be widely used in the water pretreatment of other electronic manufacturing fields such as lithium battery component production, flexible circuit board production and electronic display screen production, and can also be applied to the water pretreatment of fine chemical industry, pharmaceutical intermediate production and other industries with similar water quality requirements to electronic component production.
Conclusion
In summary, this industrial grade PP wire-wound filter cartridge is a highly targeted water pretreatment product developed for the stringent water quality requirements and industrial production characteristics of electronic component manufacturing. It integrates the advantages of high-quality raw materials, advanced manufacturing technology, stable filtration performance, excellent structural strength and strong compatibility, and can efficiently remove suspended solids, particulates, colloids and other insoluble impurities from the industrial water for electronic component production. Its precise filtration precision control, reasonable flux design and large dirt-holding capacity not only ensure the high quality of pretreatment water, lay a solid foundation for the subsequent advanced water treatment processes such as reverse osmosis and ion exchange, but also effectively protect the high-value core water treatment equipment, reduce the maintenance cost of the water system and extend the service life of the equipment. The wide specification range and strong compatibility make it easy to match with various production processes and water supply systems of electronic manufacturing plants, and the cost-effective performance is suitable for large-scale industrial application. In the electronic component production industry with increasingly strict requirements for product precision and production efficiency, this filter cartridge is an indispensable and reliable core component for the water pretreatment system, which can effectively improve the overall operation efficiency of the water treatment system, ensure the stable and consistent quality of production water, and further promote the improvement of the production quality and yield of electronic components. With the continuous development of the electronic manufacturing industry, this industrial grade PP wire-wound filter cartridge will have a wider application prospect in the water pretreatment field of electronic component production with its excellent performance and adaptable design.
