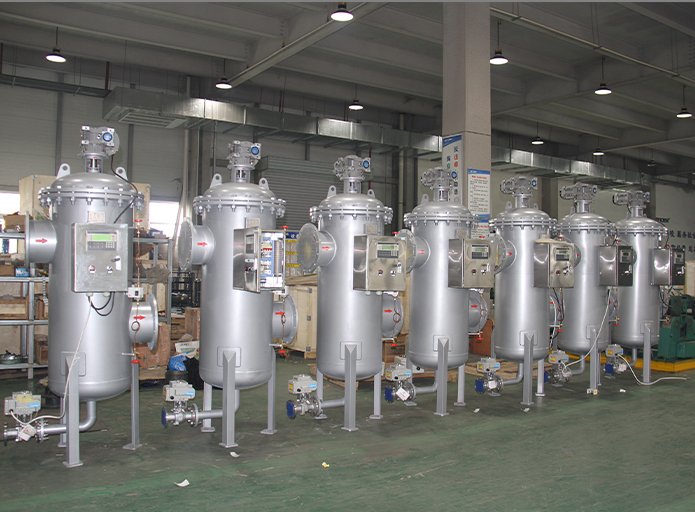

Multi – Column Self – Cleaning Filter – Multi – Unit Synergy & High – Efficiency Cleaning Solution

The multi – column self – cleaning filter, leveraging a unique multi – column structure and intelligent self – cleaning technology, offers continuous and reliable high – efficiency filtration, ensuring stable operation and excellent performance across various fluid treatment applications.

I. Product Introduction

The multi – column self – cleaning filter is an advanced filtration device that integrates multiple filter columns into a unified system, combining high – efficiency filtration with automatic self – cleaning functionality. Each filter column is equipped with high – quality filter media, such as stainless – steel wire mesh, sintered metal filters, or high – performance filter cartridges. These columns work in parallel during normal filtration, significantly increasing the overall filtration area and flow – handling capacity. When the fluid enters the filter, it is evenly distributed among the columns, and impurities like suspended solids, colloids, rust, and sediment are effectively intercepted by the filter media. As the impurities accumulate, and either the pressure difference between the inlet and outlet reaches a preset value (usually 0.05 – 0.1MPa) or the operation time reaches a set duration (e.g., 8 – 24 hours), the self – cleaning system is activated. Through a sophisticated control mechanism, the filter columns are cleaned one by one or in groups without interrupting the overall filtration process, ensuring long – term stable operation and reducing manual maintenance requirements. This makes the multi – column self – cleaning filter highly suitable for industries with high – flow and continuous filtration demands, such as industrial water treatment, petrochemicals, and food processing.

II. Working Process

1. Normal Filtration Stage

   • Fluid Inflow: The fluid to be filtered enters the main body of the multi – column self – cleaning filter through the inlet. A well – designed distribution system evenly divides the fluid flow among all the filter columns, ensuring that each column bears an appropriate load and operates efficiently.

   • Filtration in Columns: Inside each filter column, the fluid passes through the filter media from the outside to the inside (or vice versa depending on the design). During this process, the filter media traps various impurities, while the purified fluid flows out of the columns and converges towards the outlet of the filter, ready to be transported to the subsequent processes.

2. Self – Cleaning Trigger

   • Pressure Difference Trigger: As the filtration progresses, impurities gradually accumulate on the filter media within the columns, increasing the flow resistance and causing the pressure difference between the inlet and outlet of the filter to rise. Once this pressure difference reaches the pre – set threshold (0.05 – 0.1MPa), it serves as a signal to start the self – cleaning process.

   • Time – Based Trigger: In cases where the fluid quality is relatively good and the pressure difference does not increase significantly, the filter initiates self – cleaning based on a pre – determined operation time (e.g., 8 – 24 hours). This regular cleaning schedule helps maintain the optimal filtration performance of the columns.

III. Product Features

IV. Technical Parameters

V. Application Fields

1. Industrial Water Treatment

   • Power Plants: Used for filtering cooling water, boiler feedwater, and condensate water. It effectively removes impurities such as scale, corrosion products, and suspended solids, protecting critical equipment like condensers, boilers, and turbines, and ensuring the safe and efficient operation of power generation systems.

   • Petrochemical Plants: Filters process water, chemical raw materials, and recycled water in petrochemical production processes. It helps remove catalyst particles, oil droplets, and organic contaminants, ensuring the stability of chemical reactions and product quality.

2. Chemical Processing

   • Raw Material Filtration: In chemical manufacturing, it filters raw materials to remove impurities, ensuring the purity of feedstock and improving the yield and quality of chemical products. For example, in the production of polymers, it can remove fine particles and contaminants from monomers.

   • Product Filtration: Filters the final chemical products to meet strict quality control standards, removing any residual impurities that may affect product performance or appearance.

3. Food and Beverage Industry

   • Production Water Filtration: Ensures the safety and hygiene of production water by removing microorganisms, suspended solids, and organic substances. This is crucial for maintaining the quality and shelf – life of food and beverage products, such as bottled water, juices, and dairy products.

   • Product Filtration: Filters food and beverage products themselves to improve clarity, remove sediment, and enhance product quality. For instance, in the production of beer and wine, it can remove yeast cells and other particles to improve the appearance and taste.

VI. FAQ

1. How does the multi – column self – cleaning filter ensure continuous filtration during the self – cleaning process?
   The filter uses a parallel – column structure. When the self – cleaning process starts, only one or a few columns are isolated for cleaning at a time, while the remaining columns continue to operate normally. This design allows the filter to maintain a continuous supply of purified fluid without significant interruption to the overall filtration process.

2. Can the filtration precision of the multi – column self – cleaning filter be adjusted?
   Yes, the filtration precision can be adjusted by changing the filter media installed in the columns. We offer a variety of filter media with different pore sizes, ranging from 5 – 3000 microns. Users can select the appropriate filter media according to their specific fluid treatment requirements.

3. What should be done if the pressure difference of the filter increases abnormally during operation?
   First, check whether the inlet and outlet valves are fully open and if there are any blockages in the pipelines. Then, monitor the operation status of each filter column. If the abnormal pressure difference persists, it may indicate that the self – cleaning system is malfunctioning or the filter media is severely blocked. In this case, it is recommended to stop the filter, check the self – cleaning control system and the filter media, and contact our technical support team for further assistance if necessary.

VII. Conclusion

The multi – column self – cleaning filter is a cutting – edge solution for high – flow and continuous fluid filtration needs. Its unique multi – column structure, intelligent self – cleaning technology, and excellent performance features make it an ideal choice for a wide range of industries. Whether it is to ensure the smooth operation of industrial production, maintain the quality of food and beverages, or contribute to municipal water treatment, this filter provides a reliable, efficient, and cost – effective filtration solution. Choosing our multi – column self – cleaning filter means choosing a high – quality product that will enhance the efficiency and reliability of your fluid treatment processes.

If you are interested in this product or have any questions, please feel free to contact us at any time.
