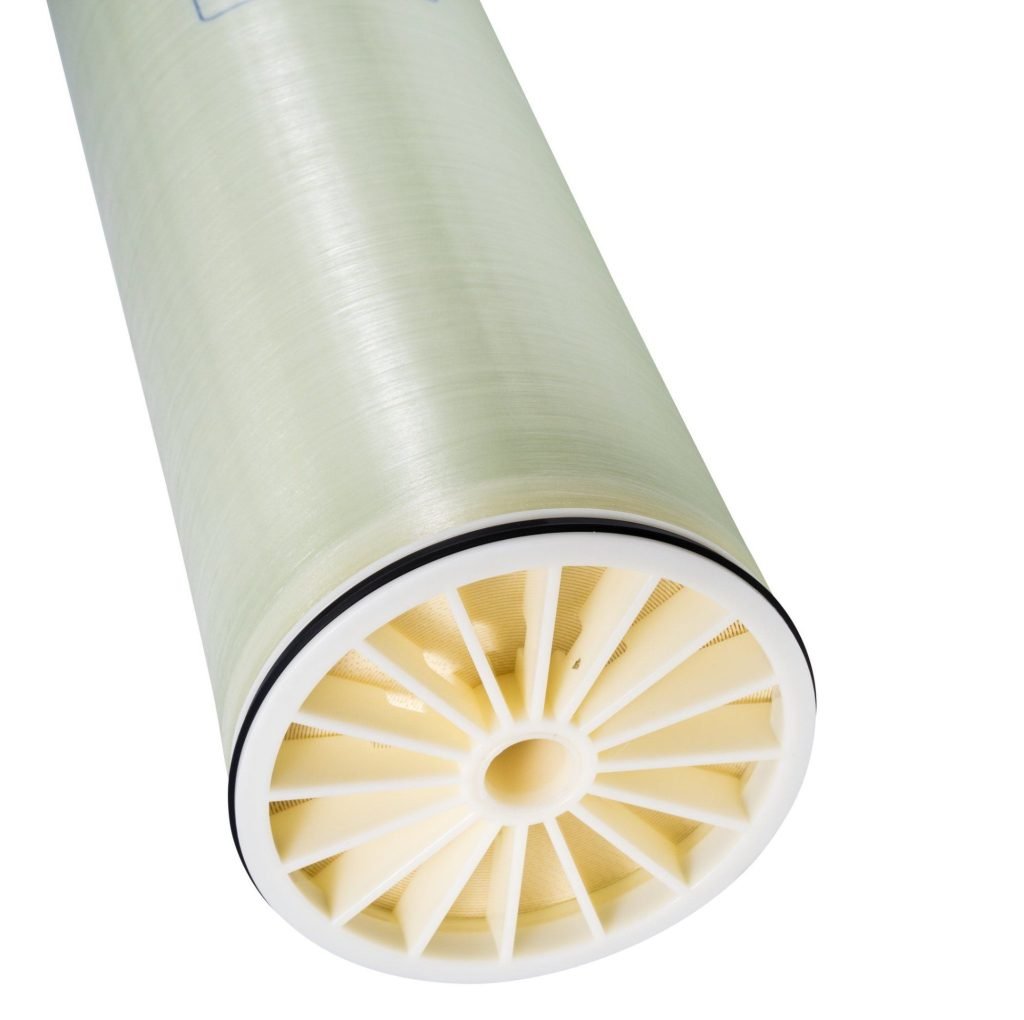

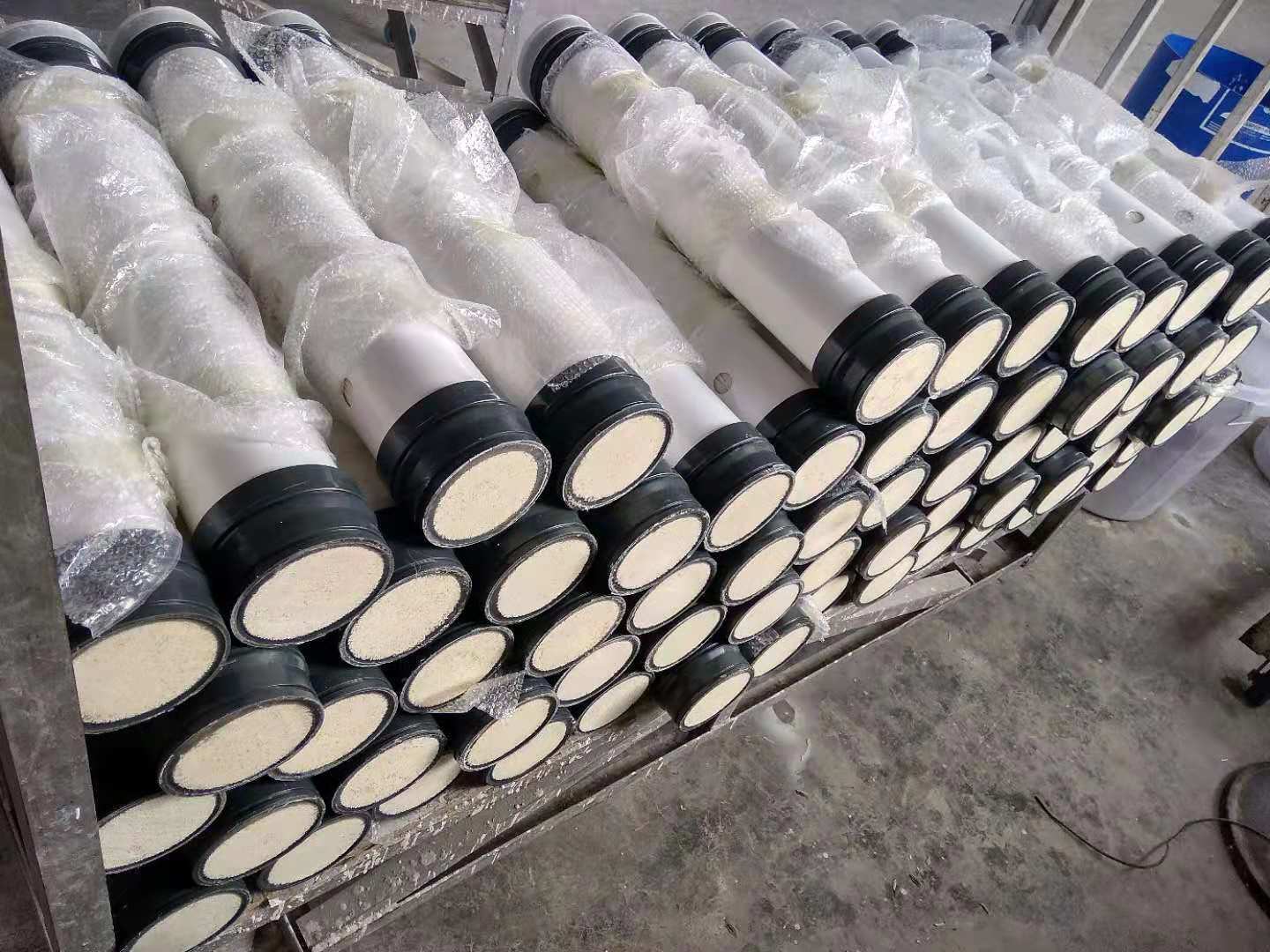

Food and pharmaceutical production water have strict microbial control standards. Ordinary PVDF UF membrane easily breeds microorganisms inside fiber cavities during static shutdown. Our PAN alloy internal pressure ultrafiltration element adopts permanent hydrophilic fiber formula with fiber breakage rate controlled below three per thousand, no long-term flux decay after repeated hot water and food-grade weak acid cleaning. It efficiently intercepts coliform bacteria and macromolecular organics, supplying sterile low-turbidity inlet water for LF-ULP and LF-BW food-grade RO membrane. All raw materials comply with FDA food contact standards with no toxic precipitation during long continuous operation.
All PAN internal pressure UF membrane and matched food-grade RO membrane models are sorted in our water filter element.
Core Product Parameters & Series
1. LF-UF-4021: Membrane area 2.0㎡, cross/dead-end dual operation
2. LF-UF-4040: Membrane area 4.0㎡, standard small food machine match
3. LF-UF-160B: Membrane area 13.7㎡, medium food factory line
4. LF-UF-8040: Membrane area 21㎡, large beverage production equipment
Material: Modified PAN alloy fiber, molecular weight cutoff 50,000–100,000 Dalton
Main Application Scenarios
1. Bottled mineral water factory raw water sterile pretreatment
2. Dairy and fruit juice production process water purification equipment
3. Pharmaceutical factory oral liquid purified water production line
4. Laboratory small sterile water preparation machine
5. Large catering central kitchen pure water system
6. Beverage bottle sterile cleaning water equipment
Key Performance Advantages
1. Permanent hydrophilic fiber without long-term flux decline
2. Ultra-low fiber breakage rate less than 3‰ for stable long-run operation

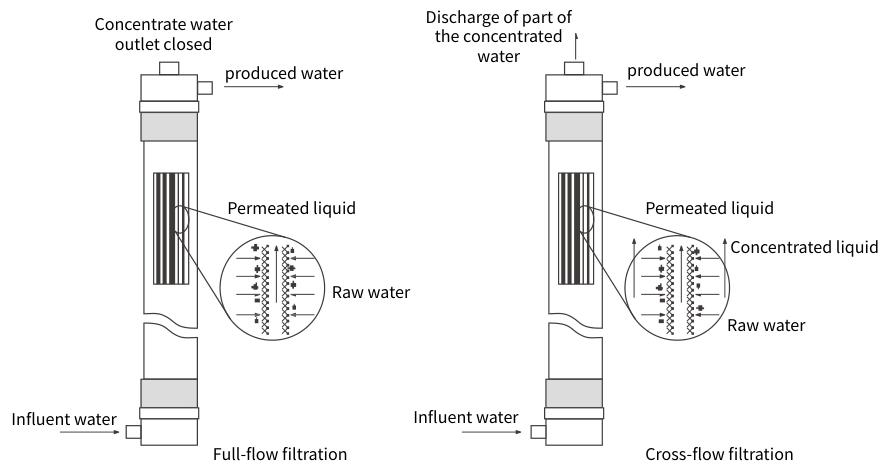

3. Support dead-end and cross-flow two optional operation modes
4. Easy hot water & food weak acid cleaning without organic residue
5. Compact small module fits narrow food equipment layout
6. Perfect matched LF-ULP & LF-BW food-grade RO membrane
We can provide complete FDA material certification documents for food export manufacturers and design compact dual-membrane integrated schemes according to factory workshop space restrictions.
If you are interested in our membrane solutions, please contact us.
