Introduction

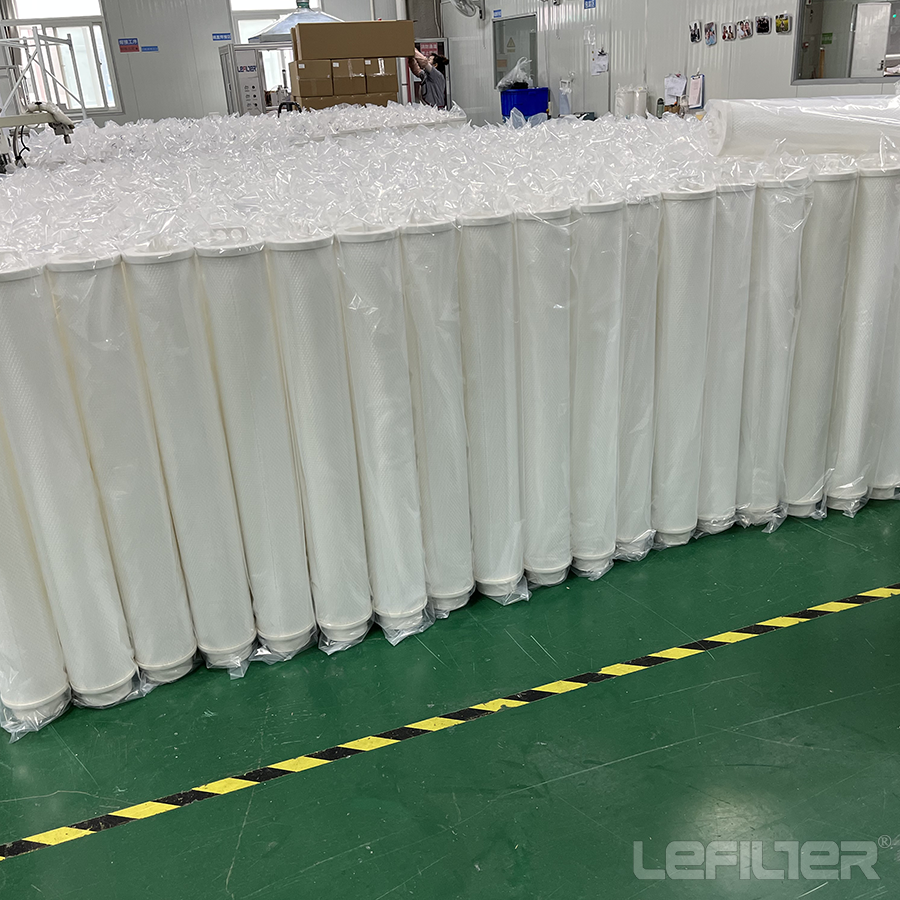

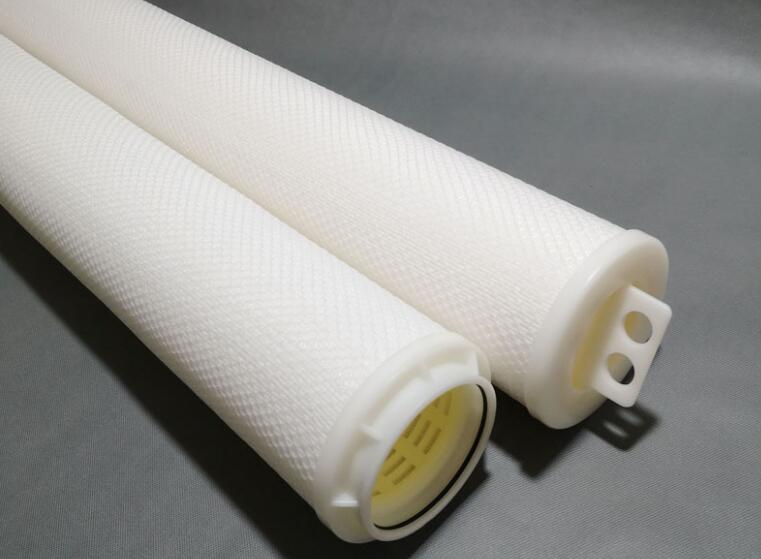

LEFILTER, a leading Chinese manufacturer specializing in industrial fluid purification solutions, introduces the Replacement Parker High-Flow Filter Element, designed as a direct replacement for Parker’s Fulflo® MegaFlow™ cartridges. Engineered to meet or exceed Parker’s performance standards, this product offers superior flow capacity, durability, and cost efficiency for critical applications such as aviation fuel systems, reverse osmosis pre-filtration, and industrial fluid processing.
Product Structure
The Replacement Parker High-Flow Filter Element features a robust design optimized for high-flow environments:
- Media Options:
- Polypropylene (PP) microfiber or cellulose with phenolic binder for aqueous and non-aqueous fluids.
- Support Layers:
- PP support layers for structural integrity (PP media) or none (cellulose media).

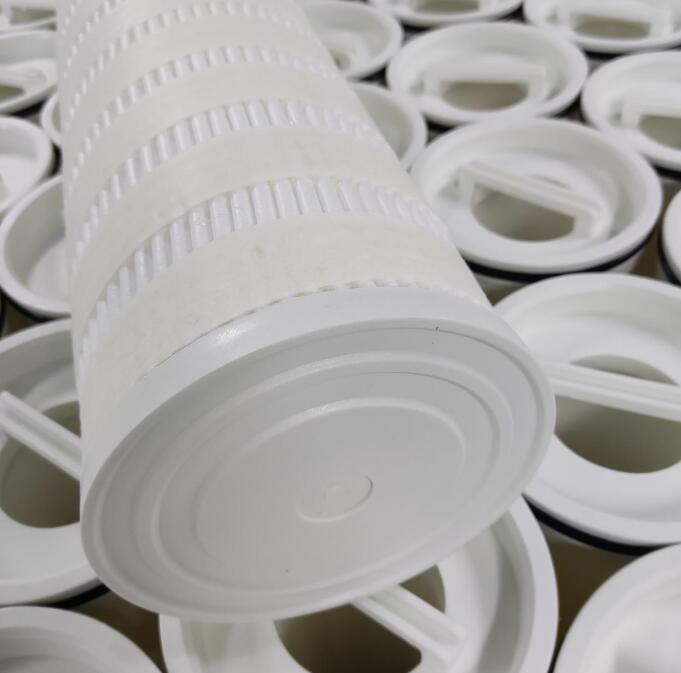

- End Caps:
- Glass-filled polypropylene for strength and chemical resistance.
- O-Ring Seals:
- Buna-N, EPDM, Silicone, or Viton® for leak-proof installation.
- Built-in Handle:
- Facilitates quick and safe cartridge replacement.
Application in Aviation Industry
The Replacement Parker High-Flow Filter Element is critical for aviation applications:
- Fuel System Protection:
- Removes water, particulates, and contaminants from jet fuel to prevent engine damage.
- Ensures compliance with aviation fuel standards (e.g., ASTM D1655).
- Hydraulic Systems:
- Protects hydraulic fluids from contamination, ensuring smooth operation of flight controls.
- High Reliability:
- Withstands extreme temperatures and pressures in aviation environments.
Other Industrial Applications
- Reverse Osmosis Pre-Filtration:
- Protects RO membranes from particulates in water treatment plants.
- Lubricating Oil & Coolants:
- Maintains fluid quality in machinery and industrial processes.
- Power Generation:
- Prevents scaling and corrosion in boilers and cooling systems.
- Petrochemical Industry:
- Purifies crude oil, diesel, and gasoline in refineries.
Working Principle
The filter operates through three stages:
- Mechanical Filtration:
- Multi-layer media traps particles as fluid passes through.
- Depth Filtration:
- Porous structure captures smaller contaminants within the media layers.
- Surface Filtration:
- Membrane layer ensures high-efficiency removal of fine particulates.
Key Advantages
- High Flow Capacity:
- Handles up to 175 GPM (662 LPM), reducing cartridge count by 8x compared to standard 2.5” OD filters.
- Low Pressure Drop:
- Pleated design with 55–60 ft² (5.1–5.6 m²) surface area minimizes energy loss.
- Durable Construction:
- Thermally bonded media prevents particle shedding and ensures consistent filtration.
- Material Flexibility:
- Polypropylene (FDA-compliant) and cellulose options for diverse fluid types.
- Leak-Proof Design:
- Positive O-ring seals ensure filtration integrity.
- Easy Maintenance:
- Built-in handle enables safe and rapid cartridge replacement.
Technical Parameters
| Parameter | Specification |
|---|---|
| Filtration Rating | 0.5, 1, 5, 10 µm (nominal) |
| Cartridge Length | 40” (1016 mm) |
| Dimensions | OD: 6” (152 mm), ID: 3.5” (89 mm) |
| Max Flow Rate | 175 GPM (662 LPM) |
| Max Temperature | 200°F (93°C) |
| Max Differential Pressure | 150 PSID (10 bar) |
| Media Materials | Polypropylene (PP), Cellulose |
| End Cap Material | Glass fiber-reinforced PP |
| O-Ring Materials | Buna-N, EPDM, Viton®, Silicone |
| Surface Area | 55–60 ft² (5.1–5.6 m²) |
Why Choose LEFILTER’s Replacement Parker High-Flow Filter Elements?
- Cost Efficiency:
- Up to 30% lower cost than Parker OEM cartridges without compromising performance.
- Perfect Compatibility:
- Interchangeable with Parker’s Fulflo® MegaFlow™ systems.
- Global Compliance:
- Meets ISO 9001, ISO 14001, and FDA standards for food and pharmaceutical applications.
- Reliable Performance:
- Thermally bonded media prevents particle shedding and ensures consistent filtration.
Conclusion
LEFILTER’s Replacement Parker High-Flow Filter Element delivers superior performance, durability, and cost savings for aviation, water treatment, and industrial processes. With its high flow capacity, easy maintenance, and versatile media options, it is the ideal choice for businesses seeking to optimize filtration efficiency while reducing operational costs.
