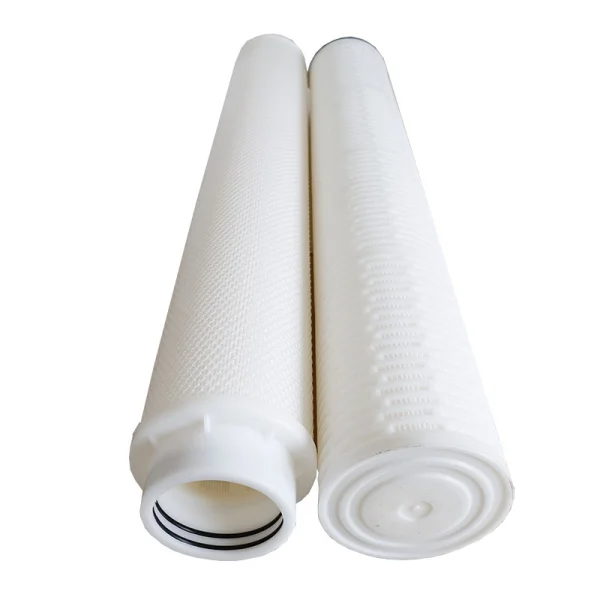

Parker High Flow Replacement Filter
Use pH
1-13
Maximum differential pressure
2.0Bar
Overspeed accuracy
1μm、3μm、5μm、10μm、25μm、50m、100μm
Interface form
flat press-in type (other interfaces can be added)
Gasket/Seal
Silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber
Introduction
PARKER high flow filter provides a filtering scheme which can effectively replace deep and other inner diameter 2 1/2’’ forms in heavy-flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. The capacity of a Parker filter is equivalent to 10 filters with diameter 2 1/2’’, length 40’’. Positively charges type O sealing ring and a build-in handle make the filter installation fast, safe and convenient.
Features
1)Great capacity of impurity and long life.
2)Less replacement saves labor cost.
3)Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
4)Easier installment and lower labor cost.
5)They are applied in various fields with their extensive chemical applications.
Technical Parameter
1)Parts materials:
Filter material: pleated fiberglass, pleated deep polypropylene (PP)
Supporting/diversion layer: polypropylene (PP)
End caps: reinforced polypropylene with fiberglass
Sealing material: EPR, PTFE fluororubber
2)Performance of filter element:
Filtering accuracy: 1micron, 4.5micron, 6micron, 10micron, 20micron, 40micron, 70micron, 100micron
Highest operating temperature: 80℃
Maximum pressure drop: 3.4bar, 20℃
Recommended maximum filtering water flow: 1300L/min
Application
1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent and water in bio-pharmacy industry
4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
