Product Introduction

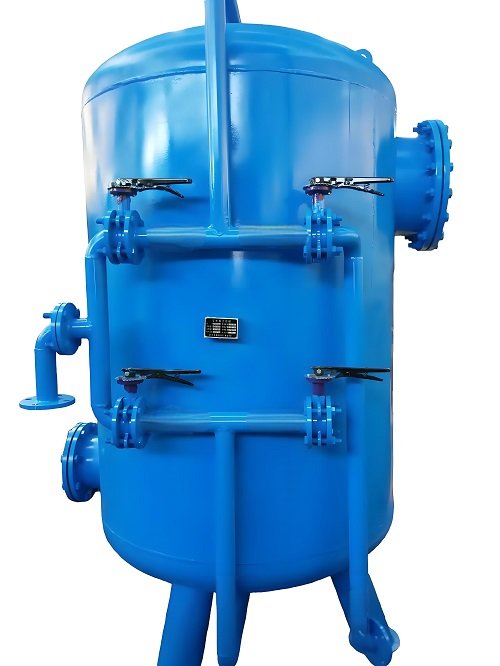

The quartz sand filter is a filtration device that uses quartz sand as the filter medium. It usually has a cylindrical tank structure on the outside, and the inside is filled with quartz sand of different specifications. Its overall structure is simple yet highly practical. The outer shell is sturdy and durable, enabling it to adapt to various complex installation environments. It mainly filters impurities, suspended solids, and other substances in the water flow through physical interception and adsorption by quartz sand, thus achieving the purpose of purifying water quality. Moreover, it is easy to operate and relatively simple to maintain on a daily basis. Whether it’s for small-scale water treatment projects or large-scale industrial application scenarios, it can play an important role and contribute to ensuring clean water quality.
Product Technical
The materials commonly used for the tank include carbon steel and stainless steel, which can be selected according to different usage environments and requirements. The filtration rate is generally around 8 – 15 cubic meters per hour, and the specific value will vary depending on factors such as the specifications of the filter medium and the quality of the influent water. The particle size of the quartz sand filter medium is usually between 0.5 – 2 millimeters. The combined use of different particle sizes can achieve a more precise filtering effect. The working pressure range of the equipment is mostly set between 0.2 – 0.6 megapascals, enabling it to operate stably within this pressure range and ensuring the smooth progress of the filtration work.
Product Features
The quartz sand filter has remarkable performance characteristics. Firstly, it has a good filtering effect. It can remove most of the suspended solids, colloids, organic substances, and other impurities in the water, effectively reducing the turbidity of the water and making the treated water reach a relatively high level of clarity. Secondly, it operates stably and reliably. Thanks to its reasonable structural design and mature filtration process, it seldom breaks down during long-term operation and can continuously provide users with stable filtration services. Thirdly, it has a long service life. High-quality quartz sand filter media and a sturdy tank make the entire equipment highly durable. As long as proper maintenance is carried out, it can be put into use for a long time. Fourthly, the cost is relatively low. Whether it’s the purchase cost of the equipment or the subsequent operation and maintenance costs, compared with some other high-end and complex filtration equipment, it has obvious advantages, which also makes it cost-effective in many fields.
Working Principle
When water containing impurities enters the quartz sand filter, the water flow passes through the quartz sand filter layer from top to bottom. During this process, larger suspended particles will first be intercepted by the pores of the quartz sand. As the water flow continues downward, smaller impurities will also be adsorbed on the surface of the quartz sand or further intercepted. After layers of filtration, the clear water flows out from the outlet at the bottom of the filter, while the intercepted impurities will be discharged out of the filter during the regular backwashing process, thereby ensuring the continuous and effective filtration capacity of the filter.
Application Fields
In the treatment of drinking water, the quartz sand filter can conduct preliminary filtration on raw water, removing visible impurities such as sediment and rust in the water, laying a good foundation for subsequent more refined purification processes and ensuring that residents can drink clean and hygienic drinking water. In the industrial circulating water system, it can filter impurities in the cooling water, prevent the formation of scale and the corrosion of equipment, extend the service life of the equipment, and improve the efficiency and stability of the entire industrial production. In the treatment of swimming pool water, it can quickly remove impurities such as hair and dander in the water, keeping the swimming pool water clear and transparent and providing people with a comfortable swimming environment. Meanwhile, the quartz sand filter also plays an indispensable role in many fields such as sewage treatment and agricultural irrigation water treatment, helping various industries to realize the rational utilization and effective purification of water resources.
Conclusion
With its excellent performance, reliable working performance, and wide application fields, the quartz sand filter has become one of the most favored devices in the water treatment industry. It can not only meet the basic requirements for water quality purification in different scenarios but also has outstanding advantages in cost control and ease of operation. It is believed that with the continuous development of technology, the quartz sand filter will continue to shine in more fields and contribute more to ensuring the cleanliness and rational utilization of water resources.If you are interested in this product or have any questions, please feel free to contact us at any time.
