Introduction

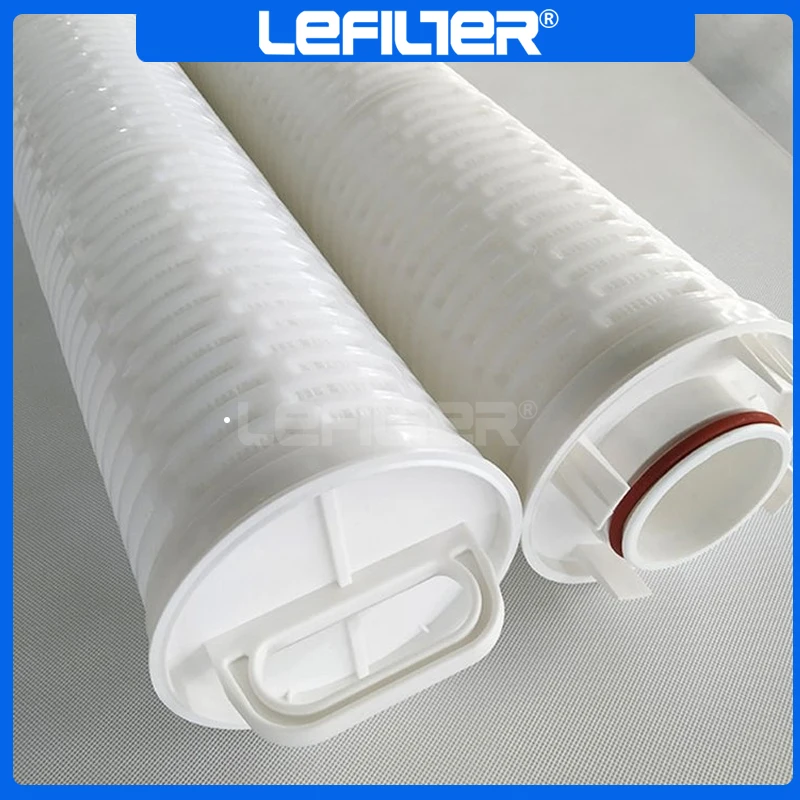

The 3M High – Flow Filter Element is engineered to deliver efficient contaminant removal in high – volume industrial fluid systems. It actively captures particulates, colloids, and organic matter from water, oil, and chemical streams, ensuring equipment protection and process reliability. Designed with advanced microfiber media and a reinforced structure, this filter element balances high flow rates with superior filtration efficiency. Its modular design allows seamless integration into existing systems, making it ideal for manufacturing, energy, and water treatment applications.
Features
- Active High – Flow Filtration: Handles up to 500 m³/h while maintaining 99.9% particle removal ≥ 5 μm
- Multi – Layer Media: Combines depth and surface filtration for broad contaminant capture
- Corrosion – Resistant Construction: Uses polypropylene and stainless steel components
- Low Pressure Drop: Reduces energy consumption by 15% compared to standard filters
Suggested Operating Conditions
| Parameter | Value | Notes |
|---|---|---|
| Temperature | – 20°C to 80°C | Optimal performance range |
| Max Pressure | 1.5 MPa (218 psi) | Maximum working pressure |
| Flow Rate | Up to 500 m³/h | Nominal capacity |
| pH Range | 1 – 13 | Wide chemical compatibility |
| Particle Size | ≥ 0.5 μm | Effective separation threshold |
Applications
Industrial Manufacturing
- Semiconductor Production: Filters ultrapure water for wafer cleaning
- Metalworking: Cleans coolants to extend tool life by 30%
- Paint Spraying: Removes particulates from coatings to improve finish quality
Energy Sector
- Power Plant Cooling: Prevents condenser fouling in thermal systems
- Hydraulic Fracking: Cleans fracturing fluids for reuse
- Renewable Energy: Protects solar thermal fluids from degradation
Water Treatment
- Municipal Pre – treatment: Reduces solids load before RO systems
- Seawater Desalination: Removes marine debris from intake water
- Industrial Recirculation: Maintains clean process water for reuse
Food & Beverage
- Brewing: Clarifies beer and removes yeast particles
- Dairy Processing: Polishes milk streams for cheese production
- Bottled Water: Ensures microbiological safety and clarity
Technical Data
| Parameter | Value |
|---|---|
| Filtration Rating | 0.5 – 100 μm |
| Beta Ratio | β5 = 1000 |
| Media Material | Polypropylene microfiber composite |

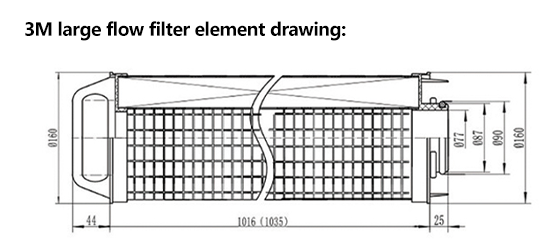

| Element Dimensions | 40 – 120 inches length × 4 – 12 inches diameter |
| Weight | 2 – 15 kg |
Conclusion
The 3M High – Flow Filter Element sets a new standard for industrial fluid purification, combining high – volume capacity with superior contaminant removal. Its advanced media technology, robust construction, and energy – efficient design make it suitable for diverse applications. By protecting equipment, improving product quality, and reducing downtime, this filter element helps operators achieve operational excellence. Whether in manufacturing, energy, or water treatment, the 3M High – Flow Filter Element delivers reliable performance and long – term value.
