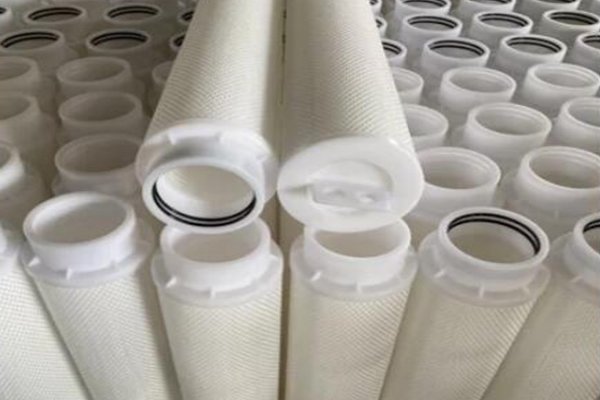

The high-flow folding filter uses deep fine polypropylene or glass fiber membrane as the filter material. It has a large diameter of 6 inches / 152mm, no central rod, one-way opening, and specially designed inside-to-outside filter direction to ensure all pollution. The particles are trapped inside the filter element. The ultra-large flow design significantly reduces the amount of filter cartridges and filter housing , greatly reducing equipment input costs and labor costs.
This filter cartridge features a melt-blown polypropylene (PP) depth filtration media, effectively removing sediment, rust, silt, and other particulate contaminants from water. Its high-flow design allows for maximum flow rates up to 60 GPM (gallons per minute), making it ideal for large-scale water treatment systems, cooling towers, pre-filtration for reverse osmosis (RO), and process water applications.
This cartridge is commonly used in power plants, chemical processing, food & beverage production, and municipal water treatment where reliable, high-flow filtration is critical. For optimal performance, pair with a compatible filter housing and monitor pressure drop to determine replacement intervals.
Product properties:
1.Great capacity of impurity and long life.
2.Less replacement saves labor cost.
3.Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
4.Easier installment and lower labor cost
5.They are applied in various fields with their extensive chemical applications.
The material:
1.Filter material: glass fiber, polypropylene（PP）,
2.Support/Diversion layer: polypropylene（PP）

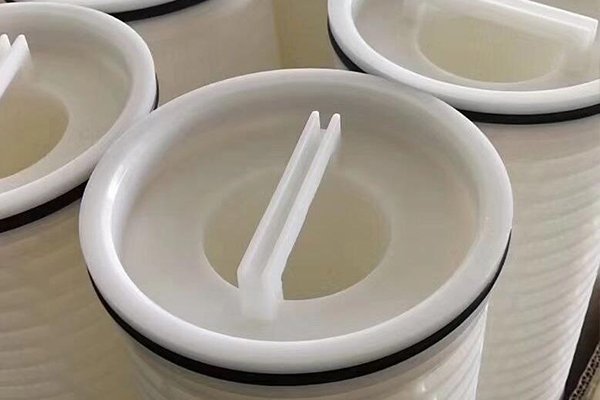

3.The end cap: reinforced polypropylene with glass fiber
4.Seal ring material: EPR (Ethylene-Propylene Rubber), silicon rubber, nitrile rubber, fluorine rubber
Performances of filter elements:
1.Filtering accuracy:1μm、5μm、6μm、10μm、20μm、40μm、70μm、100μm
2.Highest operating temperature: 82℃
3.Maximum pressure drop: 3.4bar，82℃
4.Recommended maximum filtering water flow: 1300LPM
Stainless Steel Filter Housing Specification:
Material: SUS304L, SUS316, SUS316L
Cartridge Capacity: 1 element, 3 element.. 160 element
Connection Available: Flange, clamp, Lifting bolts
Cartridge Configuration Accepted: 222/Fin, 226/Fin, DOE, etc.
