SR90-400i Nanofiltration Membranen for Offshore Sulfate

SR90-400i Nanofiltration Membranen for Offshore Sulfate

The SR90-400i Nanofiltration Membranen is primarily used for water treatment in the oil and gas industry, effectively removing sulphates to prevent them from reacting with barium and strontium in formation water, avoiding shutdowns and production reductions caused by insoluble compounds clogging up oil wells.

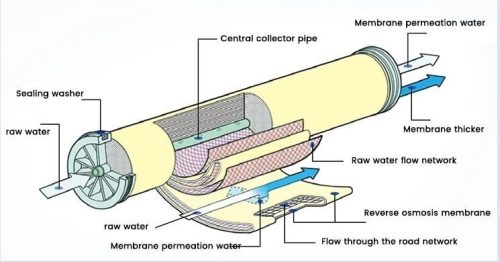

SR90-400i Nanofiltration Membranen For Offshore Sulfate 1

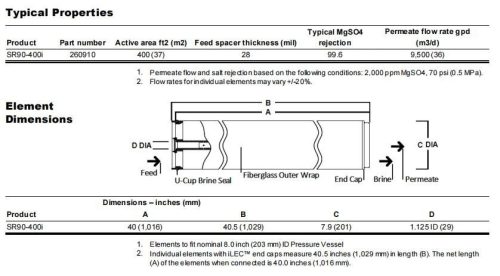

SR90-400i Nanofiltration Membranen For Offshore Sulfate 2

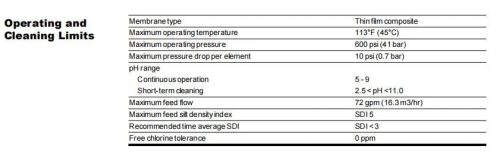

SR90-400i Nanofiltration Membranen For Offshore Sulfate 3

The nanofiltration membrane operates very efficiently at low pressures and also removes all particles larger than 0.001 microns, resulting in high quality injection water that is free of silica and bacteria, thus ensuring sustained injection rates that reflect initial reservoir conditions.

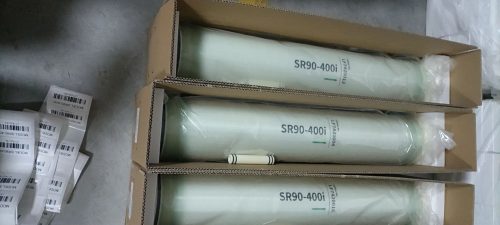

SR90-400i Nanofiltration Membranen For Offshore Sulfate 4

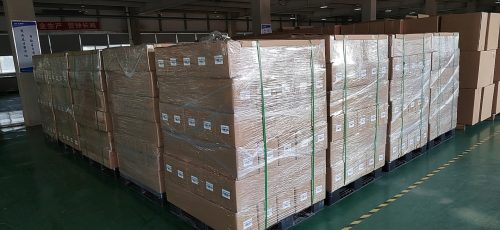

SR90-400i Nanofiltration Membranen For Offshore Sulfate 5

The SR90-400i Nanofiltration Membranen offers distinct advantages for seawater driven sulphate removal in oil production:

Excellent sulphate removal

High flux and recovery rates, minimising footprint and weight

Removal of particulate matter

Good cleanability and long service life

Protection of the customer’s equipment, with a positive impact on stable oil production
