Stainless Steel Multi-Media Filter with Carbon & Quartz Sand a Grade Motor & Gearbox 1 Year Warranty

Product description

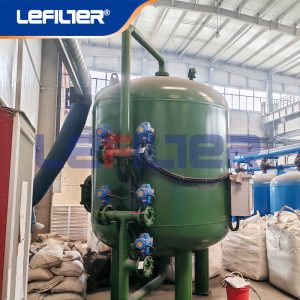

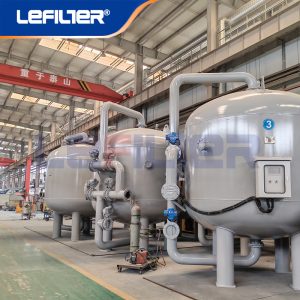

Quartz sand filtration is an effective means to remove suspended substances in water. It is an important unit in advanced sewage treatment, sewage reuse and water supply treatment. Its function is to further remove the flocculated pollutants in the water. function to achieve the purpose of water purification. This type of equipment is a steel pressure flter. The filter material of quartz sand filter is generally single-layer quartz sand, the particle size is 0.8~1.2mm, and the height is usually 1.0~1.2m.

Technical parameter:

Design pressure: 6kg f/cm², test pressure:9 f/cm²
Inlet water temperature: 20℃
Running flow rate: 10m3/h
Eluent quality When the influent turbidity is <20mg/L,the effuent turbidity is<5mg/L
Backwash intensity: Quartz sand 15~18L/S m²
