Replacement Pall High-Flow Filter Element Applied In The Petrochemical Industry

Introduction

The replacement of pall with a high-flow filter Cartridges stand as a paragon of excellence in the filtration realm, meticulously crafted to address the most demanding high – volume filtration requirements across diverse industries. Engineered with a blend of cutting – edge technology and innovative design principles, these cartridges redefine the standards of filtration performance.

At the heart of the Pall High – Flow Filter Cartridges lies a state – of – the – art filtration mechanism. This advanced technology is capable of achieving an unparalleled level of precision, effectively capturing and removing even the tiniest of particles suspended within the fluid stream. Whether it’s minuscule debris, bacteria, or fine – sized contaminants, the cartridges leave no room for impurities, guaranteeing a consistently pure and clean filtrate output. This not only enhances the quality of the end – product but also safeguards downstream equipment from potential damage caused by particulate matter.

One of the most remarkable features of these cartridges is their ability to maintain an impressively high flow rate. Through a unique structural design and the utilization of specialized filter media, the Pall High – Flow Filter Cartridges can handle large volumes of fluid with ease, all while sustaining exceptional filtration efficiency. This means that industries requiring continuous and high – volume fluid processing, such as oil and gas, power generation, and large – scale water treatment, can rely on these cartridges to optimize their operations without any compromise on filtration quality. As a result, it becomes a highly cost – effective solution, reducing the need for frequent system shutdowns and replacements.

The cartridge design itself is a testament to user – friendliness and practicality. With a focus on simplifying maintenance procedures, the Pall High – Flow Filter Cartridges are engineered for effortless installation and replacement. This streamlined process significantly cuts down on operational downtime, allowing businesses to keep their filtration systems up and running with minimal disruption. Moreover, the cartridges are constructed from high – quality, durable materials that can withstand the rigors of even the harshest operating environments. Whether it’s exposure to extreme temperatures, high pressures, or corrosive substances, these cartridges remain resilient, ensuring a long – service life and reliable performance over time.

In summary, the Pall High – Flow Filter Cartridges offer a comprehensive filtration solution that combines superior performance, high – flow capabilities, ease of use, and durability. They are the go – to choice for industries seeking to enhance their filtration processes, improve product quality, and optimize operational efficiency.

Specification：

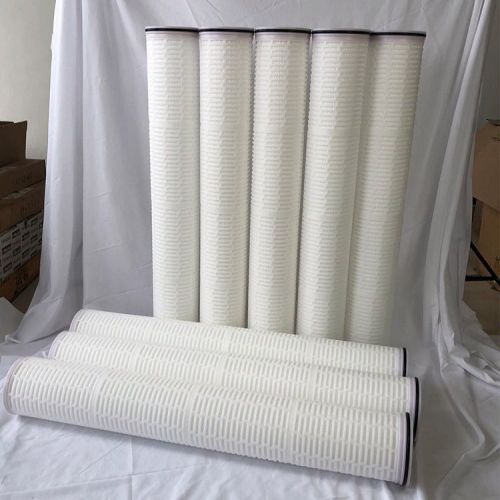

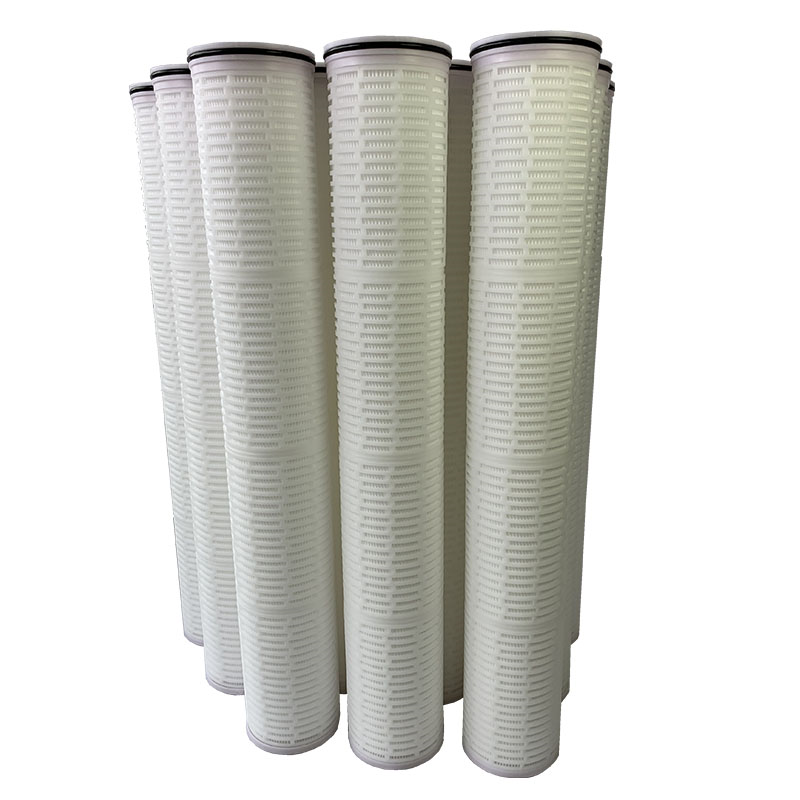

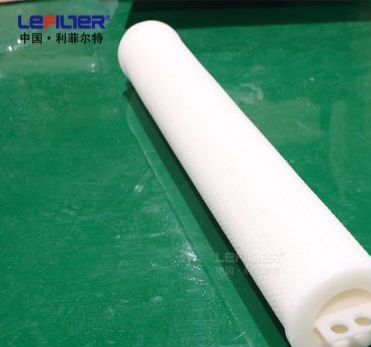

Outer Diameter：Typically 6 inches (152mm), this relatively large diameter design helps to achieve high – flow filtration.

Length Specifications：Multiple options are available, including 20 inches (528mm), 40 inches (1022mm), and 60 inches (1538mm), to meet the space and filtration volume requirements of different systems.

Filtration Accuracy：It can provide a variety of filtration accuracy levels from 1 – 100μm. For example, 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm, etc. According to different application scenarios and filtration needs, impurities, particles, and other pollutants of corresponding particle sizes can be accurately removed to ensure that the filtered fluid reaches the required purity standard.

Material – related

Filter Material:Commonly used materials include polypropylene (PP), which has good chemical compatibility and can adapt to the filtration of various chemical liquids; glass fiber has higher filtration efficiency and is suitable for applications with extremely high requirements for the purity of the filtrate, such as the pharmaceutical and electronics industries; there are also special composite media, such as polypropylene / polyethersulfone membranes, etc., to meet the special filtration needs under different working conditions.

Support Material:Generally, polypropylene is used to provide stable support for the filter medium and ensure the structural integrity of the filter medium under high – flow and high – pressure conditions.

End – cap Material:Reinforced polypropylene or glass – fiber – reinforced polypropylene is mostly used to enhance the strength of the end – cap and ensure the stability of the filter cartridge during installation and use.

Inner Skeleton Material:Also made of polypropylene, it plays a role in supporting the entire structure of the filter cartridge, enabling it to withstand certain pressure and mechanical stress.

O – ring Material:The default is silicone rubber. Ethylene – propylene rubber, nitrile rubber, fluororubber, and Teflon rubber can also be selected according to actual needs to adapt to different working temperatures and chemical environments, ensure good sealing performance, and prevent fluid leakage.

Working ConditionsWorking Temperature:When using polypropylene medium, the general working temperature can reach 82℃; if glass – fiber medium is used, under specific conditions, the maximum working temperature can reach 121℃. However, it should be noted that for the glass – fiber medium in the aqueous system, the maximum temperature is usually 65℃.

Working Pressure Difference:Under normal working conditions, at 82℃, the maximum pressure difference can reach 3.4bar (about 0.34MPa); for the glass – fiber medium at 121℃, the maximum pressure difference is also 3.4bar.

Replacement Pressure Difference:It is recommended to replace the filter cartridge when the pressure difference reaches 2.4bar at 20℃ to ensure the filtration efficiency and the normal operation of the system and avoid increased energy consumption or filter cartridge damage caused by excessive pressure difference.

Flow Parameters:The flow rates of filter cartridges with different lengths vary. For example, the recommended maximum water flow rate of a 20 – inch filter cartridge is about 175 US gallons per minute (gpm), which is about 663 liters per minute (L/min); a 40 – inch filter cartridge is about 350gpm, that is 1325L/min; a 60 – inch filter cartridge is about 500gpm, that is 1900L/min. These flow data indicate that it can meet the needs of high – flow filtration systems and improve production efficiency.

Advantages

1. High-Efficiency Filtration Performance：
Pall high-flow filter cartridges utilize high-performance filter materials such as polypropylene (PP) and polyethersulfone (PES), combined with a multi-layer pleated design, significantly increasing the effective filtration area. This design not only enhances filtration efficiency but also allows for processing larger flow rates in a single filtration cycle, with a single cartridge capable of handling flow rates of 70m³/h to 110m³/h, making it suitable for high-flow applications.

2. Long Service Life and Low Maintenance Costs：
The pleated structure and high-quality filter materials provide excellent dirt-holding capacity, enabling the cartridge to maintain high filtration efficiency over extended periods and reducing replacement frequency. Additionally, its design minimizes pressure drop, extending service life and significantly lowering maintenance and operational costs.

3. Wide Range of Applications：
Pall high-flow filter cartridges are suitable for various industries, including RO pre-filtration, seawater desalination pretreatment, power plant condensate filtration, biopharmaceuticals, and petrochemicals. Their excellent chemical compatibility allows them to filter strong acids, strong alkalis, and organic solvents, meeting the filtration needs of different media.

4. Environmental and Safety Compliance：
The cartridges are manufactured using a glue-free thermal welding process, eliminating the release of chemical contaminants and complying with strict standards in the medical and food industries. Their materials and structure meet U.S. FDA standards, ensuring safety and environmental friendliness during the filtration process.

5. Cost-Effectiveness and Replacement Advantages：
Pall high-flow filter cartridges can fully replace imported cartridges such as the HFU series, 3M series, and Parker series, offering more competitive pricing. Their high cost-performance ratio and broad applicability make them a preferred choice for many users.

Summary：
Pall high-flow filter cartridges stand out as an ideal choice in the industrial filtration field due to their high-efficiency filtration, long service life, wide applicability, environmental and safety compliance, and cost-effectiveness. Whether from a performance or cost perspective, they provide users with exceptional filtration solutions.

Application in the Petroleum Industry

1. Oilfield Water Injection Filtration：
In oilfield water injection processes, Pall high-flow filter cartridges are used to remove suspended particles, sediment, and other impurities from water, ensuring that the water injected underground meets required standards. Their high dirt-holding capacity and long service life significantly reduce the frequency of cartridge replacement, lowering maintenance costs.

2. Petrochemical Liquid Filtration：
Pall high-flow filter cartridges are widely used in the petrochemical industry for filtering various organic solvents, acids, alkalis, and other media. Their excellent chemical compatibility and high-precision filtration capabilities (1μm to 100μm) ensure liquid purity and the safe operation of equipment.

3. Fuel Filtration：
In fuel filtration systems for refueling equipment and construction machinery, Pall high-flow filter cartridges effectively remove particles and water from fuel, preventing equipment wear and clogging. Their high-flow design (with a single cartridge capable of handling up to 110m³/h) meets the efficient filtration needs of fuel systems.

4. Pre-Filtration for Heavy Oil Combustion Systems：
In heavy oil combustion systems, Pall high-flow filter cartridges are used for pre-filtration to remove water, ensuring combustion efficiency and extending equipment service life. Their stainless steel woven mesh and perforated plate materials can withstand high pressure and highly corrosive environments, making them suitable for complex industrial conditions.

5. Oilfield Reinjection Water Treatment：
Pall high-flow filter cartridges play a crucial role in oilfield reinjection water treatment, using deep filtration technology to remove suspended impurities and ensure that the reinjection water meets environmental standards. Their progressive pore size change design enhances dirt-holding capacity and extends the service life of the cartridges.

Summary：
With their advantages of high-efficiency filtration, long service life, broad applicability, and cost-effectiveness, Pall high-flow filter cartridges are widely used in the petroleum industry. Whether in oilfield water injection, fuel filtration, or heavy oil combustion systems, Pall high-flow filter cartridges provide reliable filtration solutions, helping the petroleum industry achieve efficient, safe, and environmentally friendly production goals.

Other Application Fields

1. Water Treatment Industry
– RO Pre-Filtration: In reverse osmosis (RO) systems, Pall high-flow filter cartridges are used in the pre-treatment stage to remove suspended particles, colloids, and other impurities from water, protecting RO membranes from contamination and extending their service life.
– Seawater Desalination Pre-Treatment: In seawater desalination processes, Pall high-flow filter cartridges are used to remove suspended solids and particles from seawater, ensuring the stable operation of subsequent equipment.
– Municipal Water Supply Filtration: Used in urban water supply systems to filter out sediment, rust, and other impurities, ensuring safe drinking water for residents.

2. Power Industry
– Power Plant Condensate Filtration: In power plants, Pall high-flow filter cartridges are used to filter metal particles and impurities from condensate water, preventing equipment corrosion and clogging, and improving power generation efficiency.
– Boiler Feedwater Treatment: Used in boiler feedwater systems to remove suspended solids and particles, ensuring safe boiler operation.

3. Biopharmaceutical Industry
– Pharmaceutical Liquid Filtration: In pharmaceutical processes, Pall high-flow filter cartridges are used to filter particles and microorganisms from liquid medicines, ensuring drug purity and safety.
– Purified Water Systems: Used in pharmaceutical purified water systems to remove particles and impurities, meeting GMP (Good Manufacturing Practice) requirements.

4. Food and Beverage Industry
– Beverage Filtration: In beverage production, Pall high-flow filter cartridges are used to filter water, fruit juices, and other liquids, removing suspended solids and particles to ensure product taste and quality.
– Beer Brewing: Used in beer brewing processes to filter wort and fermentation liquids, removing impurities and improving the clarity and taste of beer.

5. Electronics Industry
– Ultrapure Water Preparation: In the electronics industry, Pall high-flow filter cartridges are used in the pre-treatment stage of ultrapure water preparation to remove particles and impurities, ensuring the quality of ultrapure water.
– Cleaning Solution Filtration: Used for filtering cleaning solutions in semiconductor and electronic component manufacturing, removing particles and contaminants to ensure product quality.

6. Automotive Manufacturing Industry
– Coating Line Pre-Treatment: In automotive coating line pre-treatment processes, Pall high-flow filter cartridges are used to filter cleaning and degreasing solutions, removing particles and impurities to ensure coating quality.
– Coolant Filtration: Used for filtering coolants in automotive manufacturing processes, preventing equipment clogging and wear.

7. Chemical Industry
– Chemical Filtration: In chemical production, Pall high-flow filter cartridges are used to filter various chemicals, such as acids, alkalis, and solvents, ensuring product quality and equipment safety.
– Catalyst Recovery: Used in catalyst recovery processes to filter particles and impurities from liquids, improving recovery efficiency.

Summary
With their advantages of high-efficiency filtration, long service life, broad applicability, and cost-effectiveness, Pall high-flow filter cartridges are widely used in various fields, including water treatment, power, biopharmaceuticals, food and beverage, electronics, automotive manufacturing, and chemical industries. Whether from a performance or cost perspective, Pall high-flow filter cartridges provide users with exceptional filtration solutions.

Value Brought by the replacement of pall with a high-flow filter Cartridges to Customers

1. Reduced Operational Costs
– Long Service Life Design: The multi-layer pleated structure and progressive pore size design significantly extend the service life of the cartridges, reducing replacement frequency.
– Low Maintenance Requirements: High dirt-holding capacity and low-pressure drop design minimize maintenance costs and downtime.

2. Improved Production Efficiency
– High Flow Rate Handling: A single cartridge can handle flow rates of up to 70m³/h to 110m³/h, meeting high-flow demands and enhancing production efficiency.
– Stable Operation: High-efficiency filtration ensures stable equipment operation and reduces failure rates.

3. Ensured Product Quality
– High-Precision Filtration: Capable of filtering particles from 1μm to 100μm, ensuring liquid purity and meeting high industry standards (e.g., pharmaceutical and food industries).
– Safety and Reliability: Complies with international standards such as FDA, ensuring a safe and contamination-free filtration process.

4. Environmental Sustainability
– Reduced Waste: The long service life design decreases the frequency of cartridge replacement, reducing waste generation.
– Pollution-Free Process: Utilizes glue-free thermal welding technology, avoiding chemical contamination and meeting environmental requirements.

5. Wide Applicability
– Multi-Industry Applications: Suitable for various industries, including water treatment, petrochemicals, biopharmaceuticals, and food and beverage, providing a one-stop filtration solution.
– Compatibility with Multiple Media: Capable of filtering water, acids, alkalis, organic solvents, and more, meeting diverse needs.

6. Cost-Effectiveness and High Value
– Replacement for Imported Cartridges: Can fully replace imported cartridges (e.g., HFU series, 3M series) with comparable performance but more competitive pricing.
– Overall Cost Optimization： Helps customers optimize overall costs by reducing maintenance expenses, extending equipment life, and improving production efficiency.

Summary
The value brought by Pall high-flow filter cartridges to customers is reflected in cost reduction, efficiency improvement, quality assurance, environmental sustainability, and wide applicability. Whether from an economic or production perspective, Pall high-flow filter cartridges provide customers with exceptional filtration solutions, helping achieve efficient, safe, and sustainable production goals.

Successful case

Case 1: Crude Oil Pretreatment in a Large – scale Refinery

A large – scale refinery faced challenges of high – volume crude oil processing with abundant impurities. The crude oil contained not only solid impurities like sand and metal particles but also various organic contaminants that could affect subsequent processing. If these impurities were not effectively removed, it would lead to increased equipment wear and catalyst poisoning, severely impacting refining efficiency and product quality.

After introducing Pall high – flow filter cartridges, the situation was greatly improved. The cartridges were equipped with special composite filter media tailored to the characteristics of crude oil, which could effectively intercept various impurities in the crude oil. In terms of filtration accuracy, it precisely reached 5μm, ensuring that even tiny particles were captured. Their high – flow processing capacity was also prominent. A single 60 – inch cartridge could achieve a water flow rate of 500gpm, meeting the large – scale crude oil processing needs of the refinery. During long – term operation, the stable performance of Pall high – flow filter cartridges was fully demonstrated. There was no decrease in flow rate or deterioration in filtration effect due to impurity blockage. By using Pall high – flow filter cartridges, the equipment maintenance cycle of the refinery was extended from once a quarter to once a year, greatly reducing the downtime caused by equipment maintenance. Meanwhile, the quality of subsequent refined oil products was significantly improved, and the yield of high – quality oil products increased by 15%.

Case 2: Feed Gas Filtration in an Ethylene Production Plant

In an ethylene production enterprise, the purity of the feed gas played a crucial role in the yield and quality of ethylene. The previously used ordinary filtration equipment could not meet the high – flow and high – precision filtration requirements of the feed gas, resulting in frequent catalyst deactivation and fouling of reaction equipment during the ethylene production process, severely restricting production efficiency.

The application of Pall high – flow filter cartridges brought a turning point to the enterprise. Using glass – fiber filter media, they could ensure a filtration accuracy of 1μm while effectively removing tiny particles and impurities in the feed gas, avoiding damage to the catalyst. The unique structural design enabled the cartridges to maintain a low pressure drop under high – flow conditions, ensuring the smooth flow of the feed gas. Take an ethylene production unit with a daily output of 500 tons as an example. After installing Pall high – flow filter cartridges, the annual cost savings from reducing catalyst replacement and equipment cleaning reached up to 5 million yuan. At the same time, the ethylene yield increased by 8%, and the product purity was improved from 98% to 99.5%, enhancing the enterprise’s competitiveness in the market.

Case 3: Solvent Filtration in the Chemical Synthesis Process

A chemical enterprise needed to filter a large amount of solvents during the chemical synthesis process to remove impurities and unreacted raw materials, ensuring the smooth progress of the synthesis reaction and product quality. However, the traditional filtration method was inefficient and prone to solvent waste.

Pall high – flow filter cartridges successfully solved the enterprise’s problems with their high – flow and high – efficiency filtration characteristics. The polypropylene filter material of the cartridges had good chemical compatibility and could meet the filtration needs of various solvents. A 20 – inch cartridge could achieve a maximum water flow rate of 175gpm, capable of quickly processing a large amount of solvents. In practical applications, not only was the filtration efficiency greatly improved, but the solvent recovery rate also increased from 80% to over 90%. This not only reduced production costs but also minimized the environmental impact. Meanwhile, due to the higher purity of the filtered solvent, the quality of the synthetic products was more stable, and the defective rate decreased by 10%, bringing significant economic benefits to the enterprise.
