Product Introduction

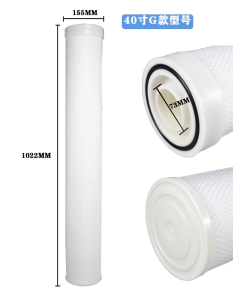

The HFU660UY060H1 is a high-flow pleated filter cartridge designed for industrial-scale water pretreatment. It belongs to a family of large-diameter, single-open-end cartridges known for providing very high flow rates and extended service life in a single housing. It is a direct or compatible replacement for original equipment manufacturer (OEM) products from suppliers like Pall.
Filtration Precision
The filtration precision of this model is customizable. The standard precision range is from 1 to 20 microns (µm). Specific precision options, such as 1, 5, or 10 µm, can be selected based on the chosen filter media and customer requirements.
Flux
This cartridge is engineered for high flux. For reference, similar high-flow cartridges in this series (like the HFU660YU060) can achieve a single cartridge flow rate of up to 70 cubic meters per hour (m³/h). The specific flux for the HFU660UY060H1 may vary slightly based on the chosen filtration precision and operating conditions.
Salt Rejection Rate
Not Applicable (N/A). This cartridge is a depth filter for mechanical separation of suspended solids. It does not remove dissolved salts or ions. For salt rejection, a downstream process like Reverse Osmosis (RO) is required.
Pressure Drop
The cartridge is designed with a large pleated area to minimize initial pressure drop. A minimum initial differential pressure of 0.2 Megapascals (MPa) is typically required for operation. The maximum working pressure can be as high as 420 bar. The pressure drop will increase as the cartridge loads with contaminants, and this increase is the primary indicator for replacement.
Molecular Weight Cutoff (MWCO)
Not Applicable (N/A). MWCO is a parameter used to define the separation capability of ultrafiltration (UF) or nanofiltration (NF) membranes, which operate at a molecular level. This pleated cartridge operates on a micron-based particle size exclusion principle and does not have an MWCO rating.
Membrane Thickness
Not Applicable (N/A). This is a pleated depth filter cartridge, not a thin-film membrane element. Its separation layer consists of a thick, porous media (like polypropylene or glass fiber) folded into deep pleats. Therefore, “membrane thickness” is not a relevant technical parameter for this product type.
Replacement Cycle
There is no fixed time-based replacement cycle. The service life is determined by the increase in differential pressure across the cartridge. Replacement is required when the pressure drop reaches a maximum limit, indicating that the filter media is saturated with contaminants. The actual cycle depends entirely on the inlet water quality and total system throughput.
Features
High Flow & Capacity: A single cartridge handles high flow, reducing the number of housings needed and saving space and cost.
Pleated Design: The folded filter media provides a large surface area, which extends service life and lowers operational pressure drop.
Robust Construction: Features internal and external polypropylene (PP) support skeletons and thickened end caps for structural integrity and high dirt-holding capacity.
Material Options: The filter media can be chosen from materials like polypropylene (PP) or glass fiber to suit different chemical compatibilities and filtration needs.
Sealed Design: Engineered to minimize the risk of fluid bypass, ensuring reliable filtration.
Application Fields
This cartridge is primarily used as a pre-filter (or “guard filter”) in industries requiring large-volume, reliable particulate removal:
Power Generation: Condensate water filtration.
Desalination & Water Purification: Pretreatment for RO systems.
Petrochemical & Chemical Industries: Process water filtration.
Pharmaceutical & Electronics: Pretreatment for high-purity water systems.
Food & Beverage, Marine, and General Industrial Water Treatment.
Conclusion
In summary, the HFU660UY060H1 is a high-performance, high-flow depth filter cartridge designed for large-scale industrial water pretreatment. Its core value lies in efficiently removing suspended particles to protect critical downstream equipment, while its design significantly reduces system footprint and maintenance frequency through long service life and high single-cartridge flow capacity.
Related Products
Other Models in the Series: This cartridge is part of a large family. Closely related models include
HFU660UY060H,HFU660UY060HW,HFU660UY060H4W, andHFU660UY060J.Different Precision Grades: The same physical cartridge platform is available in other standard precision ratings, such as
HFU660UY020J(often 1µm) orHFU660UY100J(often 100µm).Alternative Brands: Various manufacturers produce functionally equivalent replacement cartridges that are compatible with the original housings designed for Pall’s HFU660 series
