Product Introduction

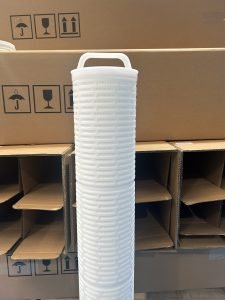

The HFU660UY1000J is a high-flow, single-open-end, pleated filter cartridge designed for industrial water pretreatment applications. As a member of the widely used HFU series, it is a high-performance replacement product compatible with original equipment manufacturer (OEM) filters from major brands such as Pall (PALL). Its design features a large outer diameter (6 inches / 152 mm) and a pleated filter medium to maximize the effective filtration area. This design can significantly reduce the number of filter cartridges needed and the size of the housing, lowering investment and operating costs.
Filtration Precision
The filtration precision of HFU series cartridges is customizable. Common standard precision ratings include 1, 5, 10, 20, 40, 70, and 100 micrometers (µm). The precision required is selected based on the specific application and the protection requirements of the downstream system. As a 1000 series model, it is suitable for applications requiring large flow rates.
Flux
This series of filter cartridges is specifically engineered for very high single-cartridge flow rates. The flow rate is directly proportional to the cartridge length. Recommended maximum water flow rates for standard lengths are:
20-inch length: approximately 660 liters per minute (LPM)
40-inch length: approximately 1300 LPM
60-inch length: approximately 1900 LPM
Salt Rejection Rate
Not Applicable (N/A). The HFU660UY1000J is a mechanical depth filter. Its primary function is to physically remove suspended solids, particulate matter, and colloidal particles based on size exclusion. It does not utilize a semi-permeable membrane process and therefore has no capability to remove dissolved ionic salts. In desalination systems, its main role is to serve as a critical pre-filter or “guard filter” to protect downstream reverse osmosis (RO) or ultrafiltration (UF) membranes.
Pressure Drop
The pleated design aims to provide a low initial pressure drop. According to the series’ technical specifications, the recommended cartridge replacement point is when the differential pressure reaches 2.4 bar (at 20°C). The maximum allowable pressure drop can vary with filter medium material and temperature, such as up to 3.4 bar at 82°C for polypropylene (PP) media.
Molecular Weight Cutoff (MWCO)
Not Applicable (N/A). Molecular Weight Cutoff (MWCO) is a parameter specific to membrane separation technologies such as Ultrafiltration (UF) and Nanofiltration (NF), which separate solutes based on molecular size. This pleated cartridge operates on a micron-based particle size exclusion principle and does not have an MWCO rating.
Membrane Thickness
Not Applicable (N/A). This product is not a thin-film membrane element. It is a depth filter cartridge that uses a thick, porous, pleated filter medium (such as polypropylene or glass fiber). Therefore, “membrane thickness” is not a relevant technical parameter.
Replacement Cycle
There is no fixed time-based replacement cycle. The service life is determined by the increase in differential pressure across the cartridge caused by contaminant loading. The cartridge must be replaced when the pressure drop reaches the recommended terminal value (typically 2.4 bar). The actual cycle depends entirely on the quality and particulate load of the feed water.
Features
High Single-Cartridge Flow: Significantly reduces the required number of filter housings, saving space, installation, and maintenance costs.
High Dirt-Holding Capacity: The large diameter and deep pleats provide extensive surface area, enabling high contaminant loading and extended service life.
Material Options: The filter medium can be Polypropylene (PP) or Glass Fiber, with sealing options like EPDM or Nitrile rubber, offering good chemical compatibility.
Easy Installation and Replacement: Often designed with a handle, and manual O-ring installation ensures quick and reliable filter changes.
High Filtration Efficiency: The gradient pore structure design enhances filtration efficiency and contaminant retention capacity.
Standard Compliance: Manufactured in accordance with relevant ISO standards.
Application Fields
This high-flow cartridge is a versatile pre-filter used across various industries requiring large-volume particulate removal:
Water Purification: Pre-treatment (“保安过滤” / security filtration) for Reverse Osmosis (RO) systems, Ultrafiltration (UF) systems, and seawater desalination pretreatment.
Power Generation: Specifically for condensate water filtration in power plants and as a pre-filter for iron removal systems.
Process Industries: Filtration in petrochemical, pharmaceutical, food & beverage (e.g., beverages, wine), and electronics (high-purity water) sectors.
Conclusion
In summary, the HFU660UY1000J is a high-performance, high-flow depth filter cartridge designed for large-scale industrial water pretreatment. Although precise specifications for this exact suffix were not found, based on the technical specifications of the HFU series and related models, it can be inferred that its design prioritizes high single-cartridge throughput, extended service life, and reduced system complexity. It serves as a critical protective component, efficiently removing suspended solids to safeguard sensitive downstream equipment such as RO and UF membranes.
Related Products
Other Models in the HFU Series: This model belongs to a large family. Other related high-flow models from the same series include
HFU660UY045J,HFU660UY060J,HFU660UY100J,HFU660UY200J, andHFU660UY400J, etc..Different Precision Grades: The same physical cartridge platform is available in the full range of standard precision ratings (e.g., 1µm, 5µm, 20µm, etc.).
Cross-Brand Equivalents: The HFU series is extensively produced as direct replacement cartridges for OEM products from Pall (颇尔), Parker, 3M, and others. Models like
HFU660CAS010JUWalso share a similar form and function.
Important Note: This information is a synthesis based on the general technical specifications of the HFU series, as direct data for the specific model “HFU660UY1000J” was not located. For precise application engineering, especially regarding exact flow rates for specific lengths, chemical compatibility, and certification requirements, you must consult the official data sheet from your specific supplier or manufacturer.
