The bag filter is a multi-purpose filtration equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Bag filter is a new type of filter system. The inside of the bag filter is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. The impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.
Application: water, oil, paint and other liquid purification and solid-liquid separation in machinery, metallurgy, chemical industry, textile, printing and dyeing, electroplating, medicine, food and other industries. Filter media: impurities in water, sediments and suspended solids, bacteria

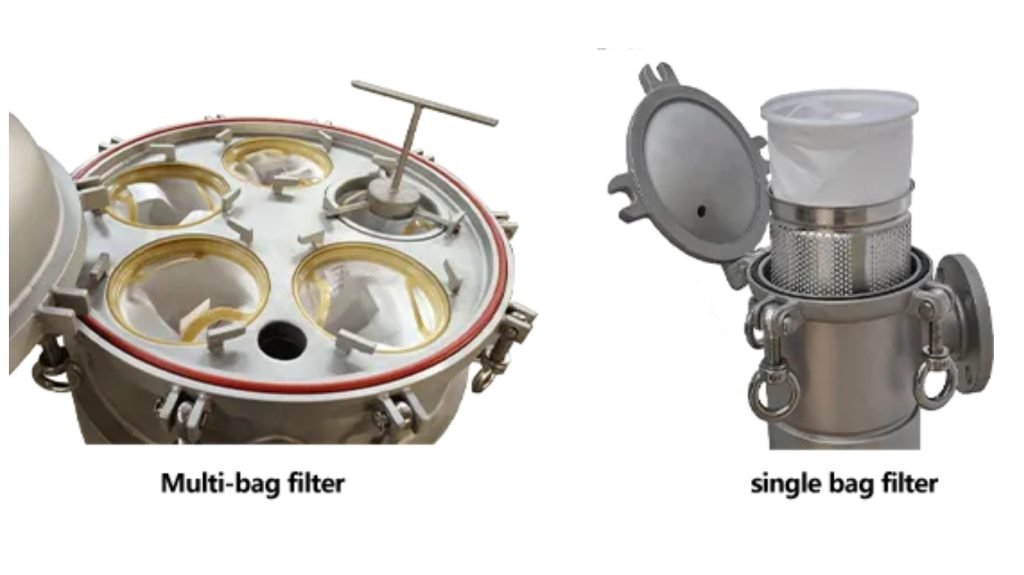

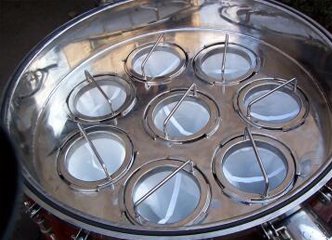

Work principle: The bag filter is a pressure filter device, which mainly consists of a filter cylinder body, a filter cylinder cover, a quick-opening mechanism, a stainless steel filter bag reinforcing mesh and other main components. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket, and the liquid can obtain qualified filtrate by infiltrating the filter bag of the required fineness grade, and the impurity particles are intercepted by the filter bag. The machine is very convenient to replace the filter bag, and there is basically no material consumption for filtration. Bag filter has the following categories: single bag filter, multi-bag filter, rocker bag filter, high-precision bag filter, etc., the filter filtration precision is in the range of 1-10 microns.
