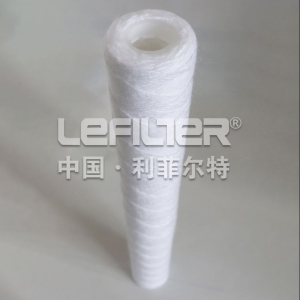

Coarse Filtration Pharmaceutical Filter Cartridge: Filter Cartridge for Large Particle Interception in Pharmaceutical Raw Water Inlet
Product Introduction
This coarse filtration pharmaceutical filter cartridge is a professional pre-filtration component engineered exclusively for large particle interception at the raw water inlet of pharmaceutical production plants, manufactured in strict compliance with USP Class VI, FDA 21 CFR 177.1520, EU GMP and Chinese Pharmacopoeia (ChP) standards for pharmaceutical water treatment systems. Crafted from high-strength pharmaceutical-grade polypropylene (PP) fiber and reinforced porous support materials, the cartridge adopts an advanced large-pore gradient winding process with an adhesive-free hot-melt integral sealing structure, optimized for the core demand of pharmaceutical raw water inlet pre-filtration—efficient interception of large solid impurities to protect subsequent precision water treatment equipment. It effectively captures large suspended solids, sand grains, rust particles, fiber clumps, sediment and other macro-scale insoluble impurities from various pharmaceutical raw water sources (tap water, surface water, groundwater) at the inlet stage, preventing pipeline blockage, equipment abrasion and precision filter membrane fouling in follow-up RO, UF and ion exchange systems. The product features a high dirt-holding capacity, large flux and low resistance structural design, perfectly matched with the raw water inlet filtration system of pharmaceutical water treatment units, realizing stable and efficient coarse filtration, reducing the operating load of subsequent water treatment processes, and laying a solid foundation for the compliant and continuous operation of pharmaceutical purified water and water for injection (WFI) systems.
Filtration Precision
Targeting the large particle interception demand of pharmaceutical raw water inlet pre-filtration and the graded filtration characteristics of pharmaceutical water treatment systems, this coarse filtration pharmaceutical filter cartridge provides dedicated and stable coarse filtration precision options, with nominal filtration ratings ranging from 50 μm to 200 μm—the core specification range for efficient large particle removal in raw water inlet pre-filtration. The 50 μm and 80 μm fine-coarse precision models are suitable for the raw water inlet filtration of high-standard pharmaceutical water treatment systems (e.g., WFI units), intercepting fine large particles such as fine sand grains and micro rust clumps to minimize the impurity load of subsequent precision filtration links; the 100 μm and 150 μm medium-coarse precision models are applied to the raw water inlet pre-filtration of conventional pharmaceutical purified water units, capturing most suspended solids, sand grains and fiber clumps in tap water and pretreated surface water; the 200 μm ultra-coarse precision model is designed for the raw water inlet filtration of pharmaceutical plants with high-turbidity raw water sources (e.g., untreated groundwater), intercepting large sediment, coarse sand and massive rust particles to avoid direct damage to subsequent water treatment pumps and pipelines. All precision models maintain consistent interception efficiency for large particles under the dynamic water flow conditions of raw water inlets, with no particle penetration caused by water flow scouring, fully meeting the coarse filtration quality requirements of the pharmaceutical industry for raw water inlet large particle interception.
Flux
The flux performance of this coarse filtration pharmaceutical filter cartridge is fully optimized for the large-flow characteristics of pharmaceutical raw water inlet and the low-resistance demand of pre-filtration, with a pure water flux of 180-300 L/min·m² at 25℃ and 0.1MPa operating pressure—far higher than conventional precision filter cartridges. For the standard 10-inch cartridge, the initial pure water flux reaches 24-40 L/min; the 20-inch cartridge is 48-80 L/min, and the 40-inch large-specification cartridge can reach 96-160 L/min, perfectly adapting to the large-volume raw water intake demand of pharmaceutical water treatment systems (from small-scale laboratory units to large-scale industrial production water treatment lines). For actual pharmaceutical raw water (tap water/groundwater with normal turbidity), the actual working flux is basically consistent with the pure water flux, and even for high-turbidity raw water, the flux only shows a mild and slow decrease during use. The large-pore gradient filtration channel design ensures that the flux does not decrease sharply with the increase of filtration precision within the coarse filtration range, and the high dirt-holding capacity delays flux attenuation, meeting the continuous large-flow raw water inlet demand of pharmaceutical production plants without causing pressure loss or water supply shortage in the raw water intake process.
Salt Rejection Rate
As a dedicated coarse filtration cartridge for large particle interception at pharmaceutical raw water inlets, the product is designed only for the physical interception of insoluble macro-scale solid impurities in raw water, and does not have any desalination, ion removal or dissolved substance retention function, with a salt rejection rate close to 0%. It neither intercepts soluble inorganic salts, minerals, small molecular weight organic substances nor affects the dissolved gas, pH value, conductivity and other chemical properties of pharmaceutical raw water, and has no impact on the subsequent desalination and purification efficiency of RO, nanofiltration and ion exchange systems in pharmaceutical water treatment units. The desalination and purification of pharmaceutical raw water are undertaken by subsequent precision water treatment processes, and the core function of this coarse filtration cartridge is to remove large particulate impurities in advance to avoid the pollution and abrasion of desalination and precision filtration equipment caused by large particles, ensuring their stable desalination efficiency and long service life. The abandonment of desalination design makes the cartridge focus on large particle interception with a large-pore structure, which is the key to realizing its large flux, low resistance and high dirt-holding capacity characteristics.
Pressure Drop
The product adopts an optimized ultra-low resistance large-pore gradient winding structure and high-fluidity pharmaceutical-grade PP fiber material, with an initial pressure drop of ≤0.008MPa at 25℃ and rated pure water flux for all coarse filtration precision specifications—far lower than the industry standard for pharmaceutical pre-filtration cartridges. This ultra-low initial pressure drop effectively reduces the energy consumption of the raw water intake pump in pharmaceutical water treatment systems, avoids excessive pressure loss in the raw water inlet pre-filtration link, and ensures the normal water supply pressure of subsequent water treatment processes. During use, the pressure drop of the cartridge increases in a slow and linear manner with the gradual accumulation of intercepted large particles, rather than a sudden sharp rise; the recommended terminal operating pressure drop is uniformly set to ≤0.06MPa for all precision models. The slow pressure drop rise rate is a key advantage of this cartridge, which allows for longer continuous use time and reduces the frequency of shutdown and replacement operations for the raw water inlet filtration system, ensuring the uninterrupted raw water supply of pharmaceutical production plants. Even for high-turbidity raw water, the pressure drop rise rate remains stable, avoiding the sudden pressure increase of the raw water intake system caused by impurity accumulation.
Molecular Weight Cutoff (MWCO)
Combined with the coarse filtration precision, large-pore gradient winding density and the impurity characteristics of pharmaceutical raw water, the optimized Molecular Weight Cutoff (MWCO) range is 500,000 Da to 2,000,000 Da for this coarse filtration pharmaceutical filter cartridge, which is specially tailored for the interception of large particulate and macromolecular aggregate impurities in pharmaceutical raw water. This ultra-wide MWCO range is designed for the physical interception of insoluble macro-scale impurities, and can effectively capture large molecular weight impurities such as fiber clumps, sediment aggregates, rust particle clusters, macromolecular organic colloid aggregates and other insoluble large particles (MW > 500,000 Da) in pharmaceutical raw water, while allowing all small and medium molecular weight substances (water molecules, inorganic salts, dissolved small molecular weight organic substances) and fine soluble impurities in raw water to pass through smoothly. For different coarse filtration precision models, the MWCO range is adaptively adjusted: the 50/80 μm models have a MWCO of 500,000 Da-1,000,000 Da for intercepting fine large molecular weight aggregates, and the 150/200 μm models have a MWCO of 1,500,000 Da-2,000,000 Da for capturing massive large particle impurities. The stable MWCO setting ensures efficient and selective interception of large particle impurities in raw water, without affecting the normal composition of raw water and the subsequent purification process.
Membrane Thickness
This coarse filtration pharmaceutical filter cartridge adopts a reinforced gradient thickness filtration layer design specially adapted to the large-flow, high-impurity characteristics of pharmaceutical raw water inlet and the demand for high dirt-holding capacity, with an effective functional filtration layer thickness of 8-15 mm—significantly thicker than conventional precision filter cartridges to maximize the impurity storage space. The total outer diameter thickness of the cartridge (including high-strength reinforced PP inner core and gradient filtration layer) is a standard 28-30 mm, fully compatible with the installation size of raw water inlet filter housings in all types of pharmaceutical water treatment systems. The filtration layer is composed of a loose and wear-resistant outer layer (4-6 mm) with extra-large pore size for the primary interception of massive large particles such as sediment and coarse sand, and resistance to the strong scouring of raw water inlet flow; a medium-density middle layer (3-5 mm) for the secondary interception of medium-sized large particles such as sand grains and rust clumps, increasing the dirt-holding capacity of the cartridge; and a relatively dense inner layer (1-4 mm) for the fine interception of fine large particles such as micro rust clumps and fiber clumps, ensuring the coarse filtration precision. The whole filtration layer is formed by high-density winding and hot-melt bonding, with uniform thickness distribution and excellent structural stability, avoiding local excessive pressure and filtration layer damage caused by the large-flow scouring of raw water inlet, and the reinforced thickened design significantly improves the cartridge’s ability to bear impurity accumulation and extend its service life.
Replacement Cycle
The replacement cycle of this coarse filtration pharmaceutical filter cartridge is designed according to the turbidity, impurity content and daily water intake of pharmaceutical raw water sources, with a recommended normal replacement cycle of 2-8 weeks for the raw water inlet large particle interception link—flexibly adjustable according to the actual raw water quality of pharmaceutical plants. For pharmaceutical plants with low-turbidity raw water sources (e.g., tap water with municipal pretreatment, turbidity ≤5 NTU) and small to medium daily water intake, the replacement cycle can be appropriately extended to 6-8 weeks (especially for 100/150 μm medium-coarse precision models); for plants with medium-turbidity raw water sources (e.g., pretreated groundwater, turbidity 5-20 NTU) and large daily water intake, the replacement cycle is 4-6 weeks; for plants with high-turbidity raw water sources (e.g., untreated surface water/groundwater, turbidity >20 NTU) and industrial-scale daily water intake, the replacement cycle is still maintained at 2-4 weeks for all precision models. The cartridge only needs to be replaced immediately when the terminal pressure drop exceeds 0.06MPa, the filtration flux drops by more than 30% of the initial value and cannot be recovered after backwashing, or the raw water inlet system appears obvious pipeline blockage signs; regular replacement is not required within the recommended cycle, and the backwashable design further extends the actual service life, greatly reducing the replacement frequency and production downtime of the raw water inlet filtration system.
Features
- Pharmaceutical-grade high-strength raw materials: The whole cartridge is made of USP Class VI/FDA certified high-strength pharmaceutical-grade PP fiber and reinforced support materials, free of heavy metals, leachable substances and organic volatile compounds, meeting the strict hygiene requirements of pharmaceutical water treatment raw water pre-filtration.
- Adhesive-free hot-melt integral sealing: Advanced one-piece hot-melt bonding process without any adhesives, binders or sealants, eliminating dead corners for microbial breeding and the risk of chemical additive leaching into raw water, complying with GMP production standards of the pharmaceutical industry.
- Large-pore gradient filtration structure: The outer loose, middle medium and inner relatively dense gradient porous structure realizes multi-stage interception of large particles of different sizes in raw water, maximizes the dirt-holding capacity and avoids impurity blockage in a single layer.
- Ultra-large flux & ultra-low initial pressure drop: Optimized large-pore channel and low-resistance winding design ensure ultra-large filtration flux and ultra-low initial pressure drop, adapting to the large-flow raw water inlet demand of pharmaceutical plants and reducing the energy consumption of water intake pumps.
- Excellent resistance to flow scouring: The wear-resistant reinforced filtration layer and high-density winding structure have strong resistance to the strong scouring of large-flow raw water inlet, no fiber shedding, no filtration layer damage and no precision attenuation during long-term use.
- High dirt-holding capacity & slow pressure drop rise: The thickened filtration layer and gradient pore size design significantly improve the impurity storage capacity, making the pressure drop rise in a slow linear manner, extending the continuous service life and reducing replacement frequency.
- Backwashable & reusable: The large-pore PP fiber filtration layer is easy to carry out physical backwashing with clean water or compressed air, and the cleaned cartridge can be reused for a short time, further reducing the operation cost of pharmaceutical water treatment systems.
- Superior chemical compatibility: Resistant to most inorganic salts, weak acids, weak alkalis and residual chlorine in pharmaceutical raw water (tap water/groundwater/surface water), maintaining stable physical and chemical properties without material dissolution or structural damage.
- High mechanical stability: The integral reinforced structure has excellent compressive strength (resistant to 0-0.6MPa operating pressure), no deformation or structural damage under the high pressure of raw water intake pumps, and can work stably in the temperature range of 0-60℃, adapting to the harsh operating environment of raw water inlet.
- Standard industrial specification & universal installation: Standard 28-30 mm outer diameter and mainstream 10/20/40-inch length specifications, perfectly matched with all types of raw water inlet filter housings in pharmaceutical water treatment systems, no additional modification of existing equipment, quick installation and replacement.
Application Fields
This coarse filtration pharmaceutical filter cartridge is specially developed for the raw water inlet pre-filtration of pharmaceutical water treatment systems, and is widely applied to the large particle interception link at the raw water inlet of various pharmaceutical production plants and water treatment units, covering all core pharmaceutical production fields that require purified water and WFI: raw water inlet large particle interception of purified water and WFI systems in chemical pharmaceutical plants (API and formulation production); raw water inlet pre-filtration of water treatment units in biological pharmaceutical plants (monoclonal antibody, vaccine, recombinant protein production); raw water inlet coarse filtration of pharmaceutical water treatment systems in traditional Chinese medicine pharmaceutical plants (Chinese patent medicine, traditional Chinese medicine extract production); raw water inlet large particle removal of water treatment units in pharmaceutical preparation plants (tablets, capsules, ointments, injections production); raw water inlet pre-filtration of small-scale water treatment units in pharmaceutical R&D centers and pilot workshops; and raw water inlet coarse filtration of water treatment systems in pharmaceutical auxiliary material production plants. In addition, the product can also be used for the coarse filtration pre-filtration of raw water inlet in fine chemical plants and biotech companies with high water quality requirements, complying with USP, EU GMP and ChP standards in all application scenarios, and is an indispensable core coarse filtration component for the pre-filtration of pharmaceutical raw water inlet and the compliant operation of subsequent water treatment systems.
Conclusion
In summary, this coarse filtration pharmaceutical filter cartridge is a high-performance professional pre-filtration solution custom-tailored for large particle interception at the pharmaceutical raw water inlet, with the core competitive advantages of ultra-large flux, ultra-low pressure drop, high dirt-holding capacity and excellent flow scouring resistance—solving the industry pain point of raw water inlet pre-filtration in pharmaceutical water treatment systems such as large-flow demand, high impurity load and easy equipment abrasion. Based on pharmaceutical-grade high-strength PP raw materials and an adhesive-free hot-melt integral structure, the cartridge efficiently intercepts all large suspended solids, sand grains, rust particles, sediment and other macro-scale impurities in various pharmaceutical raw water sources at the inlet stage, on the premise of not affecting the chemical composition and flow characteristics of raw water, effectively preventing pipeline blockage, equipment abrasion and precision membrane fouling in subsequent RO, UF and ion exchange systems, and ensuring the stable, efficient and long-term operation of pharmaceutical purified water and WFI systems. The ultra-large flux and ultra-low initial pressure drop design perfectly adapt to the large-flow raw water intake demand of pharmaceutical production plants, reducing the energy consumption of water treatment systems; the high dirt-holding capacity and slow pressure drop rise rate extend the cartridge’s service life and reduce replacement frequency, lowering the operation and maintenance cost of water treatment systems. The backwashable, reusable and universal installation design further improves the cost performance and practicality of the cartridge, and the full compliance with global pharmaceutical GMP standards ensures that the raw water pre-filtration link meets the hygiene and quality requirements of pharmaceutical production. As a professional coarse filtration component for pharmaceutical water treatment, it not only acts as the first line of defense for the pharmaceutical raw water inlet but also provides a solid pre-filtration guarantee for the subsequent precision purification of pharmaceutical water, laying the foundation for the compliant production of high-quality pharmaceutical products. It is the first choice for large particle interception at the raw water inlet of water treatment systems in chemical, biological, traditional Chinese medicine and injection pharmaceutical plants of all scales.
