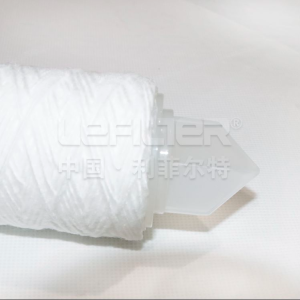

Long-Lasting Wound Filter Cartridge: Filter Cartridge for Circulating Filtration of Pharmaceutical Intermediate Production Liquids

Product Introduction

This long-lasting wound filter cartridge is a high-performance professional filtration component custom-engineered for the circulating filtration of pharmaceutical intermediate production liquids, manufactured in strict compliance with USP Class VI, FDA 21 CFR 177.1520, EU GMP and Chinese pharmaceutical production quality standards for pharmaceutical intermediates. Crafted from high-strength food-grade polypropylene (PP) fiber and reinforced pharmaceutical-grade composite materials, the cartridge adopts an advanced high-density precision winding process combined with an adhesive-free hot-melt integral sealing structure, optimized for the long-term circulating filtration characteristics of pharmaceutical intermediate production liquids—including repeated scouring, continuous impurity interception and stable performance requirements. It efficiently and continuously removes suspended solids, fine particulates, colloidal substances, crystal residues and micro-scale insoluble impurities from various pharmaceutical intermediate production liquids (including organic synthesis liquids, chemical reaction mother liquids and purification process liquids) during circulating filtration, without leaching any harmful substances or altering the chemical composition, purity and reaction activity of the intermediates. The product features an enhanced dirt-holding capacity and structural stability, perfectly matched with circulating filtration systems of pharmaceutical intermediate production lines, realizing long-term, stable and efficient circulating filtration, reducing the frequency of filter cartridge replacement, and laying a solid foundation for the continuous, compliant and cost-effective production of high-purity pharmaceutical intermediates that meet GMP standards.

Filtration Precision

Targeting the graded circulating filtration requirements of different pharmaceutical intermediate production liquids and different purification process links, this long-lasting wound filter cartridge provides a full range of stable and precise filtration precision options, with nominal filtration ratings ranging from 2 μm to 50 μm. The 2 μm, 5 μm and 10 μm high-precision models are suitable for the fine circulating filtration of high-purity pharmaceutical intermediate production liquids such as API precursor liquids, chiral intermediate liquids and high-purity synthesis mother liquids, achieving efficient interception of submicron fine particulates and crystal micro-residues to ensure the high purity of pharmaceutical intermediates; the 20 μm, 30 μm and 40 μm medium-precision models are applied to the circulating filtration of conventional pharmaceutical intermediate production liquids including basic organic synthesis liquids and reaction diluents, effectively removing medium-sized particulate impurities and colloidal aggregates to balance filtration precision and long service life; the 50 μm coarse-precision model is used for the pre-circulating filtration of crude pharmaceutical intermediate production liquids with high particulate content such as initial reaction liquids and raw material mixed liquids, removing large solid impurities and crystal clumps to protect subsequent fine filtration equipment and extend the service life of high-precision filter cartridges. All precision models maintain consistent and non-attenuating interception efficiency during long-term circulating filtration, with zero particle leakage and excellent resistance to liquid scouring, fully meeting the stringent circulating filtration quality requirements of the pharmaceutical intermediate production industry for production liquids.

Flux

The flux performance of this long-lasting wound filter cartridge is optimized for the long-term circulating filtration characteristics and industrial production flow requirements of pharmaceutical intermediate production liquids, with a pure water flux of 45-110 L/min·m² at 25℃ and 0.1MPa operating pressure that remains stable for a long time. For the standard 10-inch cartridge, the initial pure water flux reaches 6-15 L/min; the 20-inch cartridge is 12-30 L/min, and the 40-inch large-specification cartridge can reach 24-60 L/min, fully meeting the circulating filtration demand of small, medium and large-scale pharmaceutical intermediate production lines. For low-viscosity pharmaceutical intermediate production liquids (≤80 mPa·s) such as organic solvent synthesis liquids and dilute reaction liquids, the actual working flux is basically consistent with the pure water flux and shows only a mild decrease during long-term use; for medium-viscosity production liquids (80-150 mPa·s) such as concentrated synthesis mother liquids and slurry-type intermediate liquids, the actual initial flux is reduced by 20%-35% under the same working conditions, and the flux attenuation rate is far lower than conventional filter cartridges during circulating filtration. The optimized low-resistance winding channel design ensures that the flux does not decrease sharply with the reduction of filtration precision, and the enhanced dirt-holding capacity delays flux attenuation, perfectly matching the continuous circulating filtration characteristics of pharmaceutical intermediate production liquids and ensuring efficient filtration without affecting the production rhythm.

Salt Rejection Rate

As a dedicated long-lasting particulate filtration cartridge for the circulating filtration of pharmaceutical intermediate production liquids, the product is designed for the interception and removal of insoluble solid impurities, crystal residues, colloids and particulate aggregates in production liquids, and does not have a desalination or ion removal function, with a salt rejection rate close to 0%. It neither intercepts soluble organic synthesis components, reaction intermediates, inorganic salt catalysts and other functional substances in pharmaceutical intermediate production liquids nor affects the pH value, conductivity, concentration and chemical reaction activity of the production liquids, ensuring that the chemical composition and physical and chemical properties of the pharmaceutical intermediate production liquids remain completely unchanged during the whole long-term circulating filtration process. The abandonment of desalination design is a core structural feature that makes the cartridge focus on high-efficiency particulate removal for circulating filtration, distinguishing it from water purification filter cartridges with desalination functions and ensuring the integrity of the pharmaceutical intermediate production process and the purity of the final intermediate products. At the same time, the high-purity PP raw material and adhesive-free structure avoid the introduction of additional ionic substances during filtration, further ensuring the chemical purity of the production liquids.

Pressure Drop

The product adopts an optimized low-resistance high-density winding structure and reinforced gradient filtration channel design, combined with high-strength PP fiber with excellent fluidity, with an initial pressure drop of ≤0.012MPa at 25℃ and rated pure water flux for all filtration precision specifications—far lower than conventional wound filter cartridges for pharmaceutical use. This ultra-low initial pressure drop effectively reduces the energy consumption of the circulating pump in pharmaceutical intermediate production lines, avoids the damage of excessive pressure to heat-sensitive and pressure-sensitive pharmaceutical intermediate production liquids, and prevents the agglomeration of crystal residues and particulate impurities in the production liquids caused by high pressure. During long-term circulating filtration, the pressure drop of the cartridge increases in a slow and linear manner with the gradual interception of impurities, rather than a sudden sharp rise; the recommended terminal operating pressure drop is uniformly set to ≤0.08MPa for all precision models. The slow pressure drop rise rate is a key advantage of this long-lasting filter cartridge, which allows for longer continuous use time and reduces the number of shutdown and replacement operations for the circulating filtration system, ensuring the continuous and stable operation of pharmaceutical intermediate production lines.

Molecular Weight Cutoff (MWCO)

Combined with the filtration precision, high-density winding density, long-term circulating filtration characteristics and the component molecular characteristics of pharmaceutical intermediate production liquids, the optimized Molecular Weight Cutoff (MWCO) range is 20,000 Da to 300,000 Da for this long-lasting wound filter cartridge, with the MWCO range remaining stable and non-deviating during the whole long-term use process. This MWCO range is precisely tailored to the circulating filtration needs of pharmaceutical intermediate production liquids: it can effectively and continuously intercept macromolecular colloidal aggregates, insoluble polymer impurities, crystal micro-residue aggregates, fiber polymers and other large molecular weight insoluble impurities (MW > 20,000 Da) in various production liquids, while allowing all small and medium molecular weight pharmaceutical intermediate components, synthesis raw materials, catalysts, organic solvents and soluble reaction by-products (MW < 20,000 Da) to pass through smoothly and completely. For high-precision models (2 μm/5 μm), the MWCO is optimized to 20,000 Da-80,000 Da for the interception of fine macromolecular impurities; for medium-coarse precision models (20 μm/50 μm), the MWCO is designed to 150,000 Da-300,000 Da to balance impurity interception and flux stability. The stable MWCO setting during long-term use achieves the dual goal of long-term efficient impurity removal and complete retention of effective components in pharmaceutical intermediate production liquids, ensuring that the filtered production liquids fully meet the production and purification requirements of pharmaceutical intermediates.

Membrane Thickness

This long-lasting wound filter cartridge adopts a reinforced gradient thickness filtration layer design specially adapted to the long-term circulating filtration and liquid scouring characteristics of pharmaceutical intermediate production liquids, with an effective functional filtration layer thickness of 5-10 mm—thicker than conventional wound filter cartridges to enhance dirt-holding capacity and structural stability. The total outer diameter thickness of the cartridge (including high-strength reinforced PP inner core and gradient filtration layer) is a standard 28-30 mm, fully compatible with the installation size of circulating filtration system filter housings in the pharmaceutical intermediate production industry. The filtration layer is composed of a loose and wear-resistant outer layer (2-4 mm) with large pore size for coarse interception of large particulate impurities and crystal clumps, and resistance to the repeated scouring of circulating production liquids; a medium-density middle layer (2-3 mm) for interception of medium-sized particulates and colloidal aggregates, increasing the dirt-holding capacity of the cartridge; and a dense and high-precision inner layer (1-3 mm) for fine interception of small fine particulates and crystal micro-residues, ensuring filtration precision. The whole filtration layer is formed by high-density precision winding and hot-melt bonding, with uniform thickness distribution, avoiding local excessive pressure and filtration layer damage caused by the repeated scouring of circulating liquids, and the reinforced thickness design significantly extends the service life of the cartridge during circulating filtration.

Replacement Cycle

The replacement cycle of this long-lasting wound filter cartridge is significantly longer than conventional filter cartridges, designed according to the impurity content, viscosity, circulating flow rate and filtration precision of pharmaceutical intermediate production liquids, with a recommended normal replacement cycle of 4-12 weeks for the circulating filtration stage of pharmaceutical intermediate production liquids—doubling or even tripling the service life of conventional wound filter cartridges. For low-impurity, low-viscosity high-purity pharmaceutical intermediate production liquids (such as API precursor liquids) and small circulating flow rate conditions, the replacement cycle can be appropriately extended to 8-12 weeks (especially for 20 μm/30 μm medium-precision models); for medium-impurity, medium-viscosity conventional production liquids (such as basic organic synthesis liquids) and medium circulating flow rate conditions, the replacement cycle is 6-8 weeks; for high-impurity, high-viscosity crude production liquids (such as initial reaction mother liquids) and large circulating flow rate conditions, the replacement cycle is still maintained at 4-6 weeks for all precision models—far longer than conventional filter cartridges. In addition, the cartridge needs to be replaced immediately only when the terminal pressure drop exceeds 0.08MPa, the filtration flux drops by more than 30% of the initial value and cannot be recovered after backwashing, or the filtered production liquid fails to meet the purity index requirements of pharmaceutical intermediates; regular replacement is not required within the recommended cycle, which greatly reduces the replacement frequency and production downtime.

Features

Reinforced long-lasting structural design: Adopts high-density precision winding and reinforced gradient thickness filtration layer, combined with high-strength PP fiber and composite reinforcement materials, the service life is 2-3 times that of conventional wound filter cartridges, specially adapted to the long-term circulating filtration of pharmaceutical intermediate production liquids.
Pharmaceutical-grade high-purity raw materials: The whole cartridge is made of USP Class VI/FDA certified high-purity PP fiber, free of heavy metals, plasticizers, leachable substances and organic volatile compounds, meeting the strict hygiene and chemical purity requirements of pharmaceutical intermediate production.
Adhesive-free hot-melt integral sealing: Advanced hot-melt bonding process without any adhesives, binders or sealants, eliminating dead corners for microbial breeding and the risk of chemical additive leaching, ensuring the purity of pharmaceutical intermediate production liquids and complying with GMP production standards.
Slow pressure drop rise & stable flux: Optimized low-resistance filtration channel and enhanced dirt-holding capacity make the pressure drop rise in a slow linear manner and the flux attenuation rate far lower than conventional filter cartridges during long-term use, ensuring the stable operation of circulating filtration systems.
Excellent resistance to liquid scouring: The wear-resistant outer filtration layer and high-density winding structure have strong resistance to the repeated scouring of circulating pharmaceutical intermediate production liquids, no fiber shedding, no filtration layer damage and no precision attenuation during long-term use.
Superior chemical compatibility: Resistant to most organic solvents, inorganic solvents, weak acids, weak alkalis, esters, alcohols and ketones commonly used in pharmaceutical intermediate synthesis, maintaining stable physical and chemical properties without chemical reaction or material dissolution, adapting to the filtration of various types of pharmaceutical intermediate production liquids.
High mechanical stability: The integral reinforced structure has excellent compressive strength (resistant to 0-0.5MPa operating pressure), no deformation or structural damage under the high pressure of circulating pumps, and can work stably in the temperature range of 0-60℃, adapting to the harsh operating environment of pharmaceutical intermediate production lines.
GMP-compliant & easy to clean: Smooth surface, no dead corners, standard sanitary structural design, compatible with CIP/SIP cleaning processes of pharmaceutical production lines, and can be backwashed with purified water/organic solvents for repeated short-term use, further extending the service life.
Standard industrial specification & easy installation: Standard 28-30 mm outer diameter and mainstream 10/20/40-inch length specifications, perfectly matched with circulating filtration system filter housings in the pharmaceutical industry, no additional modification of existing equipment, quick installation and replacement, reducing production downtime.
Cost-effective & eco-friendly: The long service life and low replacement frequency significantly reduce the consumption of filter cartridges and production operation costs; the monolithic PP material structure is recyclable, meeting the green production requirements of the pharmaceutical industry.

Application Fields

This long-lasting wound filter cartridge is specially developed for the pharmaceutical intermediate production industry, and is widely applied to the circulating filtration stage of various pharmaceutical intermediate production liquids in chemical pharmaceutical and API production plants, covering all core production and purification links of pharmaceutical intermediates: circulating filtration of organic synthesis intermediate production liquids (including alkane, aromatic and heterocyclic synthesis liquids); circulating filtration of API precursor and chiral intermediate production liquids with high purity requirements; circulating filtration of chemical reaction mother liquids, crystallization mother liquids and purification process liquids in pharmaceutical intermediate production; circulating filtration of solvent recovery and reuse liquids in pharmaceutical intermediate synthesis; circulating filtration of dilute and concentrated intermediate production liquids in the purification stage; circulating filtration of crude intermediate production liquids in the pre-treatment stage; and circulating filtration of cleaning liquids for pharmaceutical intermediate production equipment and pipelines. In addition, the product can also be used for the long-term circulating filtration of fine chemical production liquids with similar purity and filtration requirements, complying with USP, EU GMP and Chinese pharmaceutical production standards in all application scenarios, and is an indispensable core long-lasting filtration component for the continuous, stable and cost-effective production of high-purity pharmaceutical intermediates.

Conclusion

In summary, this long-lasting wound filter cartridge is a high-performance professional filtration solution custom-tailored for the circulating filtration of pharmaceutical intermediate production liquids, with the core competitive advantages of ultra-long service life, slow pressure drop rise, stable flux and excellent scouring resistance—solving the industry pain point of frequent replacement of conventional filter cartridges in circulating filtration systems. Based on pharmaceutical-grade high-purity PP raw materials and an adhesive-free hot-melt integral structure, the cartridge efficiently and continuously removes all insoluble particulate impurities, crystal residues and colloidal aggregates in pharmaceutical intermediate production liquids during long-term circulating filtration, on the premise of 100% retaining the effective components, chemical composition and reaction activity of the production liquids, ensuring the high purity of pharmaceutical intermediates and complying with the strict GMP production standards of the pharmaceutical industry. The reinforced long-lasting structural design makes its service life 2-3 times that of conventional wound filter cartridges, and the slow pressure drop rise rate and low flux attenuation rate ensure the long-term stable operation of the circulating filtration system, greatly reducing the replacement frequency of filter cartridges, the consumption of filtration materials and the downtime of pharmaceutical intermediate production lines. The excellent chemical compatibility and mechanical stability adapt to the filtration of various types of pharmaceutical intermediate production liquids and the harsh operating environment of production lines, and the standard industrial specification design realizes perfect matching with existing circulating filtration systems without additional modification. As a professional filtration component complying with global pharmaceutical standards, it not only improves the filtration efficiency and product quality of pharmaceutical intermediate production but also significantly reduces the production operation and filtration material costs for enterprises, providing strong technical support for the continuous, compliant, cost-effective and green production of high-purity pharmaceutical intermediates. It is the first choice for the circulating filtration of pharmaceutical intermediate production liquids in chemical pharmaceutical plants, API production bases and fine chemical enterprises engaged in pharmaceutical intermediate synthesis.
