General Information
TFL10NP is an equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont MEMCOR L10N Ultrafiltration membrane module.

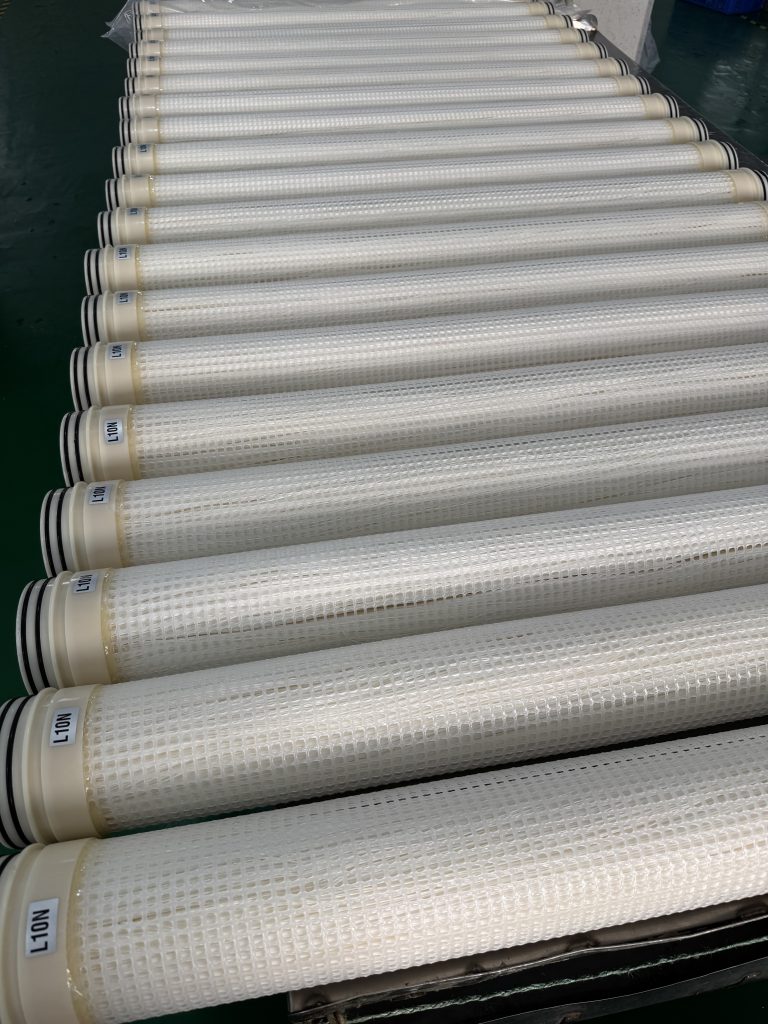

TaFlux COR Pro series ultrafiltration (UF) membrane module TFL10NP is a pressurized integrated module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of upgraded new generation TIPS (thermally induced phase separation) PVDF hollow fibers with high tensile strength and extra permeability.
TFL10NP UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.
Features
- Outside-to-inside flow direction
- New generation TIPS PVDF hollow fiber
- Uniform pore size of 0.04 μm
- Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
Advantages
- Upgraded design for easy installation
- High-quality filtrate
- Less energy needed by extra high permeability
- Longer service life by high mechanical strength and fouling resistance
- Economical equivalent module for direct replacement of DuPont MEMCOR L10N
Applications
- Surface water
- Potable water
- Beverage clarification
- Reclaimed water reuse
- Industrial wastewater
- Pre-treatment of seawater desalination

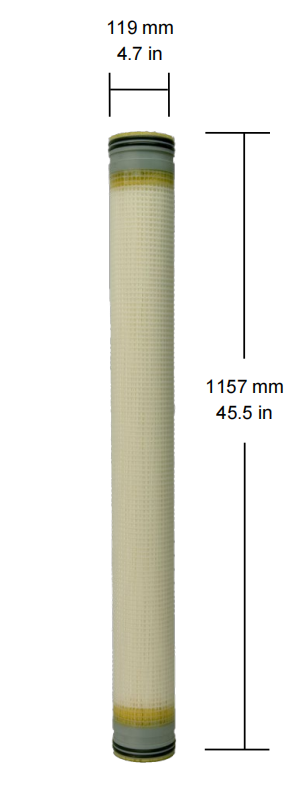

Technical data sheet
| Type of operation | Dead-end flow or cross flow |
| Design flux (25°C) | 40 – 110 L/m2·h (24 – 65 gfd) |
| Temperature | 1 – 40°C (34 – 104°F) |
| Maximum feed pressure (25°C) | 4 bar (60 psi) |
| Maximum trans-membrane pressure | 3 bar (45 psi) |
| Operation trans-membrane pressure | 0.2 – 1.5 bar (3 – 22 psi) |
| Backwash flux (25°C) | 50 – 120 L/m2·h (30 – 70 gfd) |
| Maximum backwash pressure | 2.5 bar (36 psi) |
| Maximum air scour feed pressure | 2.5 bar (36 psi) |
| Maximum air scour flow | 2 – 5 Nm3/h (1.12 – 3.1 scfm) |
| pH-Continuous operation @25°C | 1 – 13 |
| Maximum NaClO | 5,000 mg/L |
| Maximum feed TSS | 100 ppm |
| Maximum feed turbidity | 300 NTU |
| Maximum feed particle size | 300 µm |
| Filtrate SDI15 | ≤ 3 |
| Filtrate turbidity | ≤ 0.1 NTU |
