Description
Length:1016 mm (60”)
Rating (μm) at 99.98% Efficiency (ß-5000)：4.5μm
Rating (μm) at 99% Efficiency (ß-100):2.5μm
Filter Medium:Polypropylene
Support Mesh and Outer Wrap:Polypropylene
End Caps and Handle:Polypropylene (10% glass fiber reinforced)
O-ring Seal:Ethylene Propylene Rubbe

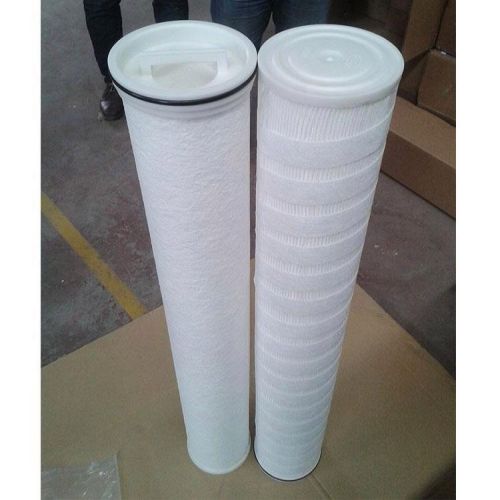

Ultipleat High Flow filter elements are designed for cost-effective, highly efficient particle filtration in high flow rate food and beverage applications.
Description
The Ultipleat High Flow filter elements are designed for high flow rates up to 113 m3/hour (500 US gal/min) in a single 1524 mm (60 inch) cartridge. They utilize Profile UP media with unique,laid-over pleat geometry. The Ultipleat High Flow element is a large diameter, single open ended, pleated cartridge with an inside to outside flow pattern and a core-free construction. The filter’s unique, laid-over pleat geometry, combined with its large diameter means fewer elements are required for a given flow rate than standard diameter cartridges. Filter vessels are correspondingly smaller,resulting in lower capital and installation costs, as well as reduced operating costs.
Features
Fixed fiber matrix with no adhesives or surfactants
Pleated (laid-over pleat geometry) media in a large diameter cartridge format
Inside to outside flow configuration
Benefits
Consistent filtrate quality
Highly stable structure
Higher product yields
Process reliability
Lower capital and installation costs
Reduced installation footprint
30% lower operating costs
Longer service life
Over 10% water savings
Protects filtrate from
recontamination by trapping
particulates inside the cartridge
