The hyperbolic mixer is widely used in wastewater treatment, chemical, energy, light industry and other industries where solid, liquid and gas mixing and blending of liquids is required, especially for coagulation tanks, conditioning tanks, anaerobic tanks, nitrification and denitrification tanks in wastewater treatment work. Satisfying the highest demands and being universally applicable, it is also frequently used in the chemical, cosmetic, paint and paper industries.
This is a mixing device that can create a large volume flow rate and obtain a large circulating, gentle water flow with less power. The unique design of the impeller structure perfectly combines fluid characteristics with mechanical movement.
The curved surface of the hyperbolic impeller is a curved body made up of curves rotating along the y-axis; in order to cater for the flow of water, the design feeds water from the centre of the impeller, which on the one hand reduces the inlet vein flow, and on the other hand ensures the uniform pressure of the liquid on the surface of the impeller, so as to ensure the balance of the whole machine in the state of motion.
There are eight guide blades evenly distributed on the involute double arc surface, with the help of the liquid weight pressure as a supplement to the water inlet potential energy and the centrifugal force generated during the rotation of the impeller to form kinetic energy.

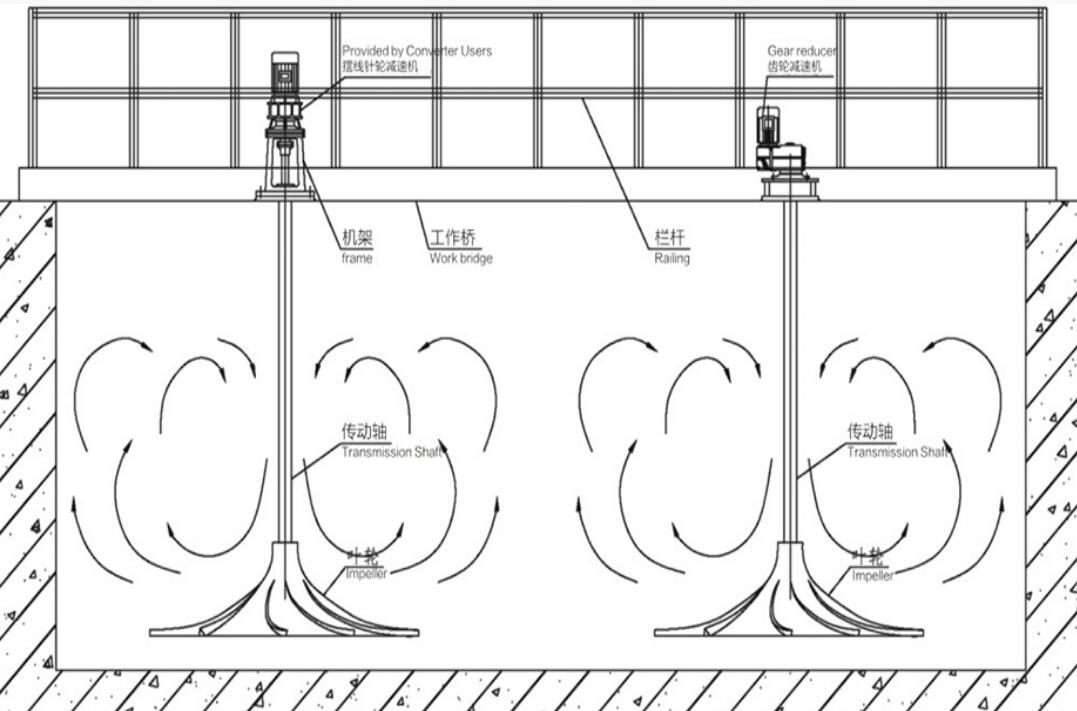

Liquid acceleration under the conditions of gravity along the impeller circumference for tangential movement, in the reflective role of the pool wall, the formation of bottom-up circulation of water flow, so you can get in the axial (y) and radial (x) direction of the cross flow.

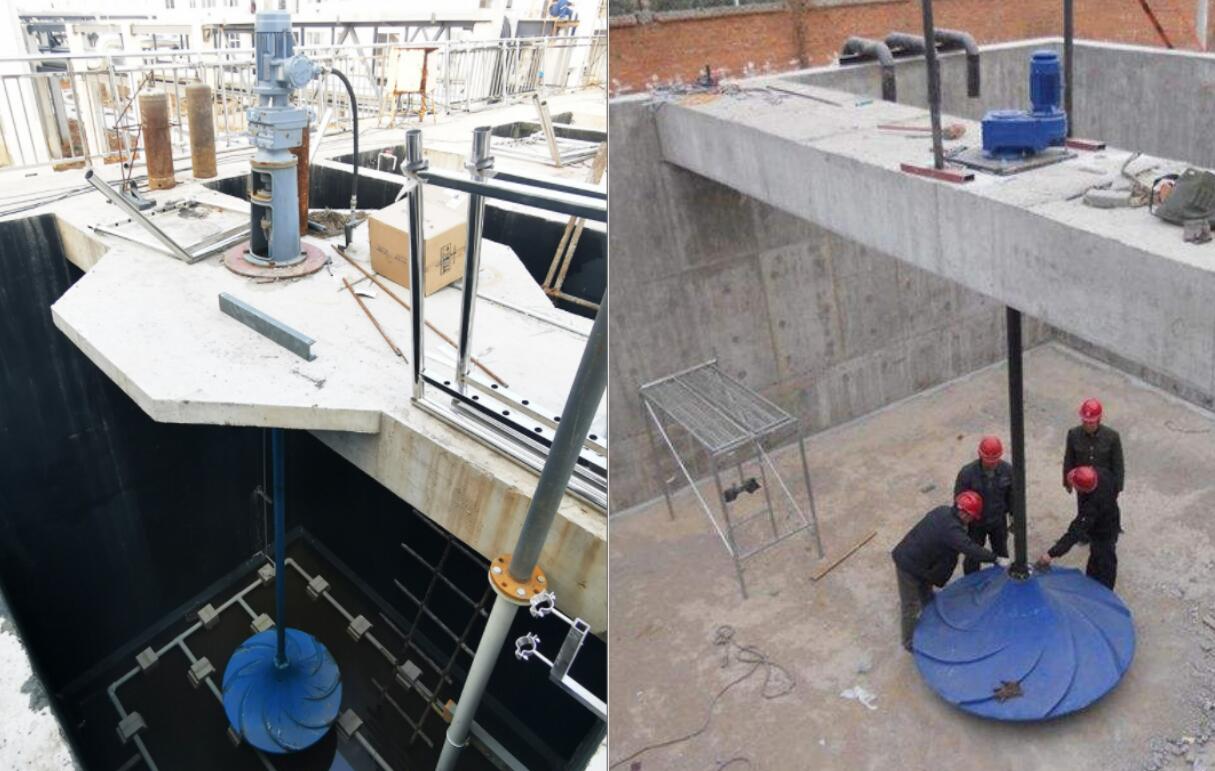

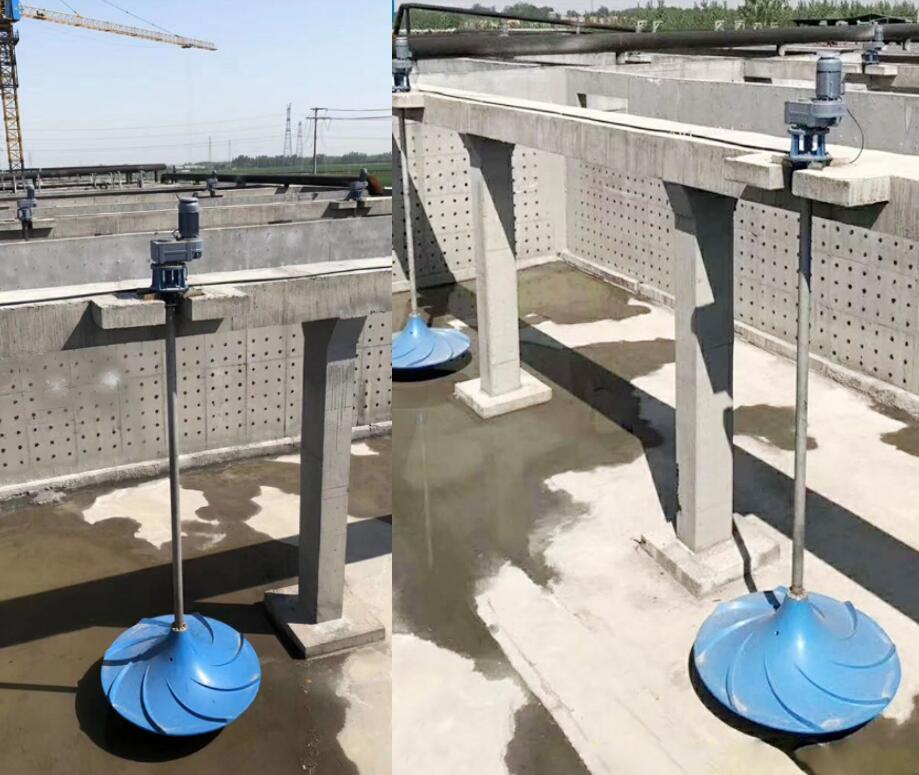

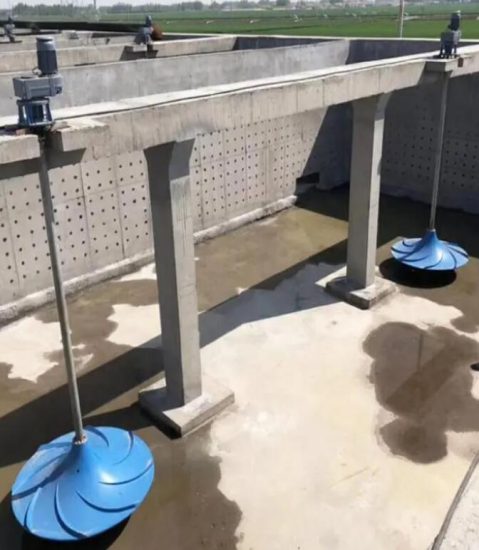

It is because of the hyperbolic mixer impeller’s structural characteristics and close to the bottom of the pool installation characteristics, determines it in the work of the ideal mixing effect can be obtained, can effectively eliminate the mixing of dead ends.
Features
1、Good flow pattern:good mixing effect, no mixing dead space.
2、Energy-saving:Large specific surface area impeller, equipped with low power.
3、Convenient:flexible installation and easy maintenance.
High energy efficiency is crucial in today’s world. Energy costs are rising and we need to reduce our carbon footprint. The Hyperbolic Mixer meets these needs with a mixer that requires minimal energy consumption. Its backward curved pump vanes are specially shaped and orientated to move the maximum amount of water with the minimum power input. Our highly efficient gearbox design minimises parasitic power losses, thus maximising the power transferred to the water.
Reducers are selected with a high service factor in mind, with a calculated life in excess of 100,000 hours. Heavy-duty output bearings provide adequate support for all loads applied to the rotor, eliminating the need for lower guide bearings. In addition, the oversized drive shaft and sturdy mounting base minimise rotor deflection and vibration.
Parts in contact with liquids are made of 304 or 316 stainless steel for corrosion resistance. Special coatings and materials are available on request for extremely saline corrosive wastewater.

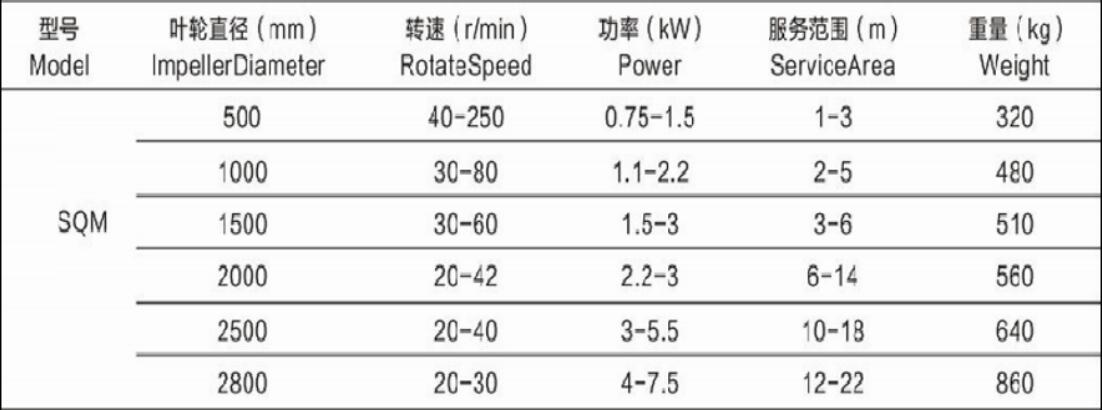

Hyperbolic agitators are commonly used in the water and wastewater treatment industry. The supporting power required by the mixer is determined according to the volume size, the density, viscosity and mixing depth of the mixing liquid, and one or more mixer should be used according to the specific situation. Please contact us, for the selection questions.
