Introduction
In today’s industrial landscape, efficient and reliable fluid filtration is crucial for maintaining operational integrity and ensuring product quality. Pall High-Flow Filter Cartridges are designed to meet these demands with exceptional performance and versatility. This article explores the product description, working principles, components, technical specifications, and application fields of Pall High-Flow Filter Cartridges, showcasing their significance in various industries.
Product Description

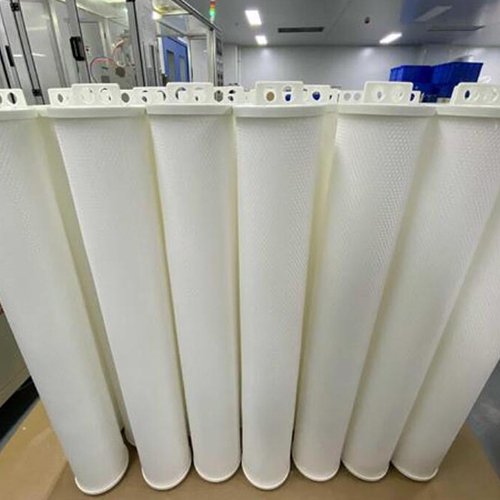

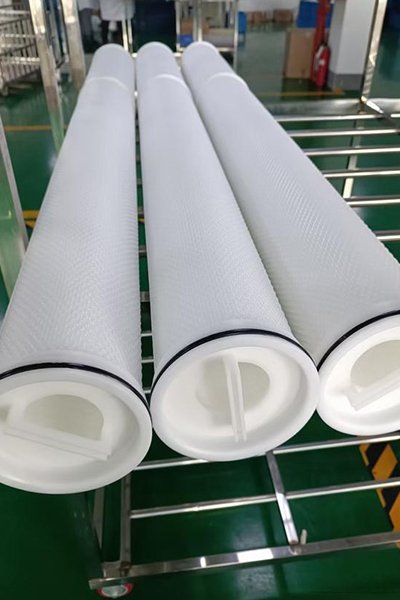

Pall High-Flow Filter Cartridges are advanced filtration devices engineered to handle large volumes of fluid with high efficiency and minimal pressure drop. These cartridges are designed to provide superior contaminant removal while extending service life and reducing maintenance costs. They are widely used in industries such as water treatment, petrochemicals, power generation, and food and beverage, where high flow rates and stringent filtration requirements are essential.
Working Principle
The working principle of Pall High-Flow Filter Cartridges is based on depth filtration, where contaminants are captured throughout the entire depth of the filter media. Here’s a detailed look at how these cartridges function:
- Contaminated Fluid Intake: The fluid enters the filter housing and flows through the high-flow filter cartridge.
- Depth Filtration: The filter media, composed of multiple layers of fibers, traps contaminants of varying sizes throughout its depth. This multi-layer structure enhances contaminant retention capacity and extends the filter’s service life.
- Flow Distribution: The design of the filter ensures even flow distribution across the entire filter media, preventing channeling and ensuring maximum utilization of the filter surface.
- Clean Fluid Discharge: The filtered fluid exits the cartridge, free from contaminants, and is ready for further processing or use.
- Periodic Maintenance: The high contaminant-holding capacity of the cartridges reduces the frequency of replacements and maintenance, optimizing operational efficiency.
Product Composition
Pall High-Flow Filter Cartridges are composed of several key components that contribute to their exceptional performance:
- Filter Media: The core of the cartridge, typically made from polypropylene or other advanced materials, provides high contaminant retention and mechanical strength. The media are designed in a multi-layered structure to capture particles of different sizes effectively.
- Core and Cage: The inner core and outer cage, usually made from high-strength materials like stainless steel or reinforced plastic, provide structural integrity and support to the filter media, ensuring durability under high flow and pressure conditions.
- End Caps: Made from robust materials, the end caps seal the filter media and ensure a secure fit within the filter housing, preventing bypass and ensuring all fluid passes through the filter media.
- O-Rings and Seals: These components ensure a leak-proof seal between the filter cartridge and the housing, maintaining filtration efficiency and preventing contamination.
Technical Specifications
Pall High-Flow Filter Cartridges come with a range of technical specifications tailored to meet diverse application needs. Key specifications include:
- Flow Rate: Capable of handling high flow rates, often ranging from 100 to 500 gallons per minute (GPM), making them suitable for large-scale industrial applications.
- Filtration Efficiency: High filtration efficiency, typically rated at 99.9%, ensuring the removal of particles as small as 1 micron.
- Dirt-Holding Capacity: High contaminant-holding capacity, reducing the frequency of filter replacements and maintenance.
- Pressure Drop: Low initial pressure drop, enhancing system efficiency and reducing energy consumption.
- Temperature and Chemical Resistance: Designed to operate within a wide temperature range (typically -20°C to 80°C) and resistant to various chemicals, ensuring durability and reliability in harsh environments.
- Dimensions: Available in various lengths and diameters to fit different filter housings and accommodate various flow requirements.
Application Fields
Pall High-Flow Filter Cartridges are versatile and used across multiple industries where efficient and reliable fluid filtration is essential. Here are some common application fields:
- Water Treatment: Used in municipal and industrial water treatment plants to remove suspended solids, bacteria, and other contaminants, ensuring the supply of clean and safe water.
- Petrochemicals: Employed in refineries and petrochemical plants to filter process fluids, protecting equipment from fouling and corrosion and ensuring product quality.
- Power Generation: Used in power plants to filter cooling water, boiler feed water, and lubricants, enhancing the efficiency and reliability of turbines and other critical equipment.
- Food and Beverage: Ensures the purity of water and other fluids used in the production process, maintaining product quality and compliance with health and safety standards.
- Pharmaceuticals: Used in pharmaceutical manufacturing to filter process fluids, ensuring the purity of products and compliance with stringent regulatory standards.
- Automotive: Filters fluids in various automotive manufacturing processes, protecting equipment and ensuring the quality of final products.
Conclusion
Pall High-Flow Filter Cartridges are indispensable in modern fluid filtration systems, offering superior performance, durability, and efficiency across a wide range of applications. Their advanced design and high contaminant-holding capacity make them a reliable choice for industries that require high flow rates and stringent filtration standards. By understanding their working principles, components, technical specifications, and application fields, industries can effectively implement Pall High-Flow Filter Cartridges to enhance operational efficiency, reduce maintenance costs, and ensure product quality.
