Introduction
Parker’s High Flow Cartridge Filters are indispensable tools for ensuring the purity and quality of fluids in various industrial applications. Known for their high efficiency and robust design, these filters are capable of handling large volumes of fluids while maintaining superior filtration performance. This article provides a comprehensive overview of Parker High Flow Cartridge Filters, detailing their introduction, working principle, components, technical specifications, and application fields.
Product Introduction

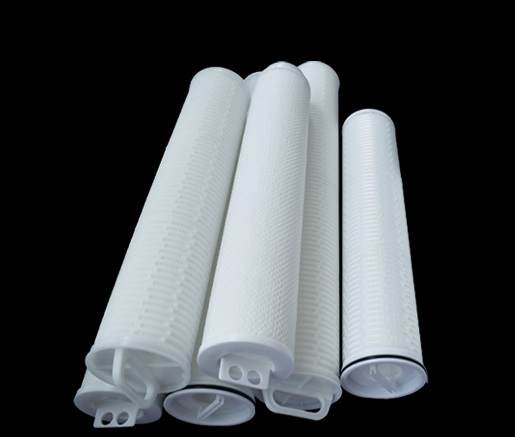

Parker High Flow Cartridge Filters are engineered to provide exceptional filtration in high flow rate applications. These filters are designed to remove contaminants from liquids and gases, ensuring the purity of the output. They are widely used in industries such as water treatment, oil and gas, pharmaceuticals, food and beverage, and chemical processing due to their reliability and efficiency.
Working Principle
The working principle of Parker High Flow Cartridge Filters revolves around a combination of depth filtration and surface filtration:
- Depth Filtration: The filtration media used in Parker High Flow Cartridge Filters is designed to capture contaminants throughout the entire depth of the material. This allows for the removal of particles of various sizes, enhancing dirt-holding capacity and extending the filter’s life.
- Surface Filtration: The outer surface of the filtration media captures larger particles, preventing them from penetrating deeper into the filter. This dual filtration mechanism ensures that finer particles are effectively trapped within the depth of the media.
- Flow Path: Fluid enters the filter from the outside and flows through the filtration media to the core. As the fluid passes through, contaminants are trapped, and clean fluid exits through the central core. This design maximizes the filtration surface area, ensuring consistent flow rates and high filtration efficiency.
Product Components
Parker High Flow Cartridge Filters consist of several key components that contribute to their performance and durability:
- Filtration Media: The filtration media is the core of the filter. Parker utilizes advanced materials such as polypropylene, polyester, and glass fiber to ensure high filtration efficiency and chemical compatibility. The media is often pleated to increase the surface area and enhance dirt-holding capacity.
- Core: The core provides structural support to the filtration media. It is typically made from materials like polypropylene or stainless steel, ensuring strength and durability under high flow and pressure conditions.
- End Caps: The end caps seal the filtration media and core, preventing bypass and ensuring that all fluid passes through the filter media. They are made from materials compatible with the filtration media and the fluid being filtered.
- O-Rings and Gaskets: These components provide a secure seal between the filter cartridge and the housing, preventing leaks and ensuring reliable operation. They are made from materials such as EPDM, Viton, or silicone, chosen based on chemical compatibility and temperature requirements.
- Support Layers: Additional layers of material may be added to the filtration media to provide extra strength and prevent media migration. These support layers ensure the integrity of the filter under high flow and pressure conditions.
Technical Specifications
Understanding the technical specifications of Parker High Flow Cartridge Filters is essential for selecting the right filter for a specific application. Key specifications include:
- Filtration Rating: The filtration rating indicates the size of particles that the filter can effectively capture. Parker High Flow Cartridge Filters are available in various ratings, typically ranging from 1 micron to 100 microns, to suit different filtration needs.
- Flow Rate: The flow rate measures the volume of fluid that can pass through the filter per unit of time. Parker High Flow Cartridge Filters are designed to handle high flow rates, often ranging from 50 to 1,000 gallons per minute (GPM) or more, depending on the filter size and application.
- Pressure Drop: The pressure drop is the reduction in pressure as the fluid passes through the filter. Parker High Flow Cartridge Filters are designed to minimize pressure drop, ensuring efficient fluid flow and reducing energy consumption.
- Dirt-Holding Capacity: This specification indicates the amount of contaminants that the filter can capture before needing replacement. Parker High Flow Cartridge Filters have a high dirt-holding capacity, extending the service life and reducing maintenance frequency.
- Temperature Range: The temperature range specifies the allowable operating temperatures for the filter. Parker High Flow Cartridge Filters are designed to operate within a wide temperature range, typically from -20°C to 120°C (-4°F to 248°F), depending on the materials used.
- Chemical Compatibility: The materials used in Parker High Flow Cartridge Filters are chosen for their compatibility with a wide range of chemicals, ensuring reliable performance in various applications.
Application Fields
Parker High Flow Cartridge Filters are used in a wide range of applications to ensure the purity and quality of fluids:
- Water Treatment: In municipal and industrial water treatment plants, Parker High Flow Cartridge Filters remove suspended solids, microorganisms, and other contaminants, providing clean and safe water for consumption and use.
- Oil and Gas: In the oil and gas industry, these filters are used to remove particulate matter and contaminants from produced water, injection water, and process fluids, ensuring the efficiency and reliability of equipment and processes.
- Pharmaceuticals: In pharmaceutical manufacturing, Parker High Flow Cartridge Filters ensure the purity of water for injection (WFI), process water, and other fluids, meeting stringent regulatory standards for quality and safety.
- Food and Beverage: In the food and beverage industry, these filters remove contaminants from ingredients, process water, and final products, ensuring the safety and quality of consumables.
- Chemical Processing: In chemical processing, Parker High Flow Cartridge Filters are used to remove impurities from raw materials, process fluids, and finished products, ensuring product quality and protecting downstream equipment.
- Power Generation: In power plants, these filters remove particulate matter and contaminants from cooling water, boiler feedwater, and other process fluids, ensuring the efficiency and reliability of plant operations.
- Automotive: In the automotive industry, Parker High Flow Cartridge Filters are used to filter paints, coatings, lubricants, and other fluids, ensuring the quality and consistency of products.
- Electronics: In electronics manufacturing, these filters provide ultrapure water and process fluids, ensuring the quality and performance of semiconductor devices and other electronic components.
- Mining: In mining operations, Parker High Flow Cartridge Filters remove particulate matter and contaminants from process water and other fluids, ensuring the efficiency
