| Material: | Chemical Fiber |
|---|---|
| Application: | Industry, Food and Beverage, Medicine, Textile, Metallurgy |
| Type: | Folding Microporous Filter |
| Filter Connector: | Flat Connector |
| Filtration Grade: | HEPA Filter |
| Activated Carbon Filter Type: | Bulk Type |
Product Introduction:

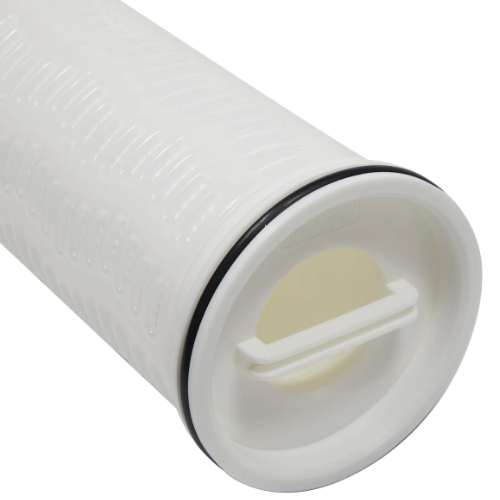

Parker’s high-flow filter element provides a solution to effectively replace deep-layer and other 2-1/2″ inner diameter filter elements in high-flow situations, such as reverse osmosis prefiltration and similar nominal efficiency requirements. Each Parker ( PAKER) large flow filter element can handle flow rate up to 1300LPM, which significantly reduces the number and size of filter elements. The processing capacity of a PAKER large flow filter element is equivalent to 10 filter elements with an inner diameter of 2-1/2″ and a length of 40″. Quantity. The positively charged O-ring seal and the built-in handle make the installation of the filter element fast, safe and convenient.
PARKER MFNP100-60N High Flow Rate Filter product Features:
1.The filter element has large dirt holding capacity and long service life
2.Less replacement times to reduce labor costs
3.The design of the sealed interface reduces the risk of side flow and improves the filtration efficiency
4.Easy to install, low labor cost
5.A wide range of chemical applications can be used in a variety of fields
PARKER MFNP100-60N High Flow Rate Filter technical specifications:
| Filter material | polypropylene (PP), glass fiber |
| Support / diversion layer | polypropylene |
| End cover material | glass fiber reinforced polypropylene |
| Sealing ring material | ethylene propylene rubber |
| Filtration accuracy | 1μm, 4.5μm, 5um, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm |
| Maximum operating temperature | 82ºC |
| Maximum pressure drop | 3.4Bar at 82ºC |
| Recommended maximum filtered water flow | 1300LPM |

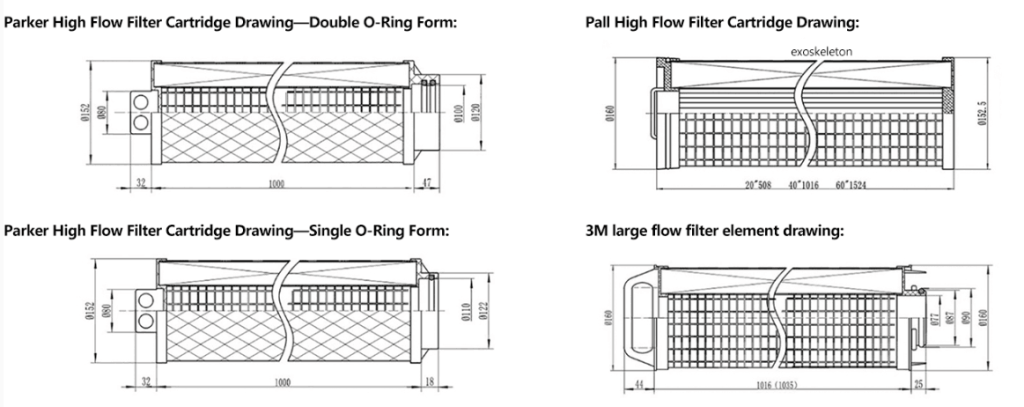

The detail of Parker high flow rate water filter:
