Type: Filter Cartridge
Usage: Environmental Protection, Chemical Industry, Power/Paper/Steel/Petro-Chemical Plant
Motive Force: Pressure
Style: Vertical
Performance: Sophisticated Filters
Certification: ISO9001/SGS
Product Introduction:

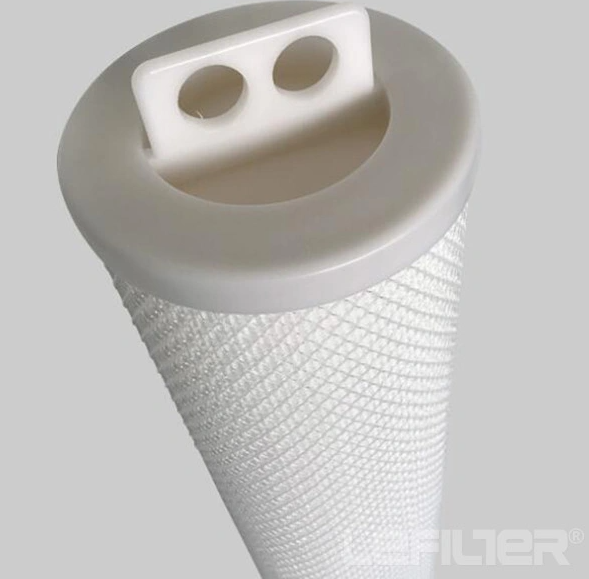

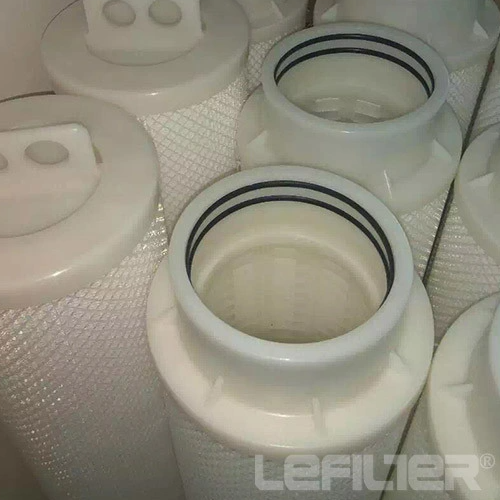

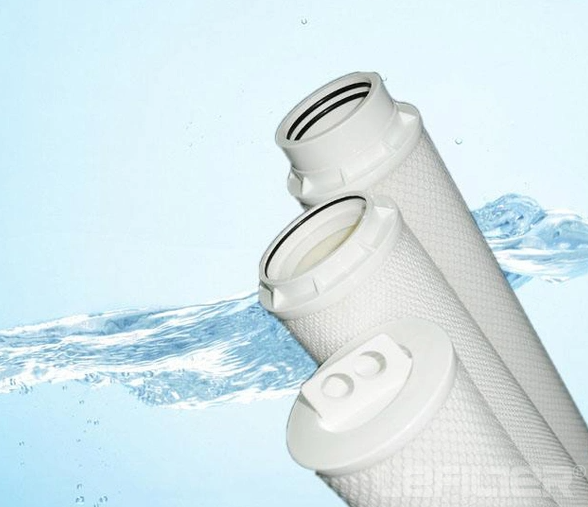

Parker filter provides a filtering scheme which can effectively replace deep and other inner diameter 2-1/2″ forms in heavy- flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. The capacity of a park filter is equivalent to 10 filters with diameter 2-1/2″, length 40″. Positively charged type O sealing ring and a built-in handle make the filter installation fast, safe and convenient.
Features of High Flow water filter cartridge RCP010-20EPP:
Great capacity of impurity and long life.
Less replacement saves labor cost.
Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
Easier installment and lower labor cost
They are applied in various fields with their extensive chemical applications
Specifications of High Flow Water Filters RCP010-20EPP:
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 40″ (1016mm) |
| Cartridge Max.OD: | 6.0″(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton, |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 40″ 1300LPM |
