| Type: | Water Filter |
|---|---|
| Usage: | Power/Paper/Steel/Petro-Chemical Plant |
| Motive Force: | Pressure |
| Style: | Filter Housing |
| Performance: | Efficient Filtration |
| Certification: | ISO9001:2015 |
Product Introduction:

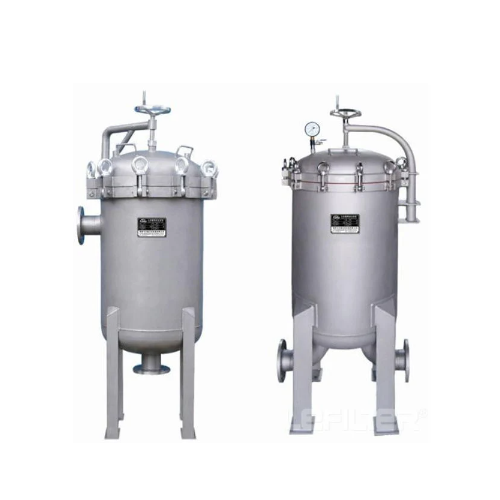

The cartridge filter is made of 304 or 316L stainless Steel. With the advantages of light-weight, easy to use, large filter area, high filtering speed and non-clogging, it is widely used in pre-treatment and filtration.
This filter could be equipped with different filter element, such as PP melt-blown cartridge, pleated cartridge filter, string-wound filter and activated carbon filter. The models are varied from 10″ to 40″.
Rapid filter includes clamp filter and flange filter. The biggest pressure capacity of clamp filter is 0.6Mpa,and the flange filter is 1.0Mpa. The maximum of pressure capacity could be 1.6Mpa.
Specification and Technical Parameter of the Clamp:
| Diameter | specification | flow rate | Dimension of inlet and outlet |
| Φ167 | 3 core 10″ | 1T | DN25 |
| Φ167 | 3 core 20″ | 1.5T | DN25 |
| Φ219 | 5 core 10″ | 1.5T | DN25 |
| Φ219 | 5 core 20″ | 3T | DN32 |
| Φ219 | 5 core 30″ | 5T | DN32 |
| Φ219 | 5 core 40″ | 7T | DN40 |
| Φ219 | 7 core 10″ | 5T | DN32 |
| Φ219 | 7 core 20″ | 7T | DN40 |
| Φ219 | 7 core 30″ | 10T | DN50 |
The Specification and Technical Parameter of the Flange:
| Diameter | Specification | Wall thickness | Flow rate | Dimension of inlet and outlet | Notes |
| Φ300 | 10 core 40″ | 2mm | 15T | DN50 | Flange |
| Φ350 | 15 core 40″ | 2 mm | 25T | DN65 | Flange |
| Φ400 | 20 core 40″ | 2 mm | 35T | DN80 | Flexible flange |
| Φ450 | 25 core 40″ | 2.5 mm | 45T | DN80 | Flexible flange with rocker arm |
| Φ500 | 30 core 40″ | 3 mm | 55T | DN80 | Flexible flange with rocker arm |
| Φ550 | 35 core 40″ | 3 mm | 65T | DN100 | Flexible flange with rocker arm |
| Φ600 | 40 core 40″ | 3 mm | 75T | DN100 | Flexible flange with rocker arm |
| Φ700 | 60 core 40″ | 3 mm | 100T | DN150 | Flexible flange with rocker arm |
| Φ800 | 70 core 40″ | 3 mm | 120T | DN150 | Flexible flange with rocker arm |
