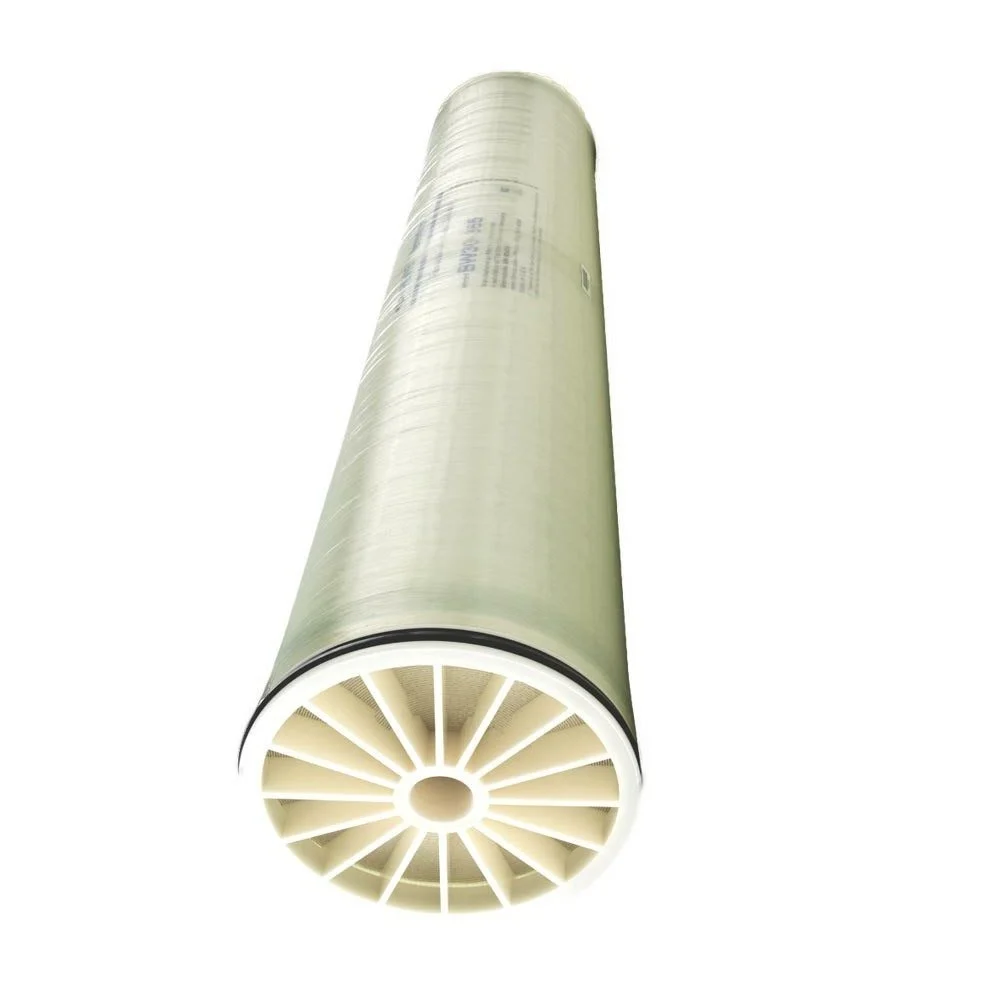

Thermal power plant boiler make-up water and semiconductor chip cleaning ultrapure water put forward extremely strict requirements on silica, heavy metal and TOC removal performance of RO membrane. Ordinary low-flux membrane elements cannot effectively intercept silicon dioxide, which is easy to form hard scale on boiler tubes and precision electronic equipment, increasing equipment failure rate. Our standard LF-BW brackish water RO membrane adopts high-density polyamide separation layer, the interception rate of SiO2 is higher than 98%, the overall stable salt rejection rate reaches 99.7%, and the single membrane area is up to 440 square feet, which can realize large-volume stable water production under medium pressure working conditions. It is the mainstream standard RO membrane for two-stage RO + EDI ultrapure water system in power and electronics industries.
Complete specifications of LF-BW RO membrane and matched industrial UF membrane modules are displayed in our water filter element series.
Main Industrial Application Fields
1. Large thermal power plant boiler supplementary pure water desalination station
2. Lithium battery and photovoltaic panel cleaning ultrapure water production line
3. Semiconductor two-stage RO + EDI high-purity water equipment
4. Large pharmaceutical factory injection purified water system
5. Mine underground brackish water centralized treatment station
6. Large food factory central edible pure water unit
Core High Purity Water Performance Advantages
1. Excellent silica and TOC interception capacity, avoid boiler and electronic equipment scaling
2. Max 440 sq.ft large membrane area, single element daily water output up to 47.3 cubic meters
3. Stable salt rejection rate as high as 99.7, produce low conductivity qualified pure water
4. Low long-term operating differential pressure, reduce pump energy loss
5. Direct replacement of international mainstream brand 4040/8040 membrane elements
6. Perfect matching with backwash PVDF UF membrane pretreatment system
Picture 2 ALT: Power Plant Dual Membrane Ultrapure Water Treatment Flow Chart | LEFILER
Full LF-BW Series Complete Model List
LF-BW-4021, LF-BW-4040, LF-BW-8040, LF-BW-8040-400, LF-BW-8040-440, LF-BW-8040-440PRO
The front end of BW RO membrane system must be equipped with external pressure PVDF UF membrane and 5μm large-flow security filter cartridges to control inlet SDI ≤3, ensure long-term stable operation of the two-stage ultrapure water system and reduce EDI module maintenance frequency. We have rich project delivery experience in the global power and new energy industry.
