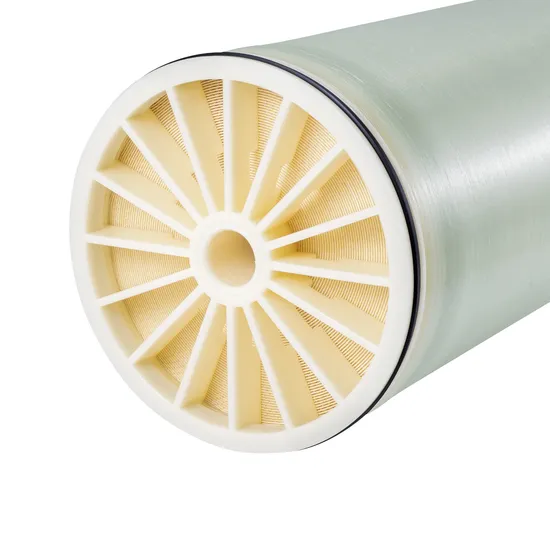

Printing & dyeing wastewater, steel plant circulating water and municipal tertiary reclaimed water contain massive organic sludge, algae and biological mucus. Ordinary standard RO membrane will form thick biofilm within 1-2 months of continuous operation, leading to sharply rising differential pressure, reduced water production and mandatory monthly shutdown chemical cleaning, which brings huge production loss and high chemical agent cost to factories. Our LF-BW-FR anti-fouling brackish RO membrane upgrades two core structures: modified hydrophilic TFC coating and widened 34mil internal flow channel, which greatly slows pollutant accumulation and extends the chemical cleaning cycle from 1-2 months to more than 6 months. Even under long-term high-COD raw water operation, it can maintain stable salt rejection above 99.6%.
For heavy pollution working conditions, we recommend matching PVDF external pressure UF membrane as primary filtration to intercept most colloids and oil emulsions in advance, reduce the pollution load of RO elements and maximize the service life of reverse osmosis systems. Full BW-FR series specifications and matched ultrafiltration modules can be checked in our water filter element series.
Main Industrial Application Scenarios
1. Printing and dyeing factory wastewater zero discharge desalination system
2. Steel mill circulating cooling water advanced reuse equipment
3. Municipal secondary sewage landscape water recycling station
4. Landfill leachate secondary reverse osmosis deep treatment
5. Petrochemical and coal chemical high organic wastewater recovery line
6. Electroplating factory heavy metal wastewater pretreatment desalination unit
Unique Anti-Fouling Core Strengths
1. Super hydrophilic membrane surface coating, repel organic matter and microbial adhesion effectively
2. Wider 34mil feed channel, reduce dirt stacking inside membrane elements
3. Stable salt rejection ≥99.6 under continuous high-pollution water inlet
4. Excellent flux recovery after sodium hypochlorite and acid-alkali cyclic cleaning
5. Wide chemical cleaning pH tolerance range 1-13, adapt to strong detergent
6. Complete 4-inch and 8-inch universal sizes, compatible with all standard FRP pressure vessels
Full LF-BW-FR Series Complete Model List

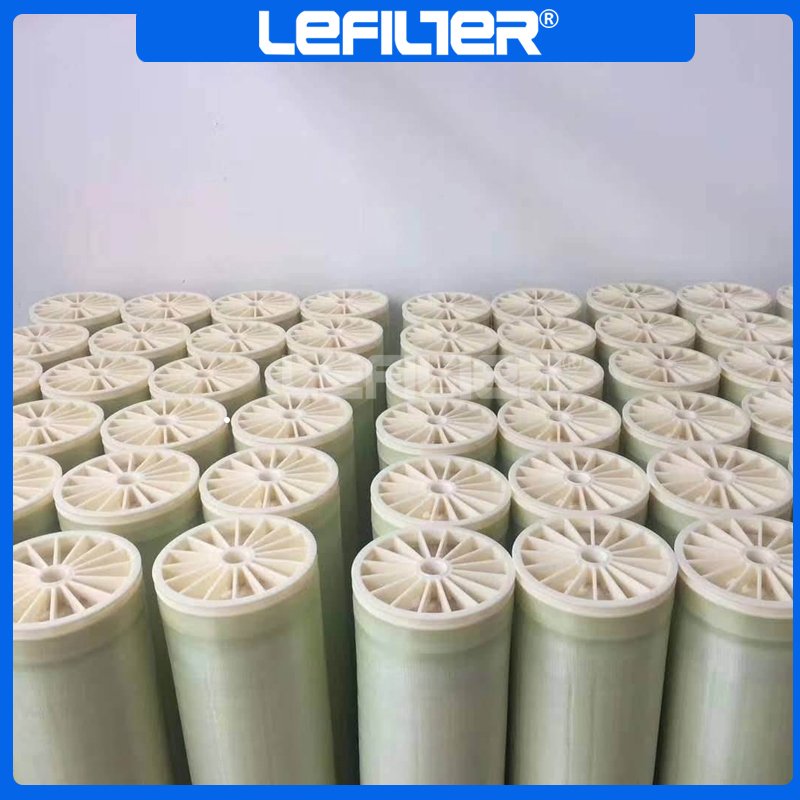

LF-BW-4040FR, LF-BW-8040FR, LF-BW-8040FR-PRO, LF-BW-8040FR-440D
We provide project-level customized matching schemes for large sewage treatment plants, including membrane area calculation and cleaning cycle optimization suggestions according to on-site water quality monitoring data.
