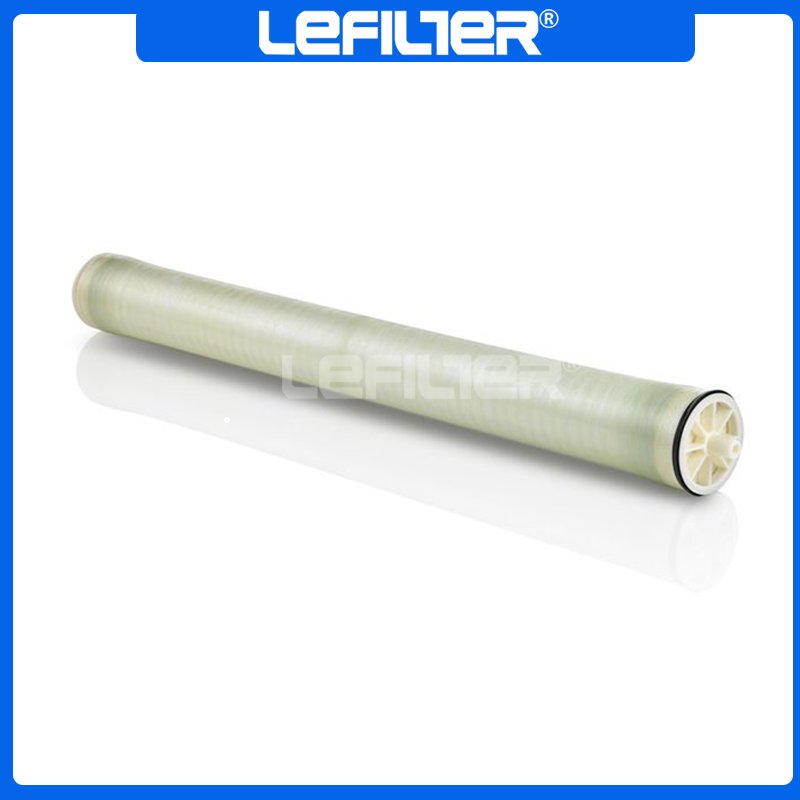

Conventional brackish RO membrane cannot bear the 32000ppm high salt concentration and 800psi extreme working pressure of raw seawater, which will lead to separation layer rupture and rapid flux attenuation after short-term operation, unable to produce qualified drinking fresh water directly. Our self-developed LF-SW seawater desalination RO membrane adopts fully reinforced winding structure and high-pressure resistant polyamide separation layer, supporting maximum 800psi continuous operation, and achieves stable 99.7 salt rejection rate in single-stage seawater filtration without secondary concentration treatment. The thickened hollow fiber structure avoids fiber breakage under long-term high-pressure impact, and the anti-crystallization surface coating slows sodium chloride scale accumulation greatly.
Complete multi-stage pretreatment system must be equipped for seawater projects: multimedia filter + activated carbon + PVDF external pressure UF membrane to intercept marine sediment, algae and plankton, prevent irreversible scratch damage to SW membrane separation layer. All SW series seawater RO elements are listed in our complete water filter element series.
Main Industrial Application Scenarios
1. Cargo ship and yacht onboard compact seawater desalination unit
2. Remote coastal island resident centralized fresh water supply station
3. Offshore oil & gas platform domestic water treatment equipment
4. Marine aquaculture factory circulating water purification system
5. High-salinity underground salt well water desalination project
6. Coastal resort integrated domestic water supply equipment
High Pressure Resistant Performance Advantages
1. Reinforced winding structure, maximum allowable operating pressure up to 800psi
2. Constant 99.7 stable salt rejection for all seawater salinity ranges 10000-32000ppm
3. Thickened hollow fiber avoid rupture under long-term high-pressure impact
4. Special anti-scaling surface slow salt crystal accumulation on membrane surface
5. Full size options from small 2521 to large industrial 8040 membrane
6. Wide cleaning pH range 1-13, support regular descaling chemical washing
Full LF-SW Series Complete Model List
LF-SW1-4021, LF-SW1-2540, LF-SW1-4040, LF-SW2-8040, LF-SW2-8040-PRO, LF-SW3-2540, LF-SW3-2521, LF-SW3-4021
Our engineers provide one-stop complete seawater desalination process design, including raw water pretreatment matching scheme and membrane quantity calculation according to local seawater salinity parameters.
