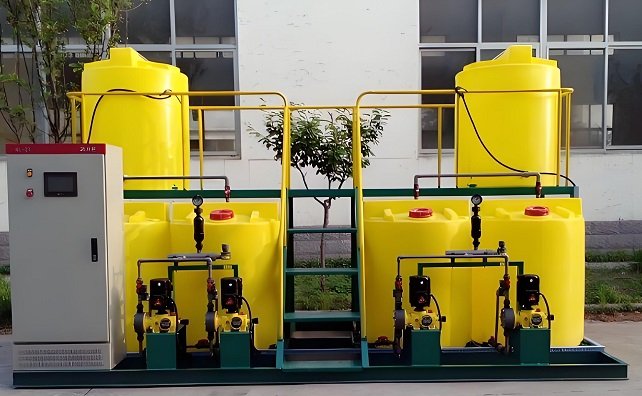

Automatic Chemical Dosing Device: Intelligent Precision for Industrial Process Optimization

Product Introduction

An automatic chemical dosing device is a cutting-edge industrial solution designed to deliver precise, automated, and adaptive chemical injection across critical processes, ranging from water/wastewater treatment to complex manufacturing workflows. At its core, the technology leverages real-time sensor integration, adaptive control algorithms, and high-precision actuation systems to maintain optimal chemical concentrations with minimal human intervention. By replacing manual dosing—prone to inconsistency and inefficiency—these systems enable industries to achieve regulatory compliance, reduce operational costs, and enhance process reliability. The device typically comprises sensor arrays, programmable controllers, metering pumps, and safety interlocks, all (collaboratively) optimized to adjust dosing rates in response to dynamic process parameters.

Working Principle

Multi-Parameter Sensing Framework
The device employs a network of advanced sensors to monitor process variables:
- Flow Measurement: Coriolis or ultrasonic flow meters provide real-time volumetric data, forming the basis for proportional dosing (e.g., 5 ppm of coagulant per cubic meter of water).
- Analytical Sensing: pH electrodes, dissolved oxygen (DO) sensors, and turbidity meters continuously measure fluid characteristics. In a boiler water system, a conductivity sensor might trigger anti-scalant dosing when total dissolved solids (TDS) exceed 500 ppm.
- Environmental Sensing: Temperature and pressure transducers adjust dosing profiles in response to seasonal or operational shifts, such as increasing corrosion inhibitor dosage in warmer months.
Adaptive Control Algorithms
A central processing unit executes sophisticated control strategies:
- Model Predictive Control (MPC): Predicts future process states based on historical data and adjusts dosing rates to prevent deviations. For example, an MPC algorithm in a wastewater plant might pre-dose polymer flocculant ahead of incoming high-turbidity stormwater.
- Fuzzy Logic Control: Handles non-linear relationships, such as adjusting acid dosing rates in a pH neutralization tank where small dosage changes yield exponential pH shifts.
- Batch vs. Continuous Modes: Switches between continuous dosing for steady processes and batch dosing for periodic treatments, like shock chlorination in swimming pools.
Precision Actuation Mechanisms
The actuation system ensures accurate chemical delivery:
- Servo-Controlled Pumps: High-torque stepper motors drive diaphragm pumps with ±0.5% flow accuracy, ideal for critical applications like pharmaceutical buffer solutions.
- Pulse Width Modulation (PWM): Adjusts pump speed in real time, enabling fine-grained control (e.g., switching from 10 L/h to 12.5 L/h within 2 seconds for sudden flow spikes).
- In-Line Mixing: Static mixers with helical elements ensure rapid chemical dispersion, preventing localized over-concentration that could damage downstream equipment.

Core Components and Design Innovations

Modular Chemical Storage Units
- Smart Tank Systems: IoT-enabled tanks with:
  - 3D level sensors using time-of-flight technology for ±1 mm accuracy.
  - Corrosion-resistant linings (e.g., PTFE for hydrofluoric acid storage).
  - Automated refill systems that order chemicals when levels drop below 20%, integrating with enterprise resource planning (ERP) software.
- Thermal Management: Heating/cooling jackets maintaining chemical viscosity (e.g., keeping wax-based inhibitors liquid at 60°C in cold climates).
Intelligent Dosing Pumps
- Hydraulic Diaphragm Pumps: Equipped with:
  - Pressure transducers that auto-adjust stroke length to maintain constant flow under varying backpressures.
  - Leak detection membranes between hydraulic and chemical chambers, triggering alarms if breached.
- Electromagnetic Dosing Pumps: Brushless DC motors with built-in diagnostics, reporting motor temperature, current draw, and expected lifespan based on usage patterns.
Industrial IoT (IIoT) Integration
- Edge Computing Nodes: Process data locally to reduce latency, with edge-to-cloud synchronization for:
  - Predictive maintenance alerts (e.g., “Pump seal replacement recommended in 14 days based on vibration analysis”).
  - Remote recipe management, allowing operators to switch dosing protocols for different production runs.
- Digital Twins: Virtual models that simulate dosing scenarios, optimizing setpoints before deploying changes in physical systems.
Enhanced Safety Ecosystem
- Explosion-Proof Design: Zone 1 certified enclosures with pressure relief valves and spark arrestors.
- Chemical Spill Response: Automated containment systems that deploy absorbent booms and activate neutralization agents when leaks are detected.
- Lockout/Tagout (LOTO) Integration: Electrical interlocks preventing accidental operation during maintenance.

Industry Applications and Case Studies

Power Generation
- Condensate Treatment in Power Plants
  A combined cycle power plant uses an automatic dosing system to inject amine-based corrosion inhibitors into condensate lines. The system uses dew point sensors and steam flow data to adjust dosage, reducing iron content in condensate from 50 ppb to <10 ppb, extending turbine lifespan by 30%.
Microelectronics Manufacturing
- Ultra-Pure Water (UPW) Treatment
  In a semiconductor fab, a dosing device injects hydrogen peroxide (H2O2) into UPW loops for microbial control. The system employs UV absorbance sensors to monitor organic carbon levels, adjusting H2O2 dosage between 5–20 ppm to maintain total organic carbon (TOC) <5 ppb, critical for wafer cleaning processes.
Mining and Mineral Processing
- Cyanide Dosing in Gold Extraction
  A gold mine uses an automatic system to dose sodium cyanide in leach tanks. The device integrates ore grade sensors and slurry pH meters, optimizing cyanide concentration between 0.05–0.1% to maximize gold recovery while minimizing cyanide waste, achieving a 12% increase in gold extraction efficiency.

Performance Metrics and Technical Edge

Precision Engineering
- Dosage repeatability: ±0.8% of setpoint over 24 hours, verified via gravimetric testing.
- Minimum detectable dosage change: 0.1 L/h for small-scale systems, enabling micro-dosing in research laboratories.
Operational Efficiency Gains
- Chemical cost savings: 25–50% reduction in consumption, with case studies showing $300,000 annual savings in a medium-sized wastewater plant.
- Downtime reduction: 90% fewer process interruptions due to automated fault detection, compared to manual systems.
Regulatory Compliance
- Real-time reporting: Generates ISO 9001-compliant logs with timestamped dosage data, suitable for FDA audits in pharmaceutical applications.
- Remote compliance monitoring: Allows regulatory agencies to access anonymized dosing data via secure portals, reducing on-site inspections by 40%.

Technical Advantages

Precision and Repeatability
- Dosage accuracy: ±1–2% of setpoint, compared to ±10% in manual systems.
- Response time: <15 seconds for feedback control adjustments, critical in rapidly changing processes.
Operational Efficiency
- Chemical savings: 20–40% reduction in usage, with payback periods typically 6–18 months.
- Labor cost reduction: 80% fewer manual interventions, freeing operators for higher-value tasks.
Scalability and Flexibility
- Modular design allows easy expansion, with add-on modules for additional chemical streams or sensor inputs.
- Hot-swappable components (e.g., pump heads, sensors) enable maintenance without system shutdown.
Environmental Impact
- Reduced chemical waste: 30–50% lower discharge of untreated chemicals, aligning with ISO 14001 standards.
- Energy efficiency: VFDs and low-power sensors consume 30% less electricity than traditional systems.

Maintenance and Operation Considerations

Predictive Maintenance Protocols
- Vibration Analysis: Accelerometers on pumps detect early signs of bearing wear, with AI algorithms predicting failure 30–60 days in advance.
- Fluid Analysis: On-line viscometers and particle counters assess chemical degradation, triggering automatic tank flushing when viscosity deviates by >15%.
Calibration and Validation
- Automatic Sensor Calibration: Self-calibrating pH sensors using reference electrodes and buffer solutions stored in onboard cartridges.
- Flow Loop Verification: Periodic closed-loop tests where the system doses into a calibrated tank, comparing actual vs. target volumes to ensure accuracy.
Operator Empowerment
- Augmented Reality (AR) Support: AR glasses guiding technicians through complex maintenance tasks, overlaying step-by-step instructions on physical components.
- Training Simulators: Virtual environments where operators practice adjusting dosing parameters without impacting real processes.

Conclusion

Automatic chemical dosing devices have transcended traditional metering functions to become intelligent process optimization tools, integrating precision engineering with digital innovation. Their ability to deliver adaptive, data-driven dosing has redefined efficiency in industries where chemical accuracy is non-negotiable. As industries move toward full automation and sustainability, these systems will continue to evolve, combining AI, IIoT, and advanced materials to meet the dual challenges of operational excellence and environmental stewardship. The next generation of dosing technology promises not only to optimize chemical use but also to contribute to broader industrial goals of carbon neutrality and circular economy practices.

If you are interested in this product or have any questions, please feel free to contact us at any time.
