Introduction
Brush-type self-cleaning filters are an advanced filtration solution designed to maintain continuous operations by automatically cleaning themselves without interrupting the filtration process. These filters are widely used in various industries to ensure the purity of liquids and protect downstream equipment, thereby enhancing overall system efficiency. This article provides a comprehensive overview of brush-type self-cleaning filters, including their product introduction, working principles, components, technical specifications, and application fields.
Product Introduction
Brush-type self-cleaning filters are designed to remove contaminants from liquids continuously. Unlike traditional filters that require manual cleaning or replacement, these filters automate the cleaning process, reducing maintenance requirements and downtime. They are highly efficient, reliable, and cost-effective, making them an ideal choice for industries that require uninterrupted filtration. The use of brushes for cleaning ensures that the filter media remains free of debris, allowing for continuous and efficient operation.
Working Principle
The working principle of a brush-type self-cleaning filter involves several steps to ensure continuous filtration and automatic cleaning. Here’s a detailed breakdown of the process:
- Filtration Phase: Contaminated fluid enters the filter housing and flows through the filter media. Particles and impurities are trapped within the media, allowing clean fluid to exit the filter.
- Monitoring: The filter system continuously monitors the differential pressure across the filter media. As contaminants accumulate, the pressure difference increases, triggering the cleaning cycle.
- Cleaning Cycle: Once the differential pressure reaches a predetermined threshold, the self-cleaning mechanism is activated.
- Brush Cleaning: In brush-type systems, motor-driven brushes move across the surface of the filter media, dislodging trapped contaminants. The brushes are designed to cover the entire surface area of the filter media, ensuring thorough cleaning.
- Contaminant Removal: The dislodged contaminants are directed to the bottom of the filter housing, where they are expelled through a drain or waste outlet.
- Resumption of Filtration: After the cleaning cycle is completed, the filter automatically resumes normal filtration. This entire process occurs without interrupting the flow of the fluid, ensuring continuous operation.

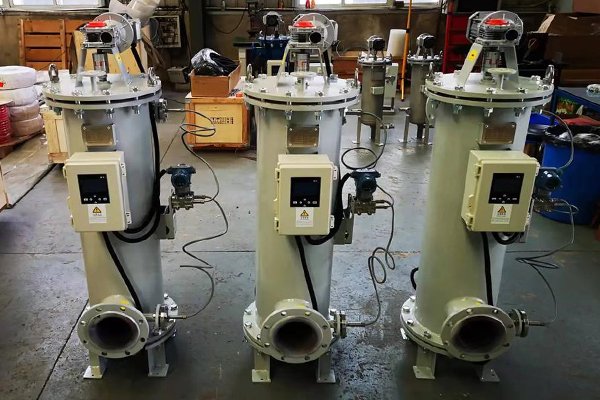

Product Composition
- Brush-type self-cleaning filters consist of several key components that work together to provide efficient and reliable filtration:
- Filter Housing: The outer casing that holds all the internal components, typically made from durable materials like stainless steel or reinforced plastic to withstand high pressures and harsh environments.
- Filter Media: The core component responsible for trapping contaminants, available in various materials and configurations to suit different applications. Common filter media include mesh screens, pleated cartridges, and sintered metal fibers.
- Cleaning Brushes: Motor-driven brushes that move across the surface of the filter media, dislodging trapped contaminants. The brushes are typically made from durable materials like nylon or stainless steel.
- Differential Pressure Sensor: Monitors the pressure difference across the filter media and triggers the cleaning cycle when the pressure reaches a predetermined threshold.
- Control Unit: Manages the operation of the self-cleaning filter, including monitoring the differential pressure, initiating the cleaning cycle, and resuming normal filtration.
- Waste Outlet: The outlet through which dislodged contaminants are expelled during the cleaning cycle.
Technical Specifications
Brush-type self-cleaning filters come with various technical specifications tailored to meet different application requirements. Here are some key specifications:
- Filtration Efficiency: Available in different micron ratings, typically ranging from 10 to 500 microns, to capture various sizes of contaminants.
- Flow Rate: Designed to handle a wide range of flow rates, from a few liters per minute to several thousand liters per minute, depending on the system requirements.
- Pressure Rating: Built to withstand high pressures, with pressure ratings often exceeding 10 bar (145 psi) and up to several hundred bar for specialized applications.
- Temperature Range: Designed to operate in a wide range of temperatures, from sub-zero conditions to high-temperature environments, ensuring reliability in various settings.
- Cleaning Cycle Duration: The duration of the cleaning cycle can vary depending on the filter design and operating conditions, typically ranging from a few seconds to a few minutes.
- Material Compatibility: Available in various materials to suit different fluid types, including stainless steel, carbon steel, and specialized alloys for corrosive environments.
Application Fields
Brush-type self-cleaning filters are versatile and used in a wide range of applications across different industries. Here are some common application fields:
- Water Treatment: Used to remove contaminants from raw water, ensuring clean and safe water for municipal, industrial, and agricultural use.
- Oil and Gas: Essential for protecting equipment and ensuring the purity of fluids in upstream, midstream, and downstream operations.
- Chemical Processing: Used to maintain the purity of chemicals, protect equipment, and ensure the quality of end products.
- Food and Beverage: Ensures the removal of impurities from liquids used in the production process, maintaining product quality and safety.
- Pharmaceutical: Critical for maintaining the purity of fluids used in the production of pharmaceuticals, ensuring compliance with stringent quality standards.
- Pulp and Paper: Used to remove contaminants from process water and other fluids, protecting equipment and improving product quality.
- Automotive: Ensures the purity of fluids used in manufacturing processes, protecting equipment and ensuring the quality of end products.
- Power Generation: Used to remove contaminants from cooling water, fuel, and other fluids, protecting equipment and maintaining efficiency.
Conclusion
Brush-type self-cleaning filters are an innovative and efficient solution for maintaining the purity of liquids in various industrial applications. By automating the cleaning process, these filters reduce maintenance requirements, minimize downtime, and ensure continuous operation. With their advanced design, high efficiency, and versatility, brush-type self-cleaning filters are an ideal choice for industries that require reliable and uninterrupted filtration.
Investing in high-quality brush-type self-cleaning filters and adhering to regular maintenance schedules can significantly reduce operational costs, prevent equipment damage, and ensure the consistent delivery of clean and pure fluids. As industries continue to seek more efficient and reliable filtration solutions, the importance of self-cleaning filters cannot be overstated.
