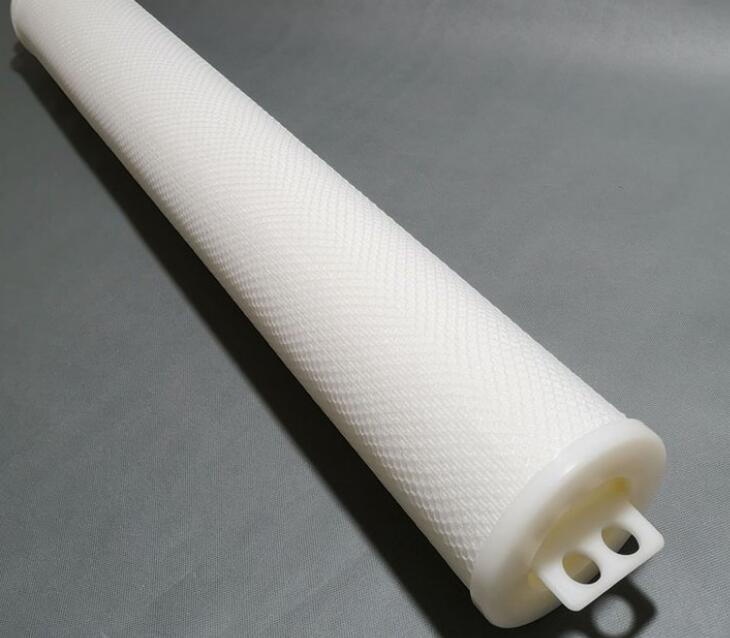

The high-flow filter element is a common filter element that uses polypropylene fiber as the depth filter material, has a large diameter of 6″ (152M), opens from one side, and has no central support frame. The main body of the filter element is mainly in two forms: melt-blown and pleated. The end cap is made of glass fiber reinforced polypropylene and is fixed to the filter layer using hot melt welding technology without any adhesive.
In what fields are large flow filter elements mainly used?
In the petrochemical industry, it can be used for the filtration of various solvents and brine; in power plants, it is generally used as filter source for iron removal filters, condensate water filter sources, stator cooling water, etc.; in the general industrial field, it is used in various processes It can be used in the treatment of fluids, process water, condensate water, and waste water: it is even used in industrial water in the food industry.
Large-scale equipment is imported, and the original filter elements are generally expensive. After the original filter elements are used up, most users want to use replacement filter elements that are cheap and easy to supply. Therefore, the use of filter element replacement products has some inevitability.
Solid particle pollution has a great harmful effect on the system. When the content of particle pollutants is lower than the target cleanliness of the system, the system can operate normally and well.
When the content of particulate pollutants is higher than the target cleanliness of the system, the system’s working performance, working reliability and working life will be affected. Due to external intrusion and internal generation, the system will inevitably add new particles during operation. particulate pollutants.
Therefore, the system must continuously remove particulate pollutants to ensure the realization of the system’s target cleanliness. The high-flow filter element in the filter completes the pollutant removal function.
Horizontal pleated design and technology: As the core filter unit of the high-flow filter system, the high-flow filter element uses horizontal reduction technology to maximize the area of the filter media in a limited space. At the same time, the pleating technology can ensure that When fluid passes through the filter element, fluid passes through every unit area of the filter media to ensure that the filter media area is completely converted into an effective filter area.
The flux of the high-flow filter element is more than 20 times that of the traditional small pleated filter element. The external and internal flow directions are smooth, and the inner diameter of the filter element is 3 inches, so the flow rate of a single 40-inch high-flow filter element can reach 110 tons/hour.
Absolute filtration accuracy: The high-flow filter element claims an accuracy and filtration efficiency of 99.9% at 5 microns. During testing, the 5-micron filtration efficiency of the high-flow filter was greater than 99.9%, while the filtration efficiency of 3-micron particles also exceeded 99.5%.
Ultra-long life high flow filter element, compared to traditional filter elements, has high filtration efficiency and high impurity retention capacity. Contaminant retention capacity and service life often fail to find the right balance, that is, if a product’s filtration efficiency is high, its dirt absorption capacity and service life may be short, and vice versa.
The filtration precision range is relatively wide, and the large flow filter element can be selected from 0.1 micron to 100 micron.
The pleated filter element is made of glass fiber and polypropylene without adding any adhesive, which greatly reduces the probability of leachables from the filter column itself.
The high-flow filter element has very good chemical compatibility and is resistant to strong acids and strong alkali. It can be used for the filtration of most organic solvents and the filtration of strong acid and alkali chemicals. The high-flow filter element has a very good dirt-holding capacity and is resistant to particulate matter. The interception efficiency is very high.
There should be no other harmful gases or corrosive media in the warehouse where the large flow filter element is stored. The products should be placed reasonably. In addition, appropriate temperature control should be ensured. The large flow filter element should try to keep an eye on changes in the warehouse, and a thermometer can be installed. Or a hygrometer. When the color of the filter element becomes darker, it is because the filter element filters too many impurities and bacteria and accumulates at the filter element for too long, causing contamination of the filter. This is also telling us The filter element needs to be replaced.
You can see many types of filters available in the market. But keep in mind that different filters have different capabilities. Other filters though have some limitations to some
