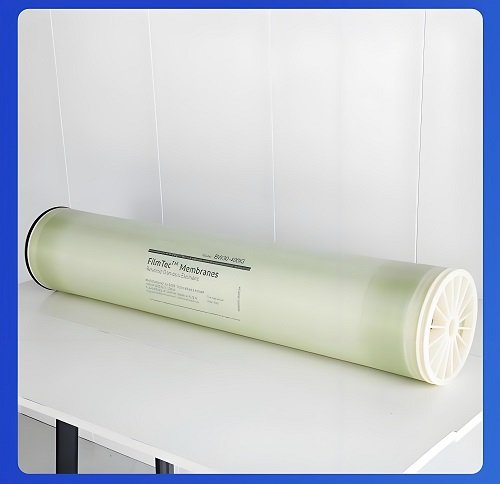

Reverse Osmosis Membrane BW30-400: High-Performance Solution for Brackish Water Treatment

Product Introduction

The BW30-400 reverse osmosis (RO) membrane is a leading filtration solution designed for brackish water treatment, renowned for its exceptional salt rejection and high water productivity. Manufactured by Dow Water & Process Solutions (now part of DuPont), this membrane belongs to the FilmTec™ series, leveraging aromatic polyamide thin-film composite (TFC) technology to achieve >99.5% salt rejection while maintaining a high flow rate of approximately 10,000 gallons per day (37.8 m³/d). Ideal for municipal water supply, industrial process water, and desalination pre-treatment, the BW30-400 balances efficiency with durability, making it a standard in water purification systems worldwide.

Working Principle

Reverse Osmosis Fundamentals
The BW30-400 operates on the principle of reverse osmosis, where pressure greater than the osmotic pressure drives water through a semi-permeable membrane, leaving salts and contaminants behind. Key mechanisms include:
- Semi-Permeable Barrier: The polyamide active layer allows water molecules to pass while rejecting ions, colloids, and organic matter.
- Hydraulic Pressure Drive: Typical operating pressure ranges from 150–400 psi (1.0–2.8 MPa), forcing water through the membrane against the natural osmotic gradient.
- Selective Rejection: The membrane’s nano-porous structure (pore size <0.0001 microns) rejects dissolved solids (e.g., NaCl, Ca²⁺, Mg²⁺) through size exclusion and charge repulsion.
Thin-Film Composite Technology
- Active Layer: A cross-linked polyamide layer provides high salt rejection and chemical resistance.
- Support Layer: A microporous polysulfone layer offers structural integrity.
- Feed Spacer: A mesh spacer between membranes maintains flow channel turbulence, reducing concentration polarization.
Operating Parameters
- pH Range: Effective between 2–11, with short-term tolerance up to pH 12 for cleaning.
- Temperature Limit: Optimal performance at 25°C, with maximum allowable temperature of 45°C.
- Chlorine Tolerance: Sensitive to free chlorine (<0.1 ppm), requiring pre-treatment with activated carbon or sodium bisulfite.

Structural Design and Components

Spiral-Wound Module Design
- Membrane Leaf Structure: Multiple membrane “leaves” are wound around a perforated central collection tube, forming a cylindrical element:
  - Feed Channel: Water flows axially through the spacer, contacting the membrane surface.
  - Permeate Channel: Purified water spirals into the central tube for collection.
- Dimensions: 8-inch diameter x 40-inch length (203 mm x 1016 mm), with 400 ft² (37.2 m²) effective membrane area.
Material Engineering
- Polyamide Active Layer: Cross-linked via interfacial polymerization, providing high salt rejection and resistance to organic fouling.
- Glass-Fiber Reinforced Polyester (GRP) Housing: Encases the membrane element, with pressure ratings up to 600 psi (4.1 MPa).
Anti-Fouling Features
- Hydrophilic Surface: Reduces adsorption of organic matter and colloids.
- Tight Pore Structure: Minimizes bacterial adhesion, supporting long-term performance.

Application Scenarios

Municipal Water Treatment
- Drinking Water Production: In cities with brackish groundwater, the BW30-400 reduces total dissolved solids (TDS) from 1,000 ppm to <50 ppm, meeting WHO drinking water standards. A case study in Arizona showed the membrane reduced arsenic from 50 ppb to <10 ppb, exceeding EPA limits.
Industrial Process Water
- Boiler Feed Water: In power plants, the membrane removes silica (<1 ppm) and dissolved salts, preventing boiler scaling and extending equipment life by 50%.
- Semiconductor Manufacturing: Produces ultra-pure water (UPW) with conductivity <0.1 μS/cm, critical for wafer cleaning in chip fabrication.
Desalination Pre-Treatment
- Seawater Reverse Osmosis (SWRO) Pre-Filtration: Used ahead of seawater membranes, the BW30-400 reduces turbidity to <0.2 NTU, protecting downstream SWRO elements from fouling and reducing energy consumption by 15%.

Technical Advantages

Exceptional Salt Rejection
- Achieves >99.5% rejection of NaCl, with >99% rejection of divalent ions (Ca²⁺, Mg²⁺), outperforming conventional cellulose acetate membranes by 5–10%.
High Water Productivity
- Delivers 10,000 gpd (37.8 m³/d) at 200 psi (1.4 MPa), 20% higher flow than older-generation membranes, enabling smaller system footprints.
Chemical Resistance
- Tolerates wide pH ranges and common cleaning agents (citric acid, sodium hydroxide), supporting effective membrane recovery from fouling.
Long Service Life
- With proper pre-treatment, the membrane can operate for 3–5 years, reducing replacement costs by 30% compared to lower-performance membranes.

Maintenance and Operation Considerations

Pre-Treatment Requirements
- Particle Filtration: 5-micron cartridge filters remove suspended solids to prevent membrane abrasion.
- Chlorine Removal: Activated carbon or sodium bisulfite reduces free chlorine to <0.1 ppm to avoid polyamide oxidation.
- Scale Control: Anti-scalants (e.g., polyphosphates) prevent calcium carbonate or sulfate precipitation at high recovery rates.
Routine Cleaning Protocols
- Physical Cleaning: Periodic backwashing with permeate water reduces surface fouling.
- Chemical Cleaning:
  - Organic Fouling: 2–4% citric acid at pH 3–4 for 60 minutes.
  - Inorganic Scaling: 1–2% sodium hydroxide with EDTA at pH 10–11 for 90 minutes.
- Frequency: Every 3–6 months, or when pressure drop increases by 15% or flow decreases by 10%.
Operational Best Practices
- Recovery Control: Maintain <85% recovery for brackish water to prevent concentrate scaling.
- Temperature Monitoring: Adjust pressure with temperature changes (1% flow decrease per 1°C drop) to maintain productivity.

Conclusion

The BW30-400 reverse osmosis membrane sets the standard for brackish water treatment, combining high salt rejection, water productivity, and chemical resistance in a durable design. Its spiral-wound architecture and thin-film composite technology make it indispensable in municipal, industrial, and desalination applications where reliable, high-purity water is non-negotiable. As water scarcity intensifies, advancements in membrane technology—such as improved anti-fouling coatings and energy-efficient designs—will further enhance the BW30-400’s role in sustainable water management, ensuring access to clean water for communities and industries worldwide.

If you are interested in this product or have any questions, please feel free to contact us at any time.
